TF-103842.1 & TF-103842.2

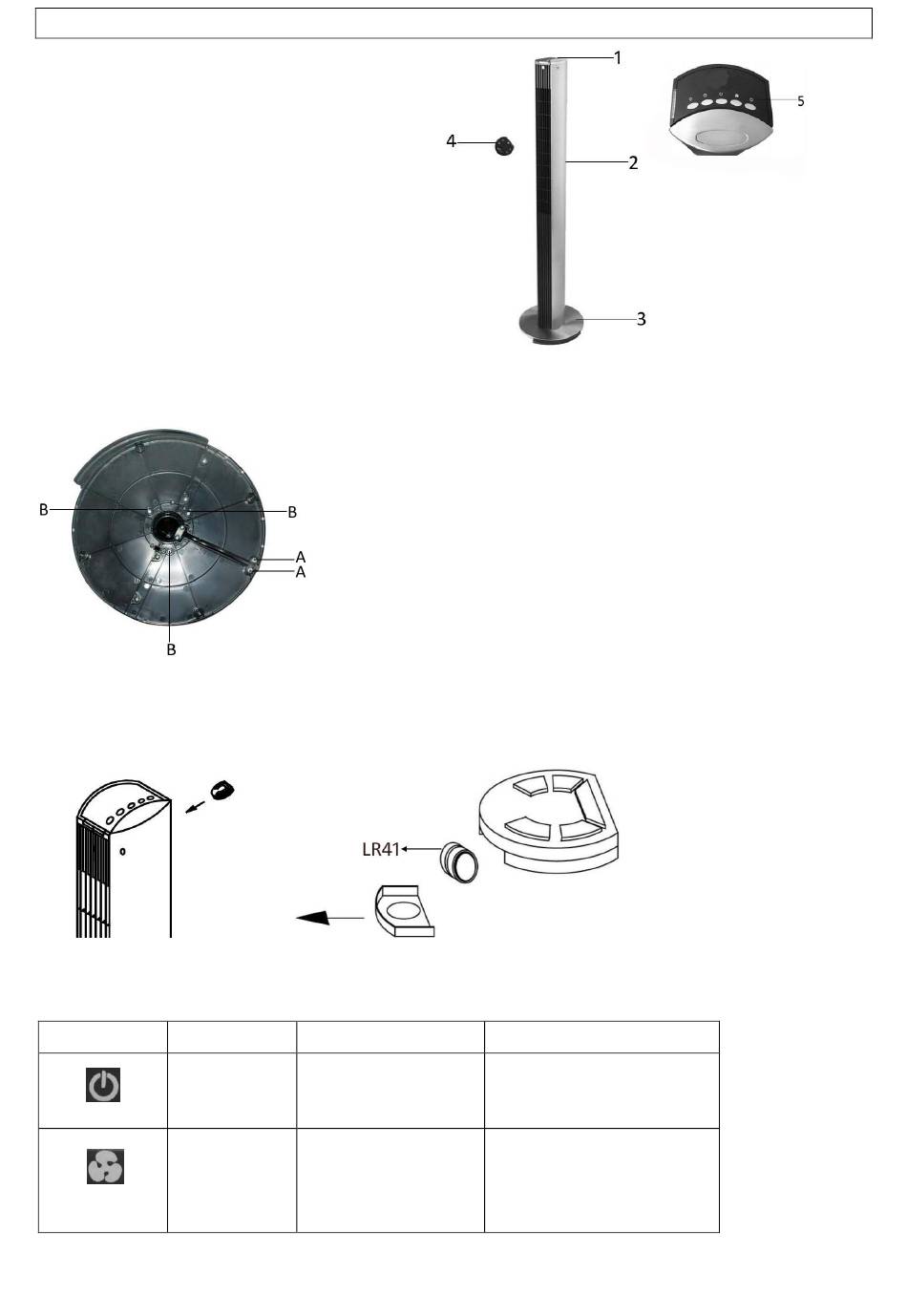

PARTS OF DESCRIPTION
1. Control panel
2. Fan body
3. Base
4. Remote control
5. Switches
ASSEMBLING
1. Put the power cord through the hole of the base and make sure it will be fitted well into the slot. Then use
the two screws (A) to connect the cord clip to the base.
2. Use the provided screws (B) to assemble the main body onto the base.
REMOTE CONTROL
The remote control can be extracted from the remote control storage at top rear of fan body as below.
Battery size: two pieces of LR41
Button Function (With LED indicator)
Symbol Switch
Power
Speed
Indicator
On-Green
Off-Light Off
Low speed-Red
Medium
speed-Orange
High speed-Green
Function
To start or stop the fan
To adjust the speed level:
low/ medium/ high
