P A B X

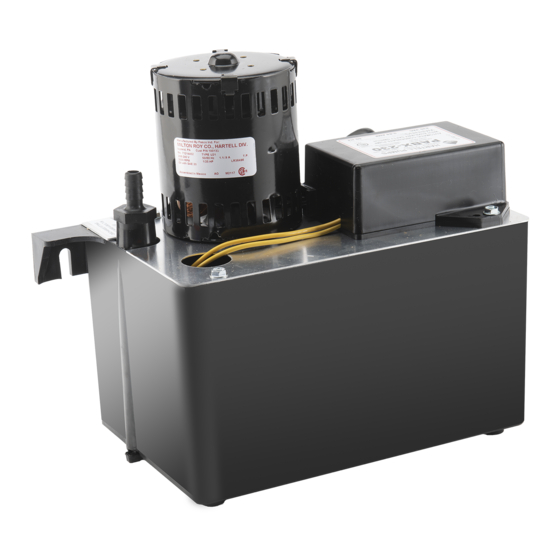

Light Commercial Condensate Removal Pumps
INTRODUCTION
HARTELL condensate pumps are designed to collect and automatically remove the water produced from an air
conditioner evaporative coil and/or a gas-condensing furnace. This pump has been carefully engineered to
provide long, trouble free service and is of the highest quality workmanship and materials.
These pumps have been thoroughly inspected and tested, then carefully packaged to insure safe delivery and
Operation. When you receive your pump, examine it carefully to determine that there are no damaged or
broken parts. If damage is detected, notify the distributor where the pump was purchased from. They will assist
with a repair or replacement. See the precautions listed below before continuing.
CAUTION: READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
Pump should only be used with liquids compatible with pump component materials. Do not use to pump
–
flammable or explosive fluids. Do not use in explosive atmospheres.
–
The pump is supplied with a grounding type plug. To reduce the risk of electrical shock be certain that it
is connected to a properly grounded, grounding receptacle.
–
In any installation where property damage and/or personal injury might result from an inoperative or
leaking pump due to power outages, discharge line blockage, or any other reason, a backup system(s)
(aux. switch) and/or alarm should be used.
Do not handle pump with wet hands or when standing on a wet or damp surface, or in water.
–
Shut off the electrical power at the fuse box before making any connections. All wiring must comply with
–
local codes.
HARTELL PABX condensate pumps are guaranteed to be free from defects in workmanship or materials
and to function satisfactorily, when properly installed, for a period of ONE (1) year from date of installation.
See our website for additional warranty information at www.hartell.com.
This guarantee does not apply if the product has been misapplied or mechanically damaged, HARTELL
assumes no liability for resultant damages of any kind arising out of the use of its products.
Literature # 900951 2019
I N S T A L L A T I O N
O P E R A T I O N
M A I N T E N A N C E
ONE YEAR LIMITED WARRANTY
100 East Graham Place
Burbank, CA 91502
Email: www.hartell.com
Web: info@hartell.com
Advertisement
Table of Contents
Related Manuals for Hartell Pumps PABX
Summary of Contents for Hartell Pumps PABX
- Page 1 ONE YEAR LIMITED WARRANTY HARTELL PABX condensate pumps are guaranteed to be free from defects in workmanship or materials and to function satisfactorily, when properly installed, for a period of ONE (1) year from date of installation. See our website for additional warranty information at www.hartell.com.
- Page 2 INSTALLATION Carefully unpack the pump and select a mounting location on the wall, the case of the air conditioner, or floor. The pump must be level and the inlet must be below the lowest drain, either coil or furnace. If wall or case mounting, use the mounting tabs on either side of the reservoir to secure the pump.
- Page 3 MAINTENANCE Visually inspect this pump seasonally to ensure there is no buildup of any kind inside the unit. If any problems develop, or a buildup is seen during visual inspection, the following guidelines can help to return the pump to service.
