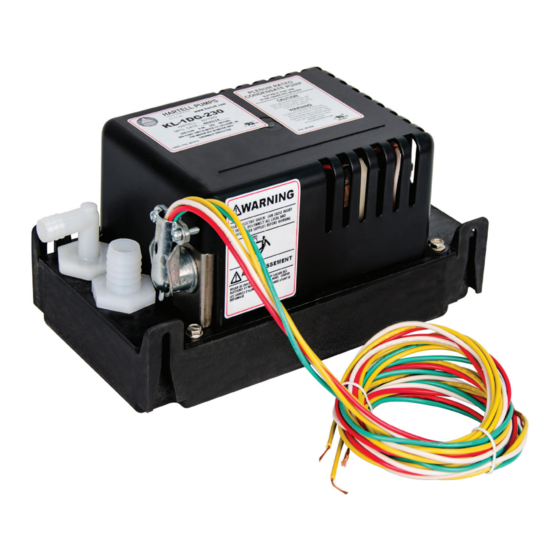

- Page 1 ™ lenum Commercial Grade Condensate Removal Pumps (KL-1DG-115, KL-1DG-230 and KL-1DG-277) IOM Manual Manual No. : 52200 Rev. Rev. Date 2019...
- Page 2 ONE YEAR LIMITED WARRANTY HARTELL KL-1DG-115, KL-1DG-230 and KL-1DG-277 series condensate pump is guaranteed to be free from defects in workmanship or materials and to function satisfactorily, when properly installed. See our website for additional warranty information at www.hartell.com. This guarantee does not apply if the product has been misapplied or mechanically damaged, HARTELL assumes no liability for resultant damages of any kind arising out of the use of its products.
- Page 3 SECTION 1 - INTRODUCTION HARTELL condensate pumps are designed 4 Do not handle pump with wet hands or when to collect and automatically remove the water standing on a wet or damp surface, or in produced from an air conditioner evaporative water.
- Page 4 SECTION 2 - INSTALLATION AND OPERATION 2.1 INSTALLATION 2.1.1 Piping Run flexible tubing or pipe from the evaporator and Carefully unpack the pump and select a mounting furnace to the pump. Connect to either inlet barbed location in the Plenum area (see Figure 1). The fitting.
- Page 5 SECTION 2 - INSTALLATION AND OPERATION 2.2 OPERATION 2.1.2 Electrical Connections After proper installation, the operation of the NOTE: Review precautions in Section 1. HARTELL condensate pump is automatic. Water is collected in the reservoir and pumped out when 2.1.3 Line Voltage the float raises to a pre-set point.
- Page 6 SECTION 3 - MAINTENANCE 3.2 PUMP MOTOR RUNS WITH Visually inspect this pump seasonally to ensure NO DISCHARGE there is no buildup of any kind inside the unit. If any problems develop, or a buildup is seen during 1 Inspect the discharge tubing for its full length to visual inspection, the following guidelines can help make sure it is clear;...
