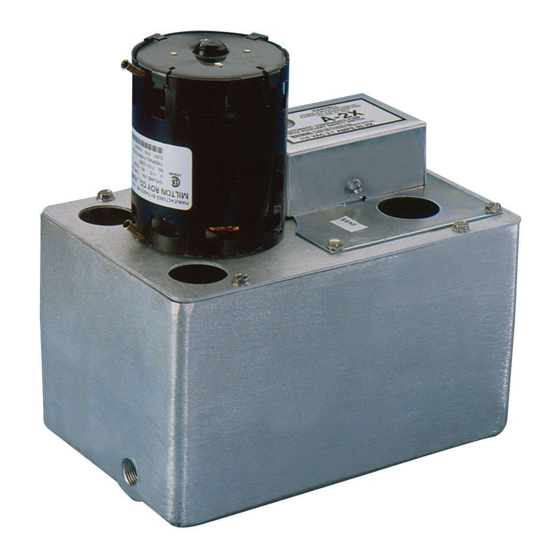

A2/A2SA/AL2
Commercial Grade Condensate Removal Pumps
INTRODUCTION
HARTELL condensate pumps are designed to collect and automatically remove the water produced
from an air conditioner evaporative coil and/or a gas-condensing furnace. This pump has been
carefully engineered to provide long, trouble free service and is of the highest quality workmanship
and materials.
These pumps have been thoroughly inspected and tested, then carefully packaged to insure safe
delivery and operation. When you receive your pump, examine it carefully to determine that there
are no damaged or broken parts. If damage is detected, notify the firm from where the pump was
purchased. They will assist with a repair or replacement.
See the precautions listed below before continuing
CAUTION: READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
- Pump should only be used with liquids compatible with pump component materials. Do not use to pump flammable or
explosive fluids. Do not use in explosive atmospheres.
- The pump is designed for grounded installation. To reduce the risk of electrical shock be certain that it is connected to a
properly grounded, grounding receptacle.
- In any installation where property damage and/or personal injury might result from an inoperative or leaking pump
due to power outages, discharge line blockage, or any other reason, a back up system(s) (aux. switch) and/or alarm
should be used.
- Do not handle pump with wet hands or when standing on a wet or damp surface, or in water.
- Shut off the electrical power at the fuse box before making any connections. All wiring must comply with local codes.
HARTELL A2. A2SA and AL2 series condensate pumps are guaranteed to be free from defects in workmanship or
materials and to function satisfactorily, when properly installed, for a period of ONE (1) years from date of installation.
HARTELL will replace, without charge, any HARTELL product found to be defective upon examination at our factory if
returned within the guarantee period, transportation charges prepaid.
This guarantee does not apply if the product has been misapplied or mechanically damaged, HARTELL assumes no
liability for resultant damages of any kind arising out of the use of its products.
Literature # 900040 2019
I N S T A L L A T I O N
O
P
E
R
A
T
M A I N T E N A N C E
.
ONE YEAR LIMITED WARRANTY
100 East Graham Place
Burbank, CA 91502
Web: www.hartell.com
Email: info@hartell.com
I
O
N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hartell Pumps A2
Summary of Contents for Hartell Pumps A2
- Page 1 ONE YEAR LIMITED WARRANTY HARTELL A2. A2SA and AL2 series condensate pumps are guaranteed to be free from defects in workmanship or materials and to function satisfactorily, when properly installed, for a period of ONE (1) years from date of installation.
- Page 2 INSTALLATION Carefully unpack the pump and select a location on the floor. The pump must be level and the inlet must be below the lowest drain, either coil or furnace. Remove and discard the shipping pin that is located in the side of the switch cover box.
- Page 3 MAINTENANCE In normal applications, this pump requires no scheduled maintenance for efficient operation. However, to extend motor bearing life it is recommended that they be oiled every six months with S.A.E. 20. If a problem develops, the following guidelines can help to return the pump to service. PUMP DOES NOT RUN - Check to see that the power to the system (air conditioner and/or furnace) is on to allow production of condensate.
