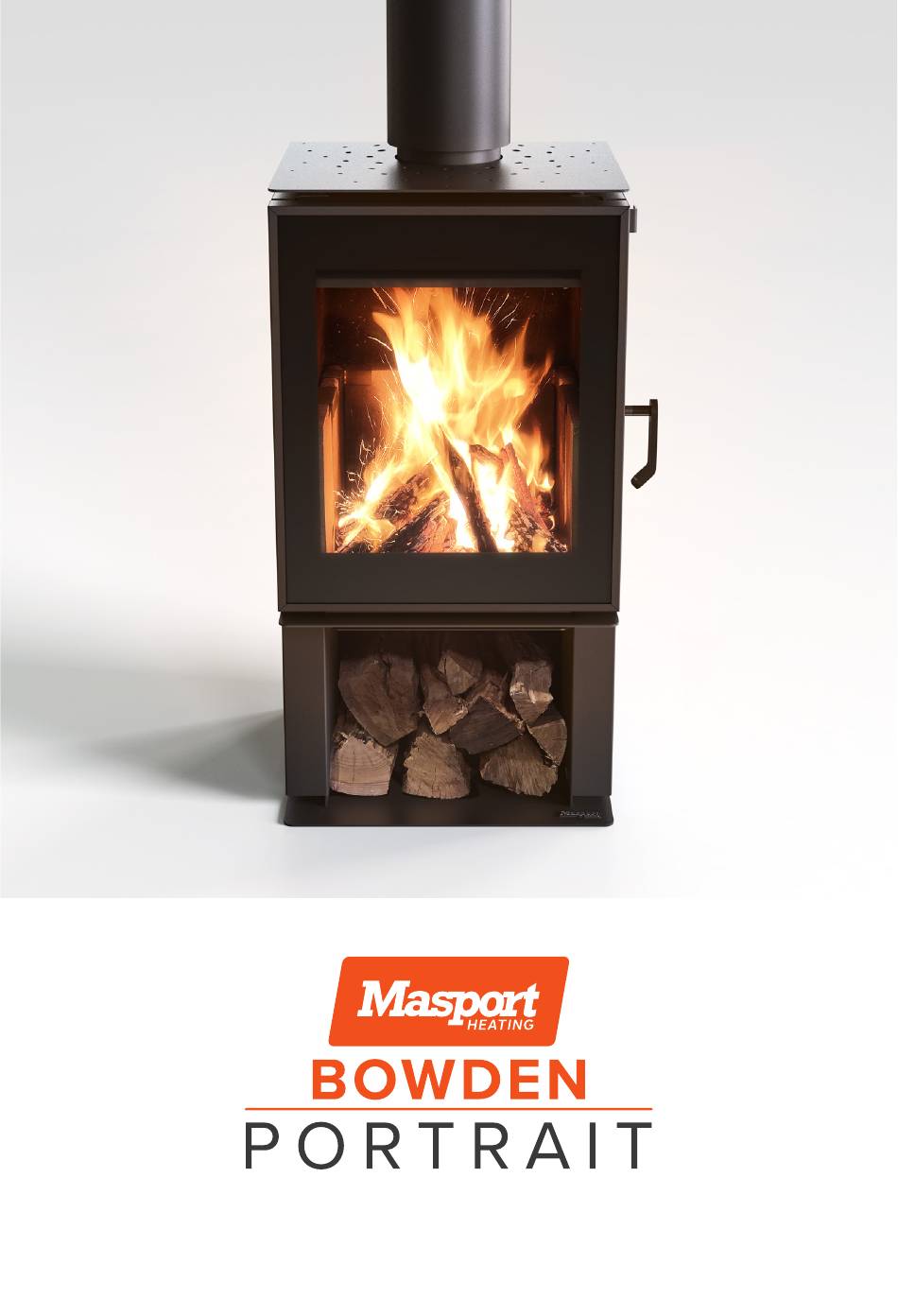

  • Page 1 OPERATING INSTRUCTIONS...
  • Page 2 Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA. MBPT400 (BOWDEN PORTRAIT) VERSION 1.0...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS USER INSTRUCTIONS MAINTENANCE AND SERVICING Introduction ........Replacement of Fire Bricks .

  • Page 4: User Instructions

    1.1. AIR CONTROLS USER INSTRUCTIONS The Masport Bowden range of wood heaters feature a single air control system. It is designed to introduce oxygen into the base of the fire, controlling the rate of INTRODUCTION combustion of the wood. In addition, oxygen is drawn into the upper firebox where combustion of the gases occurs.

  • Page 5: Wood Storage Compartment

    1.3. WOOD STORAGE COMPARTMENT LIGHTING THE FIRE Warning: the Masport Bowden Portrait features a storage Place firelighters or paper and dry kindling wood in area for a small amount of firewood. Do not overload this the base of the firebox.

  • Page 6: Low Heat Output

    5.2. LOW HEAT OUTPUT BURNING TIPS The heat output of the appliance can be reduced by 6.1. FUEL QUALITY closing the air slide which will restrict the oxygen supplied Use wood with a moisture content of less than 20%. Logs to the fire and slow down the rate at which the wood should not feel moist or damp, or have moss and fungal burns.

  • Page 7: Ash Removal

    • Outside temperature and weather conditions CLEANING THE FLUE Check inside of flue prior to each season for any build-up • Blocked flue of creosote (wood tar). To do this: For advice on the correction of persistent flue problems First remove the baffle (refer to “2. Replacement consult your supplier/installer.

  • Page 8: Troubleshooting Tips

    TROUBLESHOOTING TIPS 11.1. GLASS IN DOOR BLACKENING This can have several possible causes: • Burning unseasoned wood — if the wood is too wet, it will cause the glass to blacken. • Appliance operated at low temperature — after an overnight burn where the air slide control has been fully closed, the glass may have blackened.

  • Page 9: Maintenance And Servicing

    MAINTENANCE AND SERVICING REPLACEMENT OF FIRE BRICKS The purpose of the firebricks in the appliance is to increase thermal mass and to guarantee the longevity of the steel firebox. Over time the firebricks may become cracked and crumble away. If so, they should be replaced. To replace the firebricks: Move any ash away from the bricks.

  • Page 10: Removing The Door

    REMOVING THE DOOR ADJUSTING THE DOOR HINGE To remove the door: Over time the screws securing the door hinge plate to the heater may loosen resulting in the door dropping, i.e. Open the door all the way. visually appears on slight angle and no longer perfectly horizontal.

  • Page 11: Adjusting The Door Latch

    ADJUSTING THE DOOR LATCH Over time, the door seal can become compressed, resulting in a less than adequate seal between the door and the front edge of the firebox. For example, if the wood burns unusually fast even with the air slide shut, it may mean that there is an air leak around the door.

  • Page 12: Fitting A New Door Seal

    FITTING A NEW DOOR SEAL Carefully turn the door over so the frame is resting on the bench. Pulling the four glass retainers This task may be easier with the door removed from the outwards to remove. appliance and laid horizontally on a work-bench. Remove any old seal from the door.

  • Page 13: Replacement Spare Parts List

    REPLACEMENT SPARE PARTS LIST PART DETAIL Fire Bricks 4 @ 270 x 203 x 25mm 2 @ 270 x 100 x 25mm 3 X stainless brick retainer Brick Retainers straight, 2 X corner 365mm x 278mm x 25mm Baffle Plate Kit vermiculite, matching front and rear retainers Door Seal...

  • Page 14: Warranty

    Any electrical work has not been carried out by a This warranty is provided to the first domestic purchaser Registered Electrician; of a Masport wood fire (radiant or convection). It applies from the date of purchase from or through an authorized •...
  • Page 15 How to obtain warranty service? • Warranty Claims must be made at place of purchase. • Reasonable proof of purchase date is required to make a warranty claim. You should keep your purchase receipt. • Warranty repair will be completed according to normal work practices of the service agent.
  • Page 16 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 556 816 | F: 1800 058 900 General and Sales Enquiries: flame@glendimplex.com.au Technical Service: service@glendimplex.com.au www.glendimplex.com.au...
