Electrical Connections - Delphi DVDM-800 Installation Manual

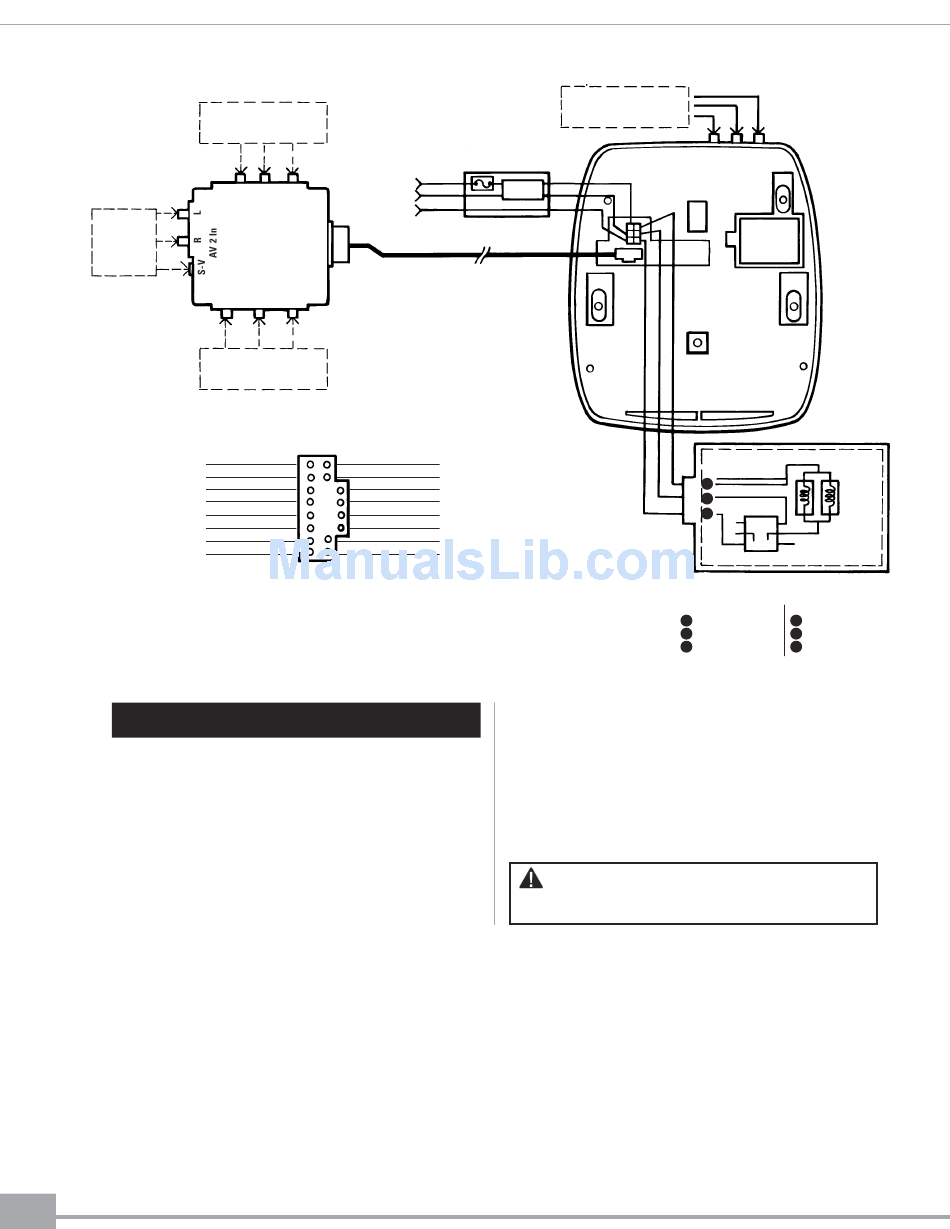

Figure 3.
External
Audio/Video
Input Device

ELECTRICAL CONNECTIONS

1. Connect the power cable and A/V components
to the appropriate vehicle electrical connections
(Figure 3):
a. Insert the 16-pin mini-DIN connector into
the mini-DIN connector on the back of the
system.
b. Route A/V lead through vehicle, avoiding
sharp edges and rub points, to location of
A/V input/output box.
6
External Audio/Video
Input Device
Yellow/Battery
L R V
Black/Ground
AV In
RVDC/Acc
AV Out
V R L
External Audio/Video
Display Device
Video 1 In 16 1 S Video In C
Gnd 15 2 Gnd
Video Out 14 3 Gnd
Gnd 13 4 S Video in Y
Audio L Out 12 5 Gnd
Audio R Out 11 6 Gnd
Audio 2 L In 10 7 Audio 1 L In
Audio 2 R In 9 8 Audio 1 R In
External Audio/Video
Input Device
Power/Harness
16 Pin Line
2. Connect the supplied power cable to the vehicle
electrical system, tapping into an accessory
hot line, constant battery line, and ground.
3. Verify that all system functions operate
properly before final mounting. Refer to the
Delphi Mobile Video DVDM-800 User Manual
for detailed operating information.
Warning: Failure to properly follow these instructions
could result in damage to the vehicle, its electronic system,
other property, or personal injury and/or death.
FM
Transmitter
1
3
2
POSITIVE/NEGATIVE SYSTEM
POSITIVE SYSTEM NEGATIVE SYSTEM
1 1
Purple/Ground Purple/12V
2 Blue/12V 2 Blue/Ground
3 Green/Door Trigger 3 Green/Door Trigger
