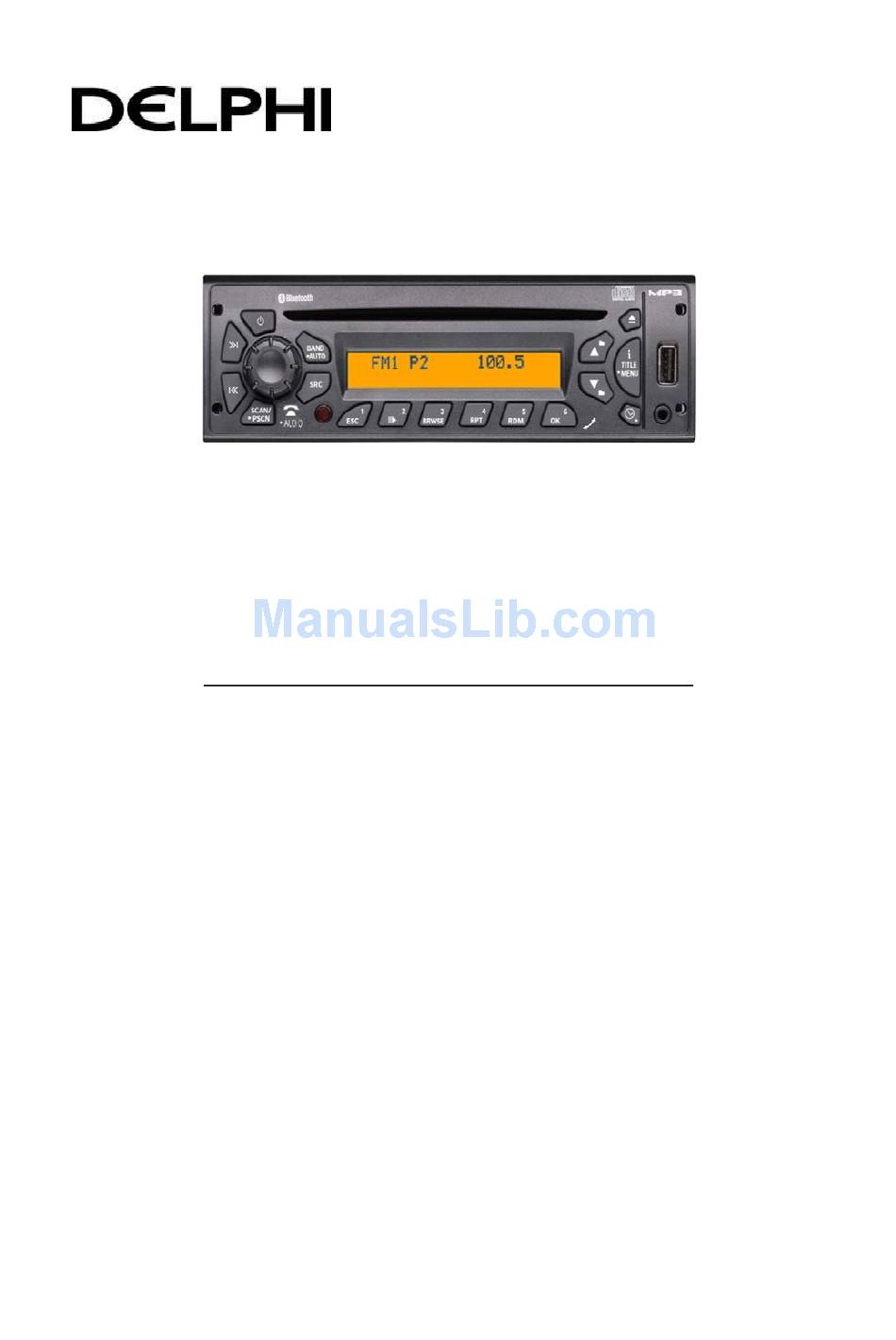

- Page 1 Commercial Vehicle Systems ® Radio Ready Receiver with Bluetooth Delphi Part No. 28315188 Amber Display 28315190 Green Display 28315192 Red Display ® ® CD/MP3/USB/iPod /Aux/Bluetooth /Receiver Owner’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS In this manual you will find out how to operate the receiver included in your vehicle and information about optional equipment that can be purchased to enhance your audio system. TABLE OF CONTENTS................................. 1 INTRODUCTION ................................... - Page 3 Playing a Compact Disc ............................13 Button Functions ............................... 14 Playing an MP3/WMA Disc or USB .......................... 14 Root Directory ................................14 Empty Directory or Folder ............................14 No Folder .................................. 14 File Name Display ..............................14 ...
-
Page 4: Introduction
INTRODUCTION Your Delphi Receiver has been designed to operate easily and give you years of listening pleasure. To get the most enjoyment out of your receiver, read this manual and acquaint yourself with the receiver before you use it. Find out what it can do and how to operate all of its controls. By doing so you can be sure you are getting the most out of the advanced technology that has been designed into the unit. -
Page 5: Vehicle Damage Warnings
NOTE: Other manuals may use NOTICE differently. OPERATING INSTRUCTIONS To learn how to get the most from your Delphi receiver, read all of the instructions that follow. Using the Clock Your clock can function in a 12-hour or 24-hour mode. The 12-hour mode distinguishes between AM and PM. -
Page 6: Turning The Alarm Off
1. With the Radio on, press and hold the “i Title/Menu” button for more than 2 seconds until the Menu appears. This indicates you are in the menu mode. 2. Rotate the /AUDIO knob or press the up/down buttons to change to SET ALARM. Press the OK button to enter the alarm submenu. -
Page 7: Turning The Receiver On
Turning the Receiver On With the ignition on, the receiver can be turned on and off by pressing the button. One-Hour Timer With the ignition off, pressing the button will turn on the receiver and activate the receiver’s one-hour timer. The receiver will turn off after one hour or by pressing the button. -
Page 8: Aux Input Displays
NOTE: When an MP3 or WMA disc is inserted into the CD player, it will display CD READING until the first track is played. When a USB stick or an iPod is connected into the USB connector, it will display USB READING or iPod READING until the first track is played. -
Page 9: Phone Reconnection
® Use the DISCONNECT (see Using the Bluetooth Hands Free section) option from the Hands Free Menu and the Radio will attempt to disconnect with the current cell phone device, Phone Reconnection If a previously connected cell phone re-activates the connection with the Radio, the cell phone is turned on or the phone re-establishes signal, the Radio will display PHONE CONNECTED for 3 seconds. -
Page 10: Adjusting The Receiver Menu Settings
AUTO EQ: Rotate the /AUDIO knob clockwise and counterclockwise to cycle through auto EQ options from 1 to 7. Options are: Rock Country News Jazz Classical Manual To select the desired option, press the /AUDIO knob again. Adjusting the Receiver Menu Settings To adjust the Clock, Alarm, Advanced (Speakers, Seek Sensitivity &... -
Page 11: Setting The Presets
If you push either the button while the Radio is finding a station, the tuner will stop at the frequency tuned at the time you pressed the button. If SEEK doesn’t find a tunable station, the Radio will show “NO STATION FOUND” AUTO STORE: AUTO STORE temporarily stores the 6 strongest stations onto pushbuttons 1-6. -
Page 12: Using The Bluetooth Hands Free
PHONE FOUND. During this discoverable mode set your cell phone to add a Bluetooth device and look for the name “Delphi Radio”. Follow the instructions on your phone to add a connection. Use PIN number 0000 to connect to the Radio. When the cell phone has successfully added, the Radio ®... -
Page 13: Quick Dial
QUICK DIAL The Radio is capable of storing phone numbers into any of the six presets available. To save a phone number, you can select the contact using either the DIAL CONTACTS feature or the LAST CALLS feature, and when the desired contact phone number is displayed, press and hold any of the PRESETs until a roger beep will be heard, confirming the phone number has been saved. -
Page 14: Accepting A Call
Accepting a Call When an incoming call is received, the Radio will display the Name and Number of the cell phone and “<<”. To accept the call, press the OK button. Rejecting a Call When an incoming call is received, the Radio will display the Name and Number of the cell phone and “<<”. -
Page 15: Button Functions
Button Functions SEEK : Press for less than 2 seconds to forward to the next track. Press and hold the button to fast forward. When you release the button, the disc will begin to play. SEEK : Press for less than 2 seconds to go to the beginning of the current track. If pressed within the first 10 seconds of the track, the Radio goes to the previous track. -
Page 16: Mp3/Wma Additional Functions
be displayed. Play begins from the first track and continues sequentially through all tracks. After playing the last track of the last folder, play continues at the first track of the first folder or root directory. Insert a USB stick fully into the slot. USB READING will appear on the display, and the USB will begin playing. -
Page 17: Button Functions
the iPod last selected mode. After playing the last track of the iPod last selected mode, play stops and the Radio will display the iPod Menu. Button Functions SEEK : Press for less than 2 seconds to forward to the next track. Press and hold the same button to fast forward. -
Page 18: Optional Equipment
® Bluetooth Audio Note: ® Audio Bluetooth transmission has channel occupation limitations when used together with a ® Bluetooth Hands Free channel of the cell phone. In such cases, short audio mutes could exist. This is a technology limitation and it is not related to a Radio malfunction. In addition, make sure the cell phone device does not have low battery, as this can affect the ®... -
Page 19: Understanding Radio Reception
To help avoid hearing loss: • Adjust the volume control to the lowest setting. • Increase the volume slowly until you hear comfortably and clearly. Understanding Radio Reception FM stereo will give you better sound than AM, but FM signals will only reach between 10 FM STEREO: and 40 miles (16-65 km). -
Page 20: Regulatory Notices
REGULATORY NOTICES FCC Requirements Part 15 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 21 Information included in this owner’s manual was accurate at the time of publication. Delphi, however, reserves the right to make changes in product configuration and performance without prior notice. Please check with your dealer for details regarding changes that may have occurred since the time of printing.
