User Manual
DELPHI MOBILE VIDEO DVDM-800
INSTALLATION GUIDE
Professional Installation Recommended
Caution: Fragile, do not drop!
Important: This manual contains important safety and operating information. Please read and follow the instructions in this manual.
Failure to do so could result in personal injury, death, and/or damage to your DVDM-800 and/or to your vehicle.
Advertisement
Table of Contents
Related Manuals for Delphi DVDM-800
Summary of Contents for Delphi DVDM-800
-

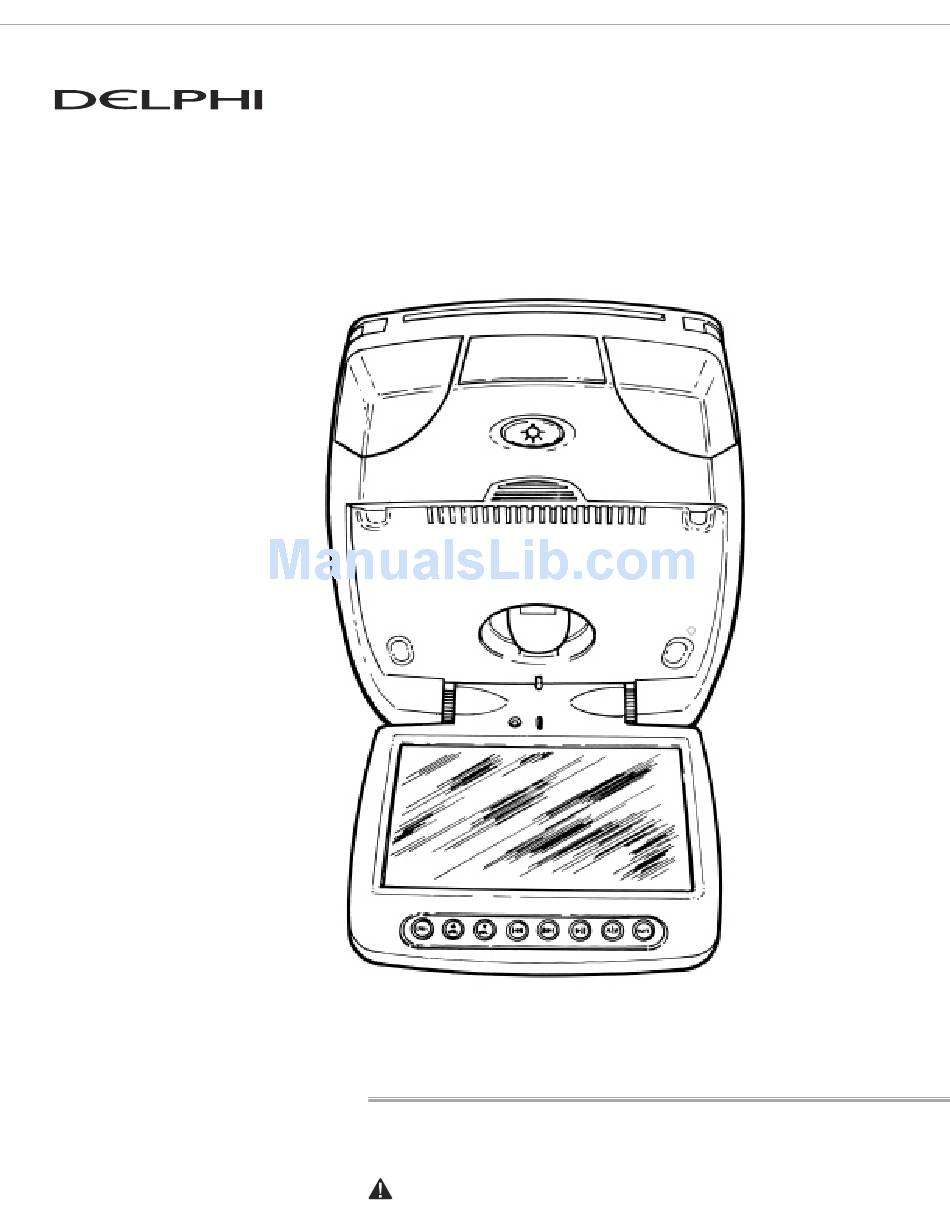

Page 1: Installation Guide
Caution: Fragile, do not drop! Important: This manual contains important safety and operating information. Please read and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or damage to your DVDM-800 and/or to your vehicle. -
Page 2: Table Of Contents
CONTENTS DVDM-800 ......3 Installation Overview ....4 Mounting DVDM-800 . -
Page 3: System Accessories
MV10016-11B1 (Neutral, 3-year warranty) (factory installed) Note: Installation materials sold separately include a shroud for a professional fit. Delphi highly recommends that you contact a professional to ensure proper installation. To locate a professional installer in your area, contact your retailer. -
Page 4: Installation Overview
INSTALLATION OVERVIEW Generally, it is best to install the DVDM-800 unit in place of the vehicle’s dome light. For vehicles with factory-installed overhead consoles in the headliner, consult the console manufacturer for complete installation instructions. Professional installation is recommended. The exact method for mounting the DVDM-800 unit will vary from vehicle to vehicle. - Page 5 Use of screw locking compound recommended. 7. If using the mounting bracket, secure it to the roof support cross-members. 8. Attach DVDM-800 (alone or as part of the shroud assembly). The bolts should contact the roof support cross-members directly with no gap between the bolt and the roof structure.
-
Page 6: Electrical Connections
Green/Door Trigger electrical system, tapping into an accessory hot line, constant battery line, and ground. properly before final mounting. Refer to the Delphi Mobile Video DVDM-800 User Manual for detailed operating information. Warning: Failure to properly follow these instructions NEGATIVE SYSTEM... -
Page 7: Connecting The Dome Lights
4. IR headphone function 5. A/V input/output functions 6. Wireless FM transmitter functions TROUBLESHOOTING If the Delphi Mobile Video unit does not appear to be functioning properly, please follow these troubleshooting guidelines: No power at the DVD system: 1. Verify 12V DC power at the power cable behind the video monitor. - Page 8 Delphi Corporation 1441 West Long Lake Road Troy, Michigan 48098-5090 U.S.A. Customer Service: [1] 877.GO DELPHI www.delphi.com ©2004 Delphi Corporation. All rights reserved. DPSS-04-E-027...
