Delphi SkyFi SA10000 Installation Manual page 7

Note: Do not cut the antenna cable and
attempt to splice it or attach alternative
connectors or cable. The cable and
connectors used in your SKYFi Home Kit
are specially chosen and attached at the
factory to ensure that they will work with
XM's unique frequency band. Use an XM-
approved extension kit (Delphi model
number SA10006) with your SKYFi system.
Failure to do so could damage the unit.

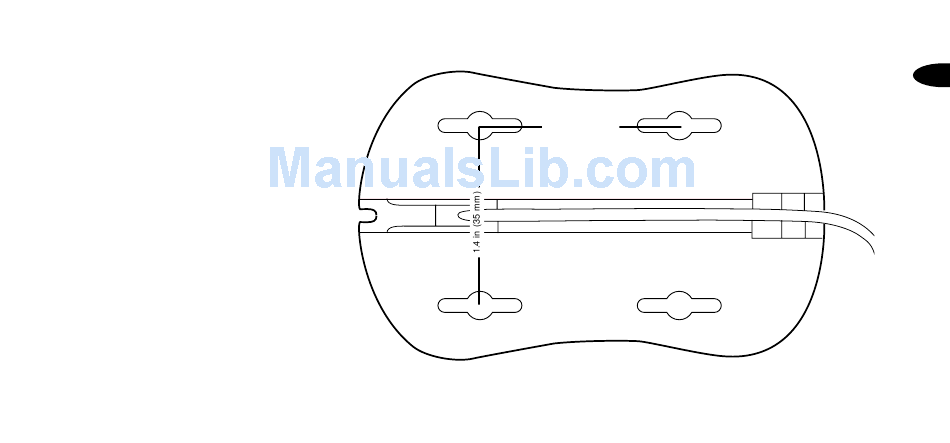

Figure 5. Photocopy this diagram of the screw-locator pat-
tern on the bottom of your XM Antenna to use as
a template for wall attachment.
1.6 in (40 mm)
6
