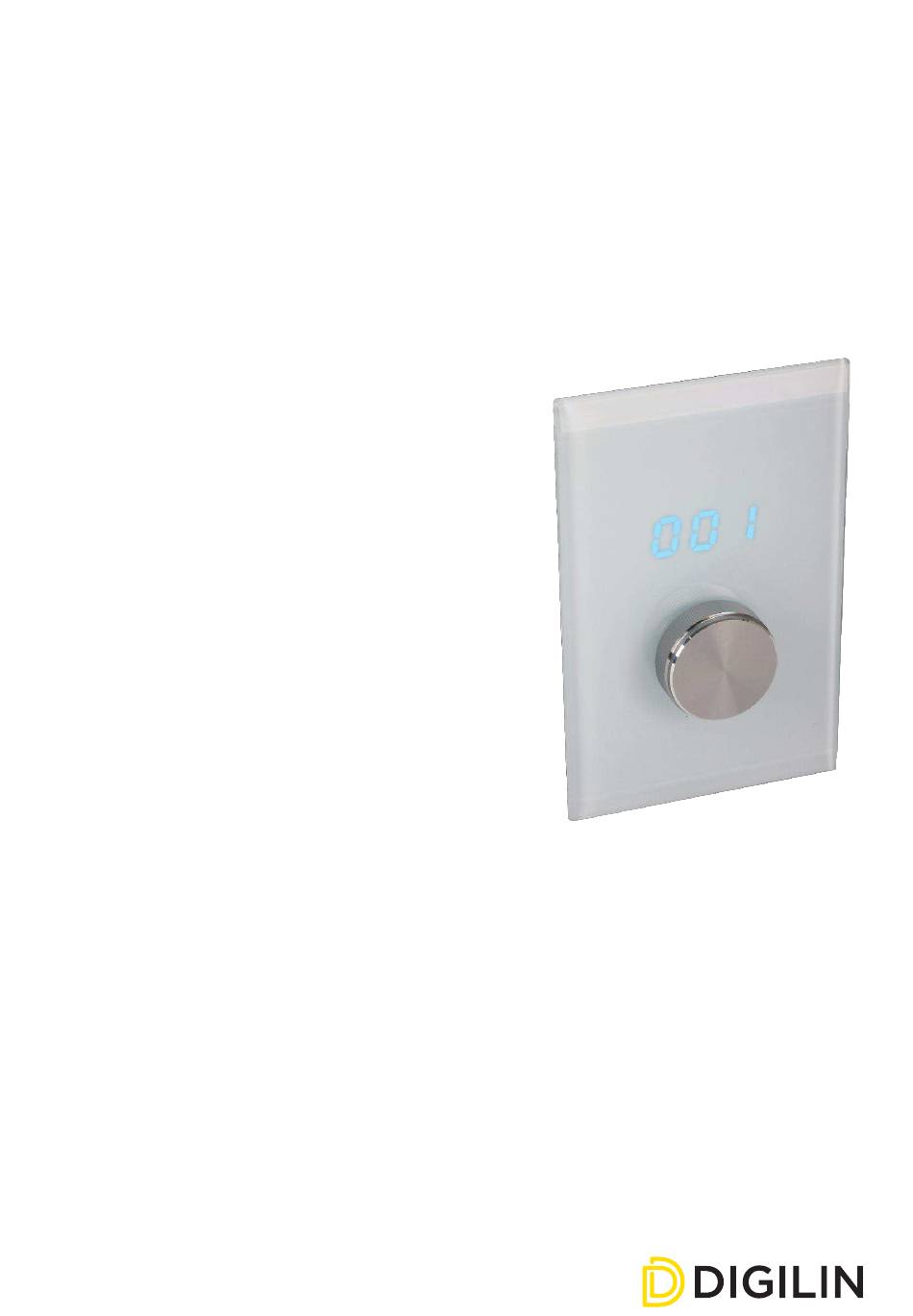

- Page 1 ColourTheme 3 RGB DMX Controller User Manual ©2020 Digilin Technologies Document Rev: 7.1 - 17 September 2020 Product specifications are subject to change without notice...
-
Page 2: Table Of Contents
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Table Of Contents Notes ............................................................. 3 Introduction ........................................................3 Specifications ......................................................4 Physical ........................................................4 Inputs ..........................................................4 Communications ..................................................... 4 Installation ........................................................5 Wiring ........................................................... 5 Wiring to LDD Controllers ............................................ -
Page 3: Notes
Introduction The Colour Theme Controller is a DMX show generator with a simple and intuitive user interface, designed for use with Digilin’s range of LED power controllers. It can have up to 400 pre-programmed shows stored in its memory, each dimmable down to 10%, ranging from static colours, to smooth flowing colour changes though to dynamic bold shows, all of which make full use of the intense, vibrant lighting effects achievable with LED lighting. -
Page 4: Specifications
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Specifications Physical U n i t s Plate Dimensions 76 x 116 x 11 Dimensions Including Knob 76 x 116 x 23 Weight Inputs U n i t s... -
Page 5: Installation
Figure 1 Connections on the Colour Theme Controller Wiring to LDD Controllers Digilin’s newest range of LDD controllers use RJ45 and cat5 cables for DMX. To connect the colour theme to these drivers follow the instructions in Table 1 T 5 6 8 A... -
Page 6: Dimming
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Dimming Each show on the Colour Theme Controller can be dimmed in 10% steps down to 10%. To alter the dimming level, press the knob for 0.5 seconds. The display will then show a ‘d’ followed by a 2 digit number representing the 10 dim levels (1 = 10%, 10 = 100%). -
Page 7: Serial Commands
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 V a l i d D e f a u l t S e t t i n g D e s c r i p t i o n... -
Page 8: C-Bus Mode
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 C-Bus Mode This mode allows the Colour Theme Controller to be connected to a C-Bus network via the C-Bus PC Interface unit. The Colour Theme will respond to dimming, on & off commands on the C-Bus lighting application network, using two consecutive group addresses (base address can be set via User Configuration) as described in Table 3. -
Page 9: Shows
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Shows The show space is broken into 3 groups 001 – 200 are static colours 201 – 300 are subtle shows 301 – 400 are dynamic shows... -
Page 10: Subtle Shows
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Subtle Shows Subtle Shows feature colour transitions that may not necessarily be noticeable, allowing the colours to shift and dance in the background. Show 201 RGB colour cycle 1 with fade... - Page 11 ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Show 210 RGB colour cycle 2 with fade Total Show Length: 2 minutes, 24 seconds Show 211 RGB colour cycle 2 with fade Total Show Length: 16 minutes...
- Page 12 ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Show 219 Sunset sequence, 1 minute hold on blue (night) Total Show Length: 2 minutes Show 220 Slow Sunset sequence, with 10 minute hold on blue (night)
- Page 13 ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Show 228 Blue, green, orange with 5 second fade and 90 second hold Total Show Length: 4 minutes, 45 seconds Show 229 Blue & Orange with 5 second fade and 5 second hold...
-
Page 14: Dynamic Shows
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Dynamic Shows Dynamic shows feature rapid colour transitions, designed to draw attention to an area, a display or an event. Show 301 RGB Colour cycle 1, with 1 second fade and 10 second hold... - Page 15 ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Show 310 Green and gold alternating at increasing speeds Total Show Length: 10 seconds Show 311 Alternating green and gold, with hold for 30 seconds Total Show Length: 61 seconds...
- Page 16 ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Show 319 Pulsing yellow Total Show Length: 3 seconds Show 320 Pulsing green Total Show Length: 3 seconds Show 321 Pulsing cyan Total Show Length: 3 seconds...
-
Page 17: Appendix A Rs232 Null Modem Cables Using Rj45 Connectors
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Appendix A RS232 Null Modem Cables using RJ45 Connectors RJ45 to RJ45 RJ45 to DB9 Female RJ45 Front View DB9 Female Front View digilin.com.au Page 17 of 20... -
Page 18: Appendix B. Serial Command Examples
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Appendix B. Serial Command Examples Example 1 This example will set the Colour Theme Controller to show 36. The command 36 consists of the desired show number in ASCII (36) followed by the carriage return character (shown here as ... -
Page 19: Appendix C. Wiring Diagram
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Appendix C. Wiring Diagram digilin.com.au Page 19 of 20 +617 3899 1267... -
Page 20: Appendix D. Full Static Colour Listing
ColourTheme 3 - RGB DMX Controller User Manual 7.1 - 17 September 2020 Appendix D. Full Static Colour Listing Levels Levels Levels Levels Static Static Static Static Colour Green Blue Colour Green Blue Colour Green Blue Colour Green Blue 194*...
