Colour Theme 3
Tuneable White DMX Controller
User Manual
© 2 0 1 6 D i g i l i n A u s t r a l i a .
D o c u m e n t R e v : 5 . 2 - 3 N o v e m b e r 2 0 1 6
P r o d u c t s p e c i f i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Colour Theme 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Digilin Colour Theme 3

Summary of Contents for Digilin Colour Theme 3

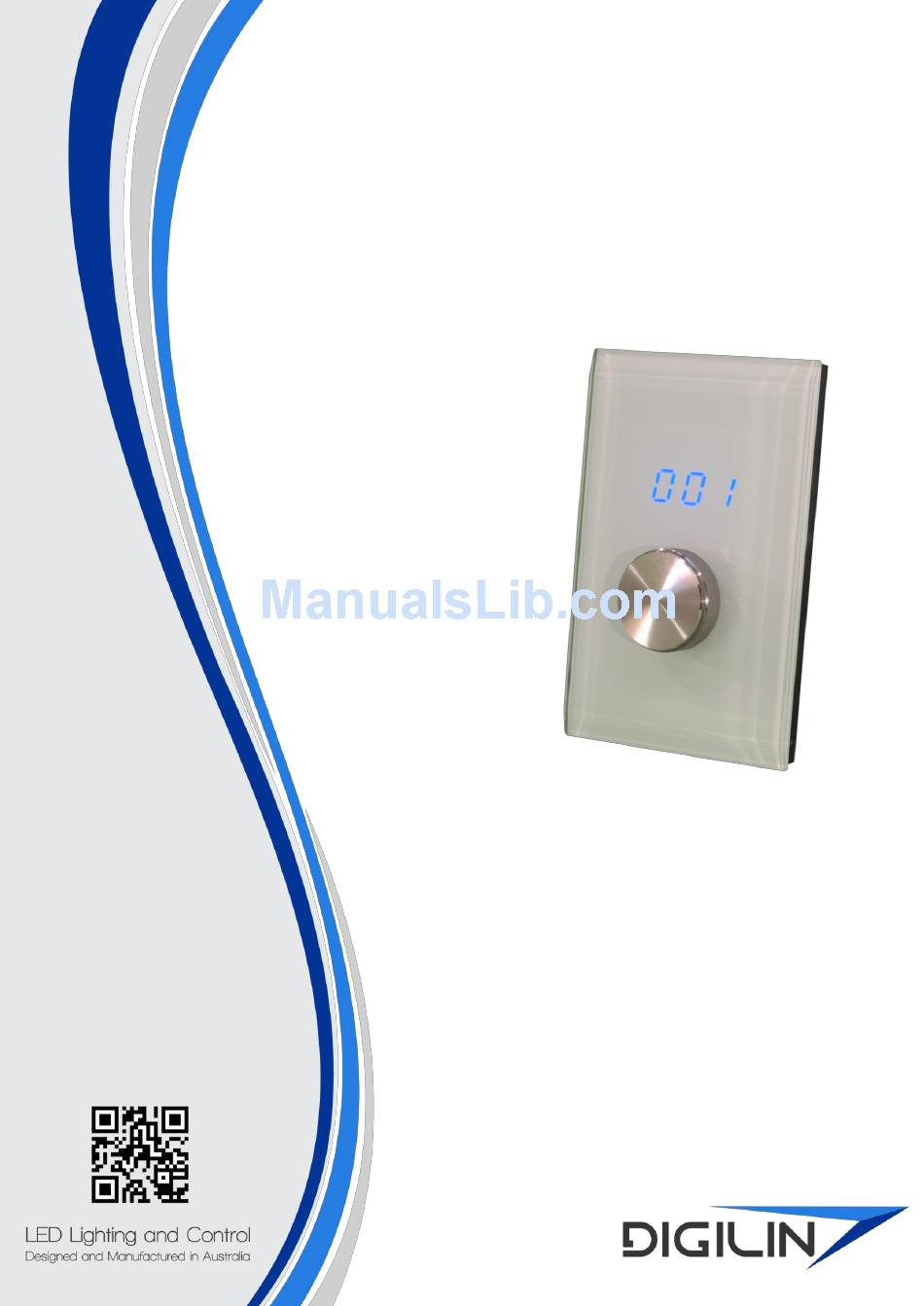

  • Page 1 Colour Theme 3 Tuneable White DMX Controller User Manual © 2 0 1 6 D i g i l i n A u s t r a l i a . D o c u m e n t R e v : 5 . 2 - 3 N o v e m b e r 2 0 1 6...
  • Page 2 C o lo u r T h e m e 3 - T u n e a b le W h i te D M X C o n tro lle r U s e r M a n u a l 5 .2 - 3 N o v e m b e r 2 0 1 6 Table Of Contents Safety Notes ............................
  • Page 3 The Tuneable White version of the Colour Theme Controller is a DMX show generator with a simple and intuitive user interface, specifically designed for use with Digilin’s LDMX-PWM-2-VW to control installations of tuneable white LED fittings. Tuneable white fittings allow the user to set the colour temperature through a set range of values, thus allowing the user to set the mood and ambience of an area by controlling the colour temperature of the white light.
  • Page 4 C o lo u r T h e m e 3 - T u n e a b le W h i te D M X C o n tro lle r U s e r M a n u a l 5 .2 - 3 N o v e m b e r 2 0 1 6 Mounting The Colour Theme Controller is housed in a standard Clipsal plate, and as such is compatible with any...
  • Page 5 Controls if commands are sent back (echoed) to Echo enabled On/Off the user when sending serial commands Table 1 Settings in User Configuration. Digilin Colour Theme Controller V3 Software Version 2.3 User Configuration 1. Set DMX Start Address 2. Set Times to repeat Channel 3.
  • Page 6 C o lo u r T h e m e 3 - T u n e a b le W h i te D M X C o n tro lle r U s e r M a n u a l 5 .2 - 3 N o v e m b e r 2 0 1 6 S eria l Co mma nd s This mode provides a simple method to control the Colour Theme Controller via a PC (or any...
  • Page 7 C o lo u r T h e m e 3 - T u n e a b le W h i te D M X C o n tro lle r U s e r M a n u a l 5 .2 - 3 N o v e m b e r 2 0 1 6 Appendix A RS232 Null Modem Cables using RJ4 5 Connectors...
  • Page 8 C o lo u r T h e m e 3 - T u n e a b le W h i te D M X C o n tro lle r U s e r M a n u a l 5 .2 - 3 N o v e m b e r 2 0 1 6 Appendix B.
