RUVATI TERRAZA RVH9130 Quick Start Manual

RUVATI TERRAZA RVH9130 Quick Start Manual

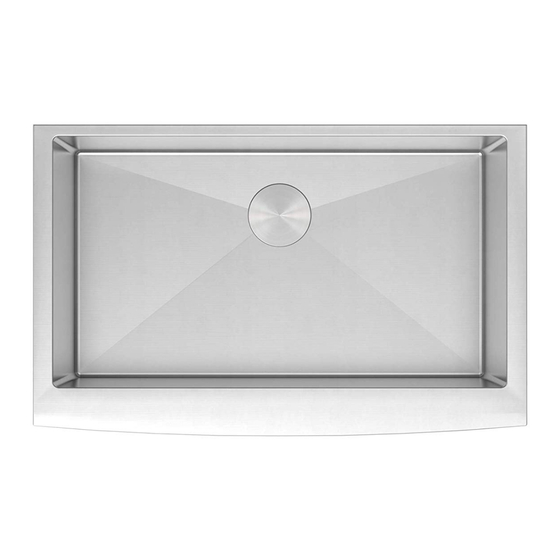

Stainless steel apron-front farmhouse kitchen sink

Advertisement

Quick Links

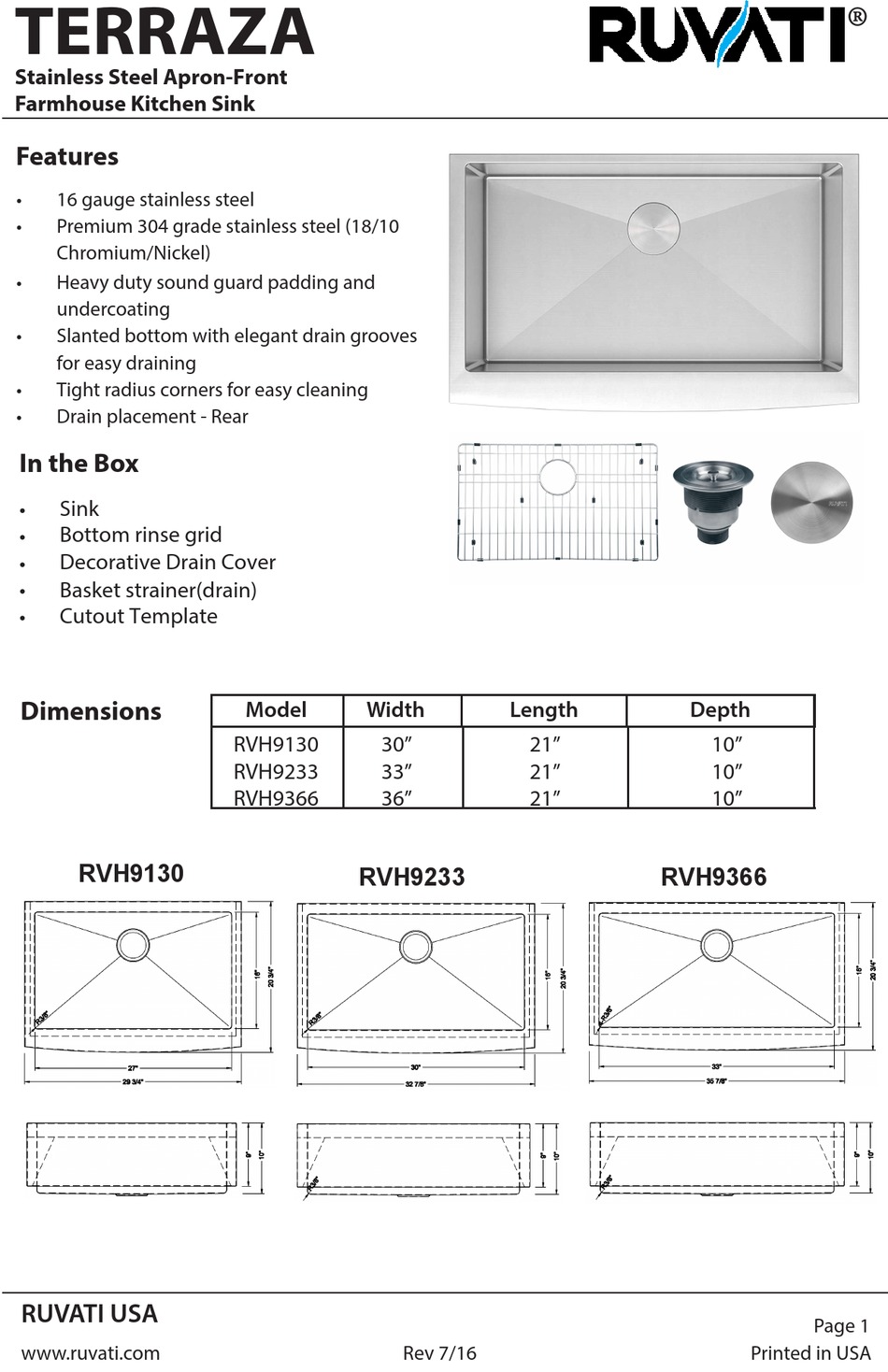

TERRAZA
Stainless Steel Apron-Front
Farmhouse Kitchen Sink
Features
16 gauge stainless steel
Premium 304 grade stainless steel (18/10
Chromium/Nickel)
Heavy duty sound guard padding and
undercoating
Slanted bottom with elegant drain grooves
for easy draining
Tight radius corners for easy cleaning
Drain placement - Rear
In the Box
Sink
Bottom rinse grid
Decorative Drain Cover
Basket strainer(drain)
Cutout Template
Dimensions
RVH9130
RUVATI USA
www.ruvati.com
Model
Width
RVH9130
30"
RVH9233
33"
RVH9366
36"
RVH9233
Length
21"
21"
21"
Rev 7/16
Depth
10"
10"
10"
RVH9366
Page 1
Printed in USA
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the TERRAZA RVH9130 and is the answer not in the manual?

Questions and answers

Summary of Contents for RUVATI TERRAZA RVH9130

  • Page 1 Decorative Drain Cover • • Basket strainer(drain) Cutout Template • Dimensions Model Width Length Depth RVH9130 30” 21” 10” RVH9233 33” 21” 10” RVH9366 36” 21” 10” RVH9130 RVH9233 RVH9366 RUVATI USA Page 1 www.ruvati.com Rev 7/16 Printed in USA...
  • Page 2 Alignment of sink to cutout is critical for a superior ft and fnished look. Depend- ing on your aesthetic preference, Ruvati sinks can be installed either with a 1/4” reveal, flush ft, or with a negative reveal. 1/4”reveal is reccomended. Decide on your prefence prior to installation.
  • Page 3 Wipe off perimeter. Adjust or shim between any extra sealant using a wet cloth, the sink and support if necessary. and apply extra sealant if there are any gaps RUVATI USA Page 3 www.ruvati.com Printed in USA Rev 7/16...
  • Page 4 This warranty relates to defects in manufacture, materi- highest possible quality standards. Ruvati sinks carry a als or workmanship in a Ruvati stainless steel kitchen limited lifetime warranty for residential use. sink supplied for installation into domestic premises in the United States.

This manual is also suitable for:

Terraza rvh9233Terraza rvh9366
