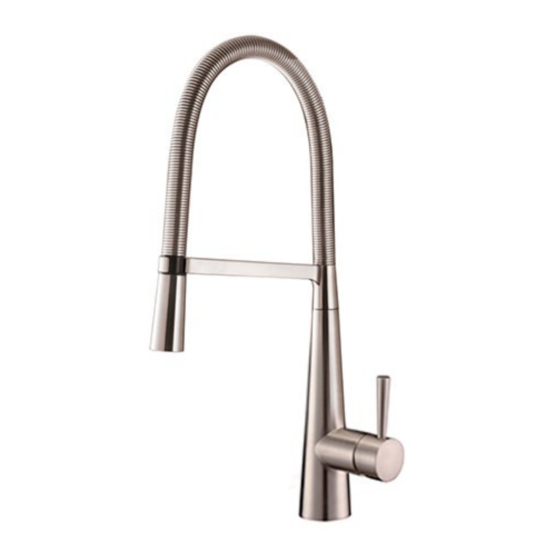

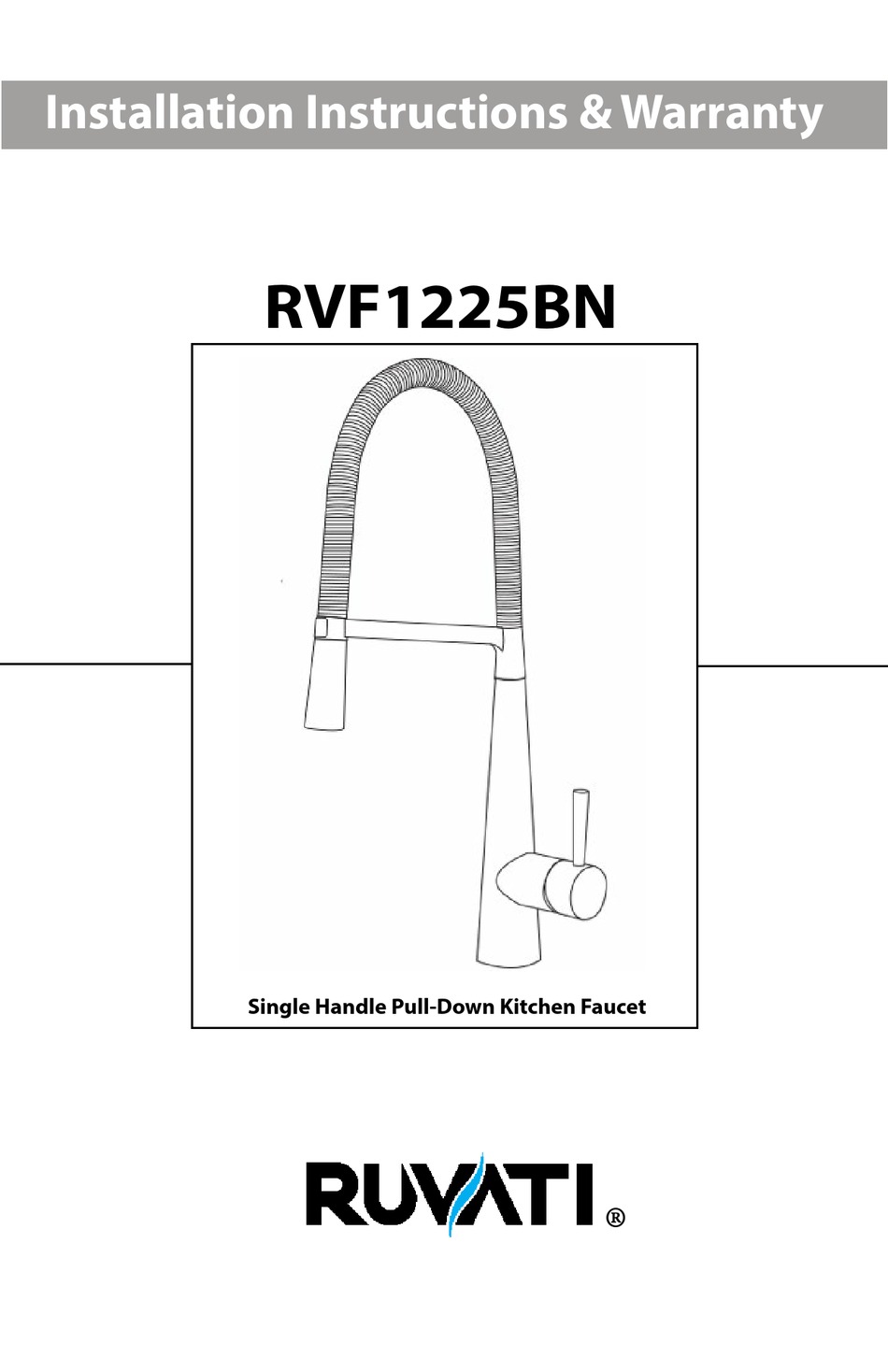

- Page 1 Installation Instructions & Warranty RVF1225BN Single Handle Pull-Down Kitchen Faucet ®...
- Page 2 2014 Reduction of Lead in Drinking Water Act, as well as state legislations in California (AB-1953) and Vermont (S-152). Model: RVF1225BN This product is compliant with all requirements of the Americans with Disablities Act. Pullout Spray Kitchen...
- Page 3 • Always wear saftely glasses when cutting or soldering water supply lines • Keep the drain covered to avoid losing parts. • Ruvati is not liable for any damage to product, countertop, or sink due to improper installation. Care and Maintenance •...
- Page 4 RVF1225BN ® In the Box Faucet Body Rubber Washer Metal Washer Locknut Threaded Shank Hot & Cold Hose Pipes Hot & Cold Water Supply Hoses 1-855-4-RUVATI ® Page 3 www.ruvati.com Printed in USA...
-
Page 5: Installation
RVF1225BN ® Installation 1. Remove rubber washer, metal washer, and locknut from the thread- ed shank (Figure 1). Figure 1 2. Place the faucet body into the faucet hole of the deck/sink (Figure 2). A standard 1-3/8” hole is required for this faucet. - Page 6 RVF1225BN ® 3. From underneath the deck/sink, slide the rubber washer followed by the metal washer all the way up the threaed shank of the faucet (Figure 4. Screw the locknut all the way up the threaded shank of the faucet un- til tight.
- Page 7 RVF1225BN ® 6. Then screw the remaining female ends of the supply hoses to the corrospinding hot and cold water supply using an adjustable wrench or pliers (Figure 5). Figure 5 7. Turn water supply back on (Figure 6). Test the faucet by turning faucet on and off.
- Page 8 RVF1225BN ® [BLANK PAGE] ® 1-855-4-RUVATI Page 7 www.ruvati.com Printed in USA...
-
Page 9: Troubleshooting Guide
RVF1225BN ® Trouble-Shooting Guide Cause Solution Issue The water will not There is a dirty, Check to see if the completely turn off. worn out, or dam- ceramic disc is dirty or aged washer in the damaged by remov- cartridge. - Page 10 ® RUVATI LIMITED LIFETIME WARRANTY At RUVATI, we stand behind our products with a LIMITED LIFETIME warranty on all faucets. We want every RUVATI customer to be a satisfied customer. REGISTER YOUR PRODUCT. By taking just a few minutes to register, you can improve your experience with Ruvati and enjoy more efficient Warranty Support.
- Page 11 1. an approved Return Merchandise Authorization number (RMA) issued by Customer Ser- vice 2. a dated, valid proof of purchase (payment receipt from an authorized Ruvati reseller) 3. a description of the problem Items must be properly and safely packed in such a manner to prevent damage to the part or product during shipment.
- Page 12 RVF1225BN REGISTER YOUR PRODUCT. By taking just a few minutes to register, you can improve your experience with Ruvati and enjoy more efficient Warranty Support. Visit www.ruvati.com ® Tel. (855)478-8284 Fax (855)239-8053 email: support@ruvati.com www.ruvati.com 1-855-4-RUVATI ® Rev 5/15 www.ruvati.com...
