Summary of Contents for RUVATI RVF1216CH

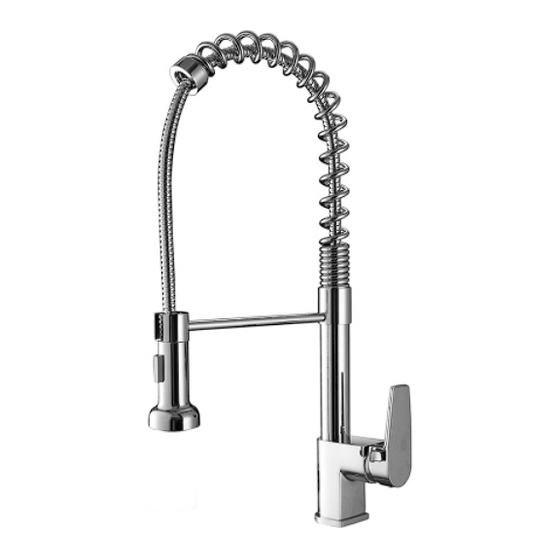

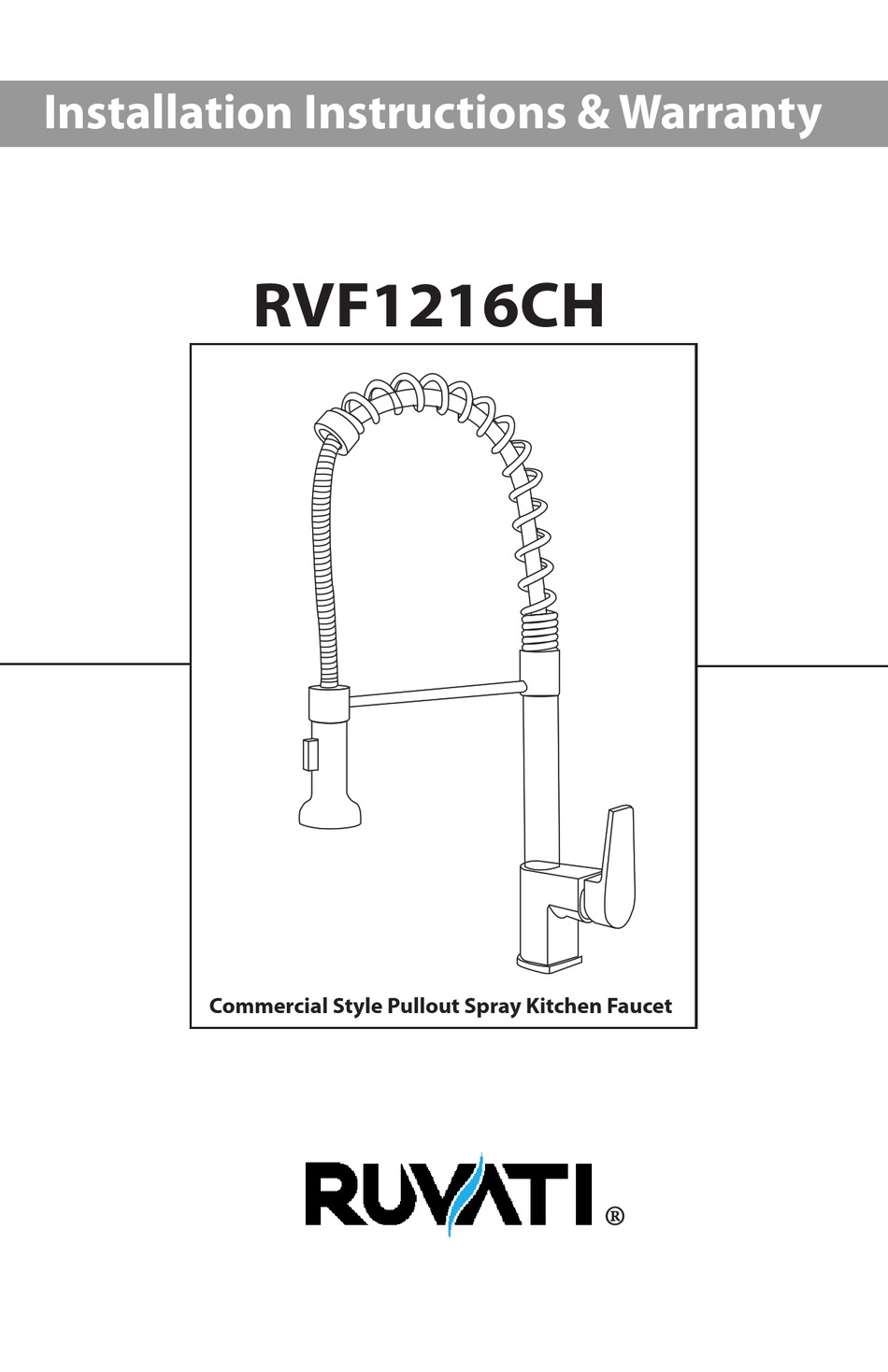

- Page 1 Installation Instructions & Warranty RVF1216CH Commercial Style Pullout Spray Kitchen Faucet ®...
- Page 2 2014 Reduction of Lead in Drinking Water Act, as well as state legislations in California (AB-1953) and Vermont (S-152). Model: RVF1216CH This product is compliant with all requirements of Model: RVF1216CH the Americans with Disablities Act.
- Page 3 • Always wear saftely glasses when cutting or soldering water supply lines • Keep the drain covered to avoid losing parts. • Ruvati is not liable for any damage to product, countertop, or sink due to improper installation. Care and Maintenance •...
- Page 4 RVF1216CH ® In the Box Faucet Body Rubber Gasket B Rubber Gasket A Rubber Washer Metal Washer Faucet Head Locknut Threaded Shank Hot & Cold Hose Pipes Spray Hose Pipe Spray Hose Weight Spray Hose Hot & Cold Water Supply Hoses ®...
-
Page 5: Installation
RVF1216CH ® Installation 1. Remove rubber washer, metal washer, and locknut from the thread- ed shank (Figure 1). Figure 1 2. Place the faucet body into the faucet hole of the deck/sink (Figure 2). A standard 1-3/8” hole is required for this faucet. - Page 6 RVF1216CH ® 5. Unscrew both screws of the hose weight until it is in two pieces. Place one half of the hose weight on the center sections of the spray hose. Then place the remaining half of the weight against the other half and re- insert the screws.
- Page 7 Make sure there is good water flow and no leaks. Inspect the faucet above and below the countertop to make sure there are no leaks. If there is a leak, turn the water supply off and contact Ruvati Support. Figure 9 ® 1-855-4-RUVATI Page 6 www.ruvati.com...
- Page 8 RVF1216CH ® [BLANK PAGE] ® 1-855-4-RUVATI Page 7 www.ruvati.com Printed in USA...
-
Page 9: Troubleshooting Guide
RVF1216CH ® Trouble-Shooting Guide Cause Solution Issue The water will not There is a dirty, Check to see if the completely turn off. worn out, or dam- ceramic disc is dirty or aged washer in the damaged by remov- cartridge. - Page 10 ® RUVATI LIMITED LIFETIME WARRANTY At RUVATI, we stand behind our products with a LIMITED LIFETIME warranty on all faucets. We want every RUVATI customer to be a satisfied customer. REGISTER YOUR PRODUCT. By taking just a few minutes to register, you can improve your experience with Ruvati and enjoy more efficient Warranty Support.
- Page 11 1. an approved Return Merchandise Authorization number (RMA) issued by Customer Ser- vice 2. a dated, valid proof of purchase (payment receipt from an authorized Ruvati reseller) 3. a description of the problem Items must be properly and safely packed in such a manner to prevent damage to the part or product during shipment.
- Page 12 RVF1216CH REGISTER YOUR PRODUCT. By taking just a few minutes to register, you can improve your experience with Ruvati and enjoy more efficient Warranty Support. Visit www.ruvati.com ® Tel. (855)478-8284 Fax (855)239-8053 email: support@ruvati.com www.ruvati.com 1-855-4-RUVATI ® Rev 05/15 www.ruvati.com...
