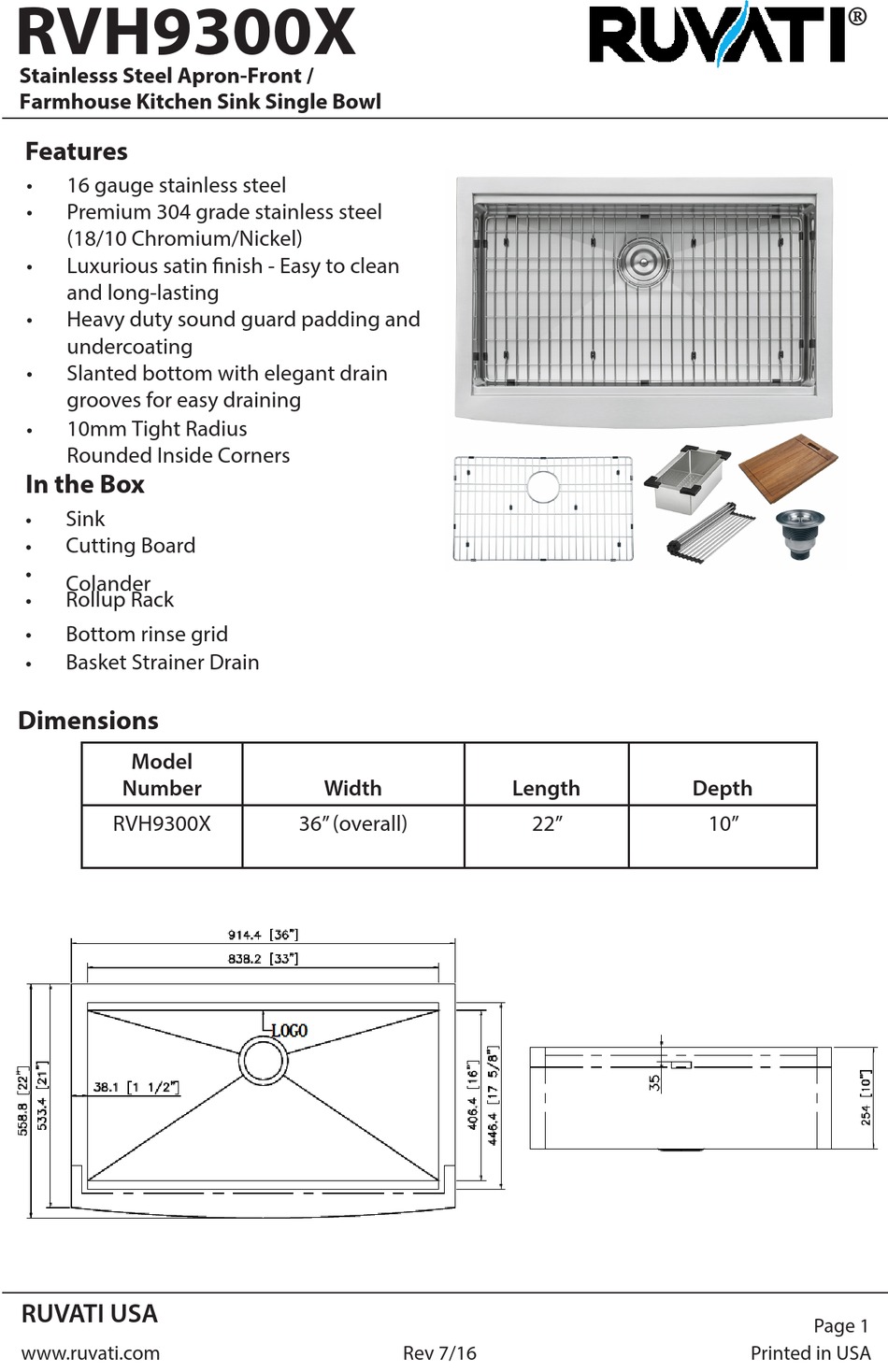

RVH9300X
Stainlesss Steel Apron-Front /
Farmhouse Kitchen Sink Single Bowl
Features
•
16 gauge stainless steel
•
Premium 304 grade stainless steel
(18/10 Chromium/Nickel)
•
Luxurious satin finish - Easy to clean
and long-lasting
•
Heavy duty sound guard padding and
undercoating
•
Slanted bottom with elegant drain
grooves for easy draining
10mm Tight Radius
•
Rounded Inside Corners

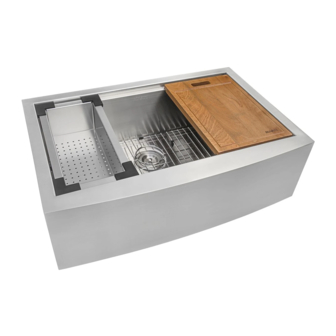

In the Box
Sink
•
Cutting Board
•
•
Colander
Rollup Rack
•
•
Bottom rinse grid
Basket Strainer Drain
•
Dimensions
Model
Number
RVH9300X
RUVATI USA
www.ruvati.com
Width
36" (overall)
Rev 7/16
Length
22"
®
Depth
10"
Page 1
Printed in USA
Advertisement
Table of Contents
Related Manuals for RUVATI RVH9300
Summary of Contents for RUVATI RVH9300
- Page 1 In the Box Sink • Cutting Board • • Colander Rollup Rack • • Bottom rinse grid Basket Strainer Drain • Dimensions Model Number Width Length Depth RVH9300X 36” (overall) 22” 10” RUVATI USA Page 1 www.ruvati.com Rev 7/16 Printed in USA...
- Page 2 ® RVH9300 Attention Installer 1. Read these instructions carefully before installation. Inspect sink for damages. Do not install if the sink is damaged. 2. Ruvati recommends that installation of apron / farmhouse sinks be done by a professional installer. 3. Ruvati is not responsible for improper sink or countertop installation. Ruvati is not liable for any damages to sink or countertop or personal injury during installation. 4. Due to the special nature of this installation, Ruvati reccomends that an experienced cabinet maker use the actual sink to build a custom cabinet or modify an existing cabinet. 5. Observe all local plumbing and building codes. Alignment of sink to cutout is critical for a superior fit and finished look. Depending on your aesthetic preference, Ruvati sinks can be installed either with a 1/4” reveal, flush fit, or with a negative reveal. 1/4” reveal is reccomended. Decide on your prefence prior to installation. RUVATI USA Page 2 Rev 12/11 www.ruvati.com Printed in USA...
- Page 3 ® RVH9300 Installation 1. Measure sink apron and cabinet 5. Due to the various cutout sizes opening to make sure sink apron will fit possible (based on your preference) into cabinet opening. If necessary, sand a cutout template is not provided. opening or add wood filler strips. Use the actual sink measurement to determine the actual location of the 2. Prepare the cabinet and create a cutout. Ensure adequate clearance support frame inside the cabinet that behind the sink for any faucet and the sink will sit on. Use 2x4 solid wood backsplash. studs to create the support frame. Your cabinet and support frame should be 6. Trace cut-out opening on the strong enough to hold up to 200 lbs countertop. Cut out the opening in the of weight once installed. The support counter top. Use an Orbital sander or frame should be positioned so that the sanding block to smooth the edge of top of the sink rim is level and flush the cut-out area and remove all saw with the top surface of the cabinet marks. For laminate type countertop, perimeter. Make sure the support all exposed unlaminated surfaces frame leaves room for the drains, near the cut-out opening must be faucet water lines, garbage disposal (if adequately finished and sealed to any).
- Page 4 This warranty relates to defects in manufacture, materi- highest possible quality standards. Ruvati sinks carry a als or workmanship in a Ruvati stainless steel kitchen limited lifetime warranty for residential use. sink supplied for installation into domestic premises in the United States.
