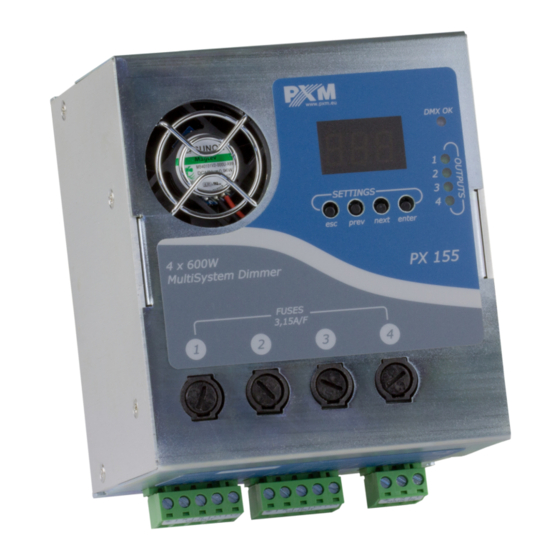

Description Professional digital dimmer designed for fixed installations. The device depending on the model allow to control four or two independent circuits of 600W or 1200W loads each. It has built-in interference suppression system, signal lights, fuses, DMX-512 control and 0 – 10V input. There are also external control keys available that work in accordance with one of four built-in functions.
The control is possible by means of: DMX-512 digital signal, analog signals 0 – 10V or using external keys. Safety conditions PX155 dimmer is powered directly from standard 230V grid, what can cause electric shock when safety rules are not observed. Therefore it is necessary to observe the following: 1.
Page 6
8. After the installation is completed, check the neutralization efficacy of all powered devices. 9. All repairs demanding casing opening should be made with cut off power supply. 10. The device should be strictly protected against water and other liquids. 11.
Connectors and control elements DMX-512 and analog 0 - 10V control inputs Display DMX signal presence LED indicator Output signal presence LED indicator Programming buttons Output fuses Control outputs Power supply couplings Designation of displayed messages No DMX signal: slow dimming of all outputs Minimal brightness of a particular channel show in percentage (%) Maximal brightness of a particular channel show in percentage (%) Limit –...
Page 8
Programmable chaser (in addition – reaction to DMX signal loss) Characteristics, 6 different characteristics to choose from Scenes and chasers programming Exponential characteristics F01 – F04, numbers of the edited scenes XFade switching on / off (for scene smooth changing) Analog input 0 –...
External button control Control function executed with external button no. 1 Maximum brightness duration time for button control Temperature sensor fail – contact service for repair Analog mode – selecting this option in the main menu activates analog control mode (also in the noS mode) Dimmer programming After turning the device on, software version is shortly displayed.
may be set to more. Group parameters have a higher priority than individual parameters. This means that programming in the ALL mode, for example, the DMX address, cancels the previous settings for all channels. 3. Dimmer temperature – °C – the function to check out the internal dimmer temperature.
ENTER NEXT NEXT NEXT ENTER NEXT 6.1.1 Group parameters 1. Adr – DMX address from the range 1 to 509 (setting 509 as the address for the first channel means automatically address 512 for the fourth dimmer channel). 2. Cur – characteristic, there are 9 options to choose from: ◦...
6. noS – precise the dimmer reaction to DMX signal interruption. There are 11 options to choose from: ◦ On – turning all outputs on at 100% ◦ OFF – turning all outputs off ◦ HLd – the last received value is held ◦...
6.1.3 Temperature °C – this parameter allows to check the dimmer internal temperature in the range -40 to +125°C. NOTE! Message Er1 means sensor failure, so service is necessary. 6.1.4 Input control mode AdC – switching between default digital control mode (DMX-512, setting OFF) and analog mode (0 –...
6.2 Analog input settings Analog input from smooth 0 – 10V control or monostable button control is active with the parameter AdC set to On. ENTER NEXT NEXT NEXT ENTER NEXT 6.2.1 Group parameters 1. AIn – detailed settings for analog control input: ◦...
◦ Inu – inverted ◦ LnU – logarithmic ◦ E_P – exponential ◦ nE1 … nE3 – for neon lamps control * ◦ Li2 – linear 15 – 100% (zero value at the power output for DMX values of 0 – 15%) 3.
◦ E_P – exponential ◦ nE1 … nE3 – for neon lamps control * ◦ Li2 – linear 15 – 100% (zero value at the power output for DMX values 0 – 15%) 3. ACL – limits the output voltage in the range from 50 – 230V 6.2.3 Temperature °C –...
6.3 Function diagrams for external button control 6.3.1 Function one (ACL) Rising time (parameter rIS) Button held pressed Button released Time 6.3.2 Function two (ACL) Rising time (parameter rIS) Button held pressed Button released Time Short press (<500 ms)
6.3.3 Function three (ACL) Rising time (parameter rIS) Time Short Short Short Short press press press press (<500 ms) (<500 ms) (<500 ms) (<500 ms) 6.3.4 Function four Duration time (parameter LAS) (ACL) Rising Fall down time time = rising time (parameter rIS) Time Short...
Each subsequent short press of a key, when the function performs the LAS parameter, causes the parameter time to be counted from 0 (reset the elapsed time). The value of this parameter is taken into account only in the fourth function. The other three are ignored. 6.3.5 Function five (ACL) Button A...
NOTE! To use this function additional resistor should be installed before external button “B” (as in the schematic diagram below). REFLECTORS Additional BUTTON A resistor max. 4 x 600W L OUT 2 BUTTON B N OUT L OUT 1 RCCB with overloady type C 10A N OUT PHASE...
7.1 Switching the access lock on 1. Press Esc enough times to leave dimmer programming mode – the display will show finally DMX address. Then press and hold Esc and press Next – the display will answer with PAS lettering. Release Esc key.
Page 22
NOTE! Confirming the wrong password will display bAd. Nit is necessary to start unlocking procedure from beginning. The third time wrong password setting lock the dimmer permanently, displaying Loc. The telephone contact to service is necessary to reset the password.
Menu scheme for digital input ENTER ENTER ENTER NEXT NEXT NEXT ENTER ENTER ENTER ENTER NEXT NEXT NEXT NEXT ENTER NEXT NEXT ENTER ENTER NEXT ENTER NEXT PREV NEXT NEXT NEXT NEXT ENTER NEXT NEXT ENTER ENTER ENTER NEXT NEXT NEXT NEXT NEXT...
Menu scheme for analog input ENTER ENTER ENTER NEXT NEXT NEXT ENTER ENTER ENTER ENTER ENTER ENTER NEXT NEXT NEXT NEXT NEXT NEXT ENTER ENTER ENTER NEXT ENTER ENTER NEXT NEXT NEXT ENTER NEXT NEXT NEXT NEXT ENTER NEXT ENTER NEXT NEXT NEXT...
10 Assembly of the device View of the back of the device Movable catch Handle On the back of the device there is a handle with a movable catch, which enables quick and convenient placement of the device on the T35 mounting rail.
To remove the device, press it from the top, and then tilt the bottom of the device towards you. Finally, moving the whole device up slightly can be removed. 11 Connection scheme MultiSystem Dimmer must be connected to the DMX line in series. That means, the control cable must be driven to the DMX coupling of the dimmer, and then driven out from the same coupling (refer to the scheme below) to the next DMX-512 signal receivers.
11.1 DMX-512 signal control STEROWNIK DMX REFLECTORS max. 4 x 600W L OUT 2 DMX- DMX+ N OUT L OUT 1 RCCB with overloady type C 10A N OUT PHASE STRAND NEUTRAL L OUT 3 STRAND L OUT 4 PROTECTIVE STRAND 230V POWER SUPPLY...
11.2 Control of linear potentiometers 10kΩ POTENTIOMETERS 0 - 10V IN REFLECTORS 0 - 10V IN max. 4 x 600W L OUT 2 +10V OUT N OUT L OUT 1 RCCB with overloady type C 10A N OUT PHASE STRAND NEUTRAL L OUT 3 STRAND...
11.3 0 – 10V control 0 - 10V CONTROL SIGNAL SOURCES 0 - 10V IN 0 - 10V IN 0 - 10V IN REFLECTORS 0 - 10V IN max. 4 x 600W L OUT 2 N OUT L OUT 1 RCCB with overloady type C 10A N OUT...
11.4 Monostable buttons control MONOSTABLE BUTTONS 0 - 10V IN 0 - 10V IN 0 - 10V IN 0 - 10V IN REFLECTORS max. 4 x 600W L OUT 2 +10V OUT N OUT L OUT 1 RCCB with overloady type C 10A N OUT PHASE...
12 Dimensions 23 22 21 20 19 18 17 16 15 14 Description of connections 13 Notes * neon lamps control characteristic – each characteristic (nE1, nE2, nE3) is dedicated to inductive load control as for neon lamp transformers. Differences between characteristics are only in lamp switching level, so the start brightness of the lamp.
14 Technical data type PX155 power supply 230V AC max. current consumption digital DMX-512 signal control inputs analog 0 – 10V monostable keys current consumption input 0 – 10V load capacity of the control output +10V out 10mA 60°C – automatic launch of electronically...
Page 33
Podłęże, 13.05.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: MultiSystem Dimmer 4 x 600W Product code: PX155 meets the requirements of the following standards, as well as harmonised...
