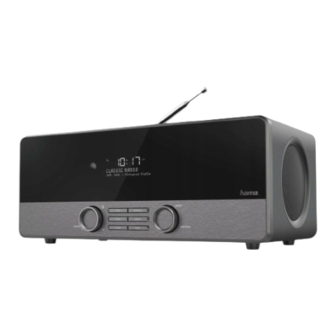

  • Page 1 00054830 (DIR3120) Digital Radio Digitalradio Operating Instructions...
  • Page 2 Technical Data / Technische Daten Radio Receiver/ DAB+ Internet Spotify Radio Empfänger Connectivity/ LAN (10/100), WIFI(b/g/n), USB (Play/Charge 5V Verbindungsfähigkeit Display/ 2.4“ oLED-Display Bildschirm Encryption/ WEP, WPA, WPA2, WPS Verschlüsselung Speaker/ 20 W RMS (2x 10 W) Lautsprecher Impedance/ 6 Ohm 75 Ohm Impedanz Speaker...

  • Page 4: Operating Instructions

    G Operating Instructions Controls and Displays A: Front B: Rear [volume -/+] / Rotate: Volume control Mains power supply Press: On/off switch Antenna* [info] Display additional information Headphone socket [menu] Direct access to the menu AUX IN socket Changing operating mode LINE OUT socket (Internet radio, Spotify [mode]...
  • Page 5 C: Remote Control Confirm [OK] ≙ Press [enter/navigate] On/off switch Rewind (operating mode: ≙ Press [volume -/+]/ [ [◄ ◄] Spotify Connect, Mute Music player) Fast forward (operating Direct access to operating [IR] [► ► ] mode: Spotify Connect, mode Internet radio ≙ [ mode] Music player) Direct access to operating [DAB]...

  • Page 6: Table Of Contents

    Content 1. Explanation of Warning Symbols and Notes ... 7 10. DAB ......... 21 10.1 Search/ Automatic search.
  • Page 7 16. Hama Smart Radio (Android / iOS) ....35 16.1 Preparation ........35 16.2 First startup .

  • Page 8: Menu Structure

    Menu structure MAIN MENU INTERNET RADIO Last listened Station list My Favourites Local Stations Location Genre Search stations Popular stations New stations Podcasts Location Genre search podcasts My Added Stations Help Get access code System settings Main menu SPOTIFY System settings Main menu MUSIC PLAYER Shared media...
  • Page 9 AUXILIARY INPUT System settings Main menu SLEEP ALARMS SYSTEM SETTINGS Equaliser Normal Flat Jazz Rock Movie Classic News My EQ My EQ profile setup Bass Treble Loudness Network Network wizard PBC Wlan setup View settings Manual settings NetRemote PIN Setup Network profile Keep network connection Time/Date...

  • Page 10: Explanation Of Warning Symbols And Notes

    Thank you for choosing a Hama product. 3. Safety Notes Take your time and read the following instructions and • The product is intended for private, non-commercial use information completely. Please keep these instructions in a only. safe place for future reference. If you sell the device, please •...

  • Page 11: Informations And Notes Before Getting Started

    4. Informations and notes before getting started 4.2 WLAN connection (wireless network) • Ensure that the router is switched on, is functioning Note – Optimal reception correctly and that there is a connection to the internet. • Activate the WLAN function of your router. •...

  • Page 12: Radio - Connecting And Starting Up

    You can find an appropriate selection of Hama products at • The buttons on the remote control – corresponding www.hama.com. to the control buttons on the device ( )- you will find ≙...

  • Page 13: Additional Information

    Navigation and controls Additional information • Select among menu items by turning [enter/navigate]. Press [info] to display context-dependent additional • Confirm the selection by pressing [enter/navigate]. information. The information shown depends on the operating mode as well as the current selection of radio This procedure is indicated in these operating instructions station, music file, etc.

  • Page 14: Initial Setup

    5.4 Initial setup Date/ Time • 12/24 hours format When it is first connected to the power supply, a list of • Auto update available languages for the menu is displayed. Proceed as • Update from DAB/ FM follows to set your preferred language. If automatic time and date adjustment is activated, the device receives time and date information from the station over the FM/DAB/...

  • Page 15: Main Menu / Modes

    Once the network wizard has finished, the setup wizard Select amongst the available operating modes by is finished as well. The display shows a message to this repeatedly pressing [mode]. effect. Press [enter/navigate] to enter the main menu. 6. Main menu / modes [mode] Access the main menu as follows: [menu]...

  • Page 16: Station Search

    7.1 Station search 7.1.3 Search by name This radio offers various ways to search for stations. If you know the name of the desired station, you can search for it directly. • Use [enter/navigate] to navigate through each search function and its options. •...

  • Page 17: New Stations

    7.1.5 New stations 7.2 Podcasts Stations that have recently been added to the database Podcasts are programs on various topics and include, can be found as follows: for example, talk shows, news and much more. Podcasts can be downloaded from the Internet. There are normally approximately 10,000 programs available.

  • Page 18: Search By Name

    7.2.3 Search by name 7.4.1 Save favourites If you know the name of the desired Podcasts, you can • Set the station that you would like to save as a favourite search for it directly. station preset. • If the station is received, press and hold [memory] on front of the radio.

  • Page 19: Management Of Favourites With

    7.4.3 Management of favourites with 7.5 Favourites the remote control (vTuner - http://www.wifiradio-frontier.com) Favourites 1-10 In addition to the local station memory slots, you can create additional lists of favourites using the vTuner The remote control enclosed has number keys 1-0 (0 ≙ 10). database.

  • Page 20: Managing Favourites Online (Vtuner - Http://Www.wifiradio-Frontier.com)

    • During registration, the radio’s ID is associated with your 7.5.4 My Added Stations e-mail address and saved in the web interface. If a station you desire is not yet available, you can add it • If multiple radios are registered to you and you wish to manually to the portal, or suggest a station be added to delete one of those registrations or just compare them, the database (Recommend station).
  • Page 21 Use: • Choose Available devices to access an overview of • In the Spotify app, start playback of a playlist or title as all devices available on the network. usual. • Select the radio. The audio is now played back on the •...

  • Page 22: Music Player (Upnp, Usb)

    9. Music player (UPNP, USB) 9.2 Playback from a computer (streaming) This operating mode enables the playback of MP3, WMA You can manage the radio and stream music to it from your or FlAC files that are saved on a PC, data storage medium computer.

  • Page 23: Playback From The Network - Accessing Files Using The Radio

    9.3 Playback from the network – Accessing files 9.4 Playback of playlist using the radio You can create a local playlist on the radio, in which you To access one of the existing network shared files directly save files shared on the network or from connected data from the radio, proceed as follows: storage devices.

  • Page 24: General Playback Options

    • To delete the entire playlist, proceed as follows: 10. DAB The radio receives all established digital radio frequencies in the range of 174 MHz to 240 MHz (band III, channel [menu] 5A to 13F). • From the main menu or after pressing [mode] repeatedly, activate operating mode DAB (DAB Radio): Main menu ...

  • Page 25: Manual Station Search

    10.2 Manual station search 10.3 Station list With the manual station search function you can search You can access the station list in DAB mode at any time via through individual frequencies and channels. If you know two methods: the frequency of the desired station and the automatic a) If a station is already playing, simply turn station search failed to find it, use this feature to set the [enter/navigate].

  • Page 26: Edit Station List

    10.5 Edit station list 10.6.2 Access favourites To remove stations that are not currently in the reception Press [memory] to open the overview window with the list area, from your station list, proceed as follows: of saved stations. [menu] [memory] Use [enter/navigate] to select one of your favourites.

  • Page 27: Drc (Dynamic Range Control)

    10.7 DRC (Dynamic Range Control) 11. FM Some radio stations in the DAB network support an audio From the main menu or after pressing [mode] repeatedly, level control that is activated at varying volumes during activate operating mode FM (FM Radio): playback.

  • Page 28: Automatic Station Search

    11.2 Automatic station search 11.4.2 Access favourites • Press and hold [enter/navigate] until the automatic Press [memory] to open the overview window with the list station search starts. of saved stations. • The radio stops the search and starts playback when it finds a station.

  • Page 29: Audio Setting

    11.5 Audio setting For some stations with a weak signal, quality can be [menu] slightly improved by playing them in mono quality. You can enable this function in the menu, and the radio will automatically switch to mono reception when signal quality is poor.

  • Page 30: Alarms

    • After the defined time the radio switches to standby Enable: mode. Choose when the alarm is to activate: Off – Daily – Once – Weekdays – Weekends • Press [ ] - or [volume -/+]/ [ ], to turn the radio back on.

  • Page 31: Stopping The Alarm/ Snooze Function

    14.3 Stopping the alarm/ Snooze function 15.1 Equaliser Alarm tone (Buzz) The equaliser allows you to adjust the sound of the radio • When the alarm activates, press [ ] or to suit your preferences by amplifying or reducing the amount of bass or treble in the audio .

  • Page 32: Network

    15.2 Network 15.2.2 Wireless network connection (WLAN) 15.2.1 Network wizard – Configuration of internet Depending on the network, there are a number of ways to connection / Automatic search connect to it. Networks that support connection via WPS (Wi-Fi Protected The Network wizard supports you to set up a Setup) are identified in the list as [WPS].

  • Page 33: Wired Network Connection (Lan)

    • Alternatively, PBC setup can be initiated from the internet Open network settings of the radio: Note • We recommend against establishing unsecured [menu] connections and advise you to always protect your network against unauthorised access. • If you plan to use an open network, you just have to select the network ID from the list of available System settings networks and confirm.

  • Page 34: View Settings

    DHCP enable 15.2.6 NetRemote PIN Setup / Smart Radio-App • Select the option Wireless. The radio can be controlled using the application Hama • Select the option DHCP enable. Smart Radio. • In the input screen, enter the whole SSID (network name) For this, you have to have installed the app on your and then confirm with OK.

  • Page 35: Network Profile

    15.2.7 Network profile 15.2.8 Keep network connected The radio automatically saves all successfully connected This setting is a radio energy-saving function. network profiles. This means that re-establishing these connections (for example, after the radio was disconnected [menu] from the power supply) does not require you to re-enter the network access information.

  • Page 36: Language

    • Update from DAB/ FM 15.5 Factory Reset If automatic time and date adjustment is activated, To reset the radio to the factory default settings, proceed the device receives time and date information from the as follows: station over the FM/DAB/DAB+ radio network. This is the best way to ensure that the clock will run accurately and the alarm will trigger at the correct time, even after [menu]...

  • Page 37: Setup Wizard

    • Set Auto-check setting to YES to have the radio 15.9 Backlight automatically check for new software updates at regular The backlight can be configured for each operating intervals. (Recommendation) mode (Operation Mode, Standby Mode, Slumber Mode) • Choose Check now to manually start a check for separately.

  • Page 38: Aux: Auto-Standby

    16. Hama Smart Radio (Android / iOS) and to not switch into standby mode. Otherwise the connection cannot be established. The Hama Smart Radio app allows you to access and control many features of the radio from your tablet 16.2 First startup computer or smartphone, without using the remote control.

  • Page 39: Source Selection

    16.3 Interface of the app 16.4 Source selection Source selection / active device Settings The source setting allows you to change the radio’s current Playback source (DAB, FM, Internet, etc.) operating mode. Playback window You can also operate the music player and access files shared on the network or saved on USB storage devices Search (stations or directories) that are connected to the radio.

  • Page 40: Station Search And Favourites

    16.5 Station search and favourites 16.5.2 Searching for stations / station lists 16.5.1 Managing favourites You can also search for stations using the app. Tap any of the search results to open it. To access favourites management, tap this button in the playback window (6).

  • Page 41: Settings And Standby

    18. Warranty Disclaimer Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failure to observe the operating instructions and/ or safety notes.

  • Page 42: Service And Support

    19. Service and Support Please contact Hama Product Consulting if you have any questions about this product Hotline: +49 9091 502-115 (German/English) Further support information can be found here: www.hama.com 20. Recycling Information Note on environmental protection: After the implementation of the European Directive...
  • Page 43 Hama GmbH & Co KG 86652 Monheim / Germany www.hama.com The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
