SDXN146K1E
Drop in Mobile Decoder for
Kato N Scale SD40-2 and
similar Locomotives
8 Selectable Steam & Diesel Sound
Schemes Included
Features:
▪
Digitrax SoundFX
Your locomotives will sound in scale like the real thing with SoundFX
Customizable 16, 12 or 8 Bit Sound
Works with SoundFX 8 and 16 Bit sound projects
4 Simultaneous voices
Downloadable Sound with Digitrax PR3 and SoundLoader 2.0 software
16 Megabit On board Sound Memory
1 Watt Sound Output
Cam input-synchronized steam-chuff option for steam locos
Scaleable Speed Stabilization(BEMF) optimized for sound operation
▪
SoundFX does not require an external rate sensor to vary workload.
▪
Factory 8 Ohm 10 mm x 18 mm Oval Speaker makes installation quick and
easy.
▪
Smart Power Management-no more booster or programmer shutdowns!
▪
Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪
Series 6 Decoder Features.
▪
3
FX
effects optimized for selectable LED or lamp operation.
▪
3
Digitrax FX
effects and on/off control.
▪
Configurable FX
▪
Digitrax LocoMotion
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive for silent operation.
▪
Direct mode programming.
▪
Decoder Reset CV with or without speed table reset.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
DCC Compatible.
▪
FCC Part 15, Class B RFI compliant.
▪
Digitrax "No Worries" Warranty.
© 2016 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
®
Sound System
Functions-Control lights and functions for prototypical lighting
3
Pulse Function available on all function outputs.
System – Lets your trains run like the real thing!
®
SoundFX
N Scale

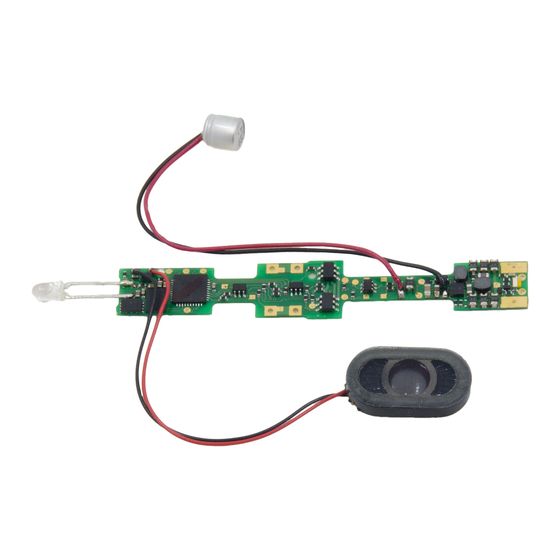

Drop in Mobile Decoder with SoundFX
1.0 Amp/2 Amps Peak
3
4 FX
Functions, 200ma output
8 Ohm 10 mm x 18 mm Oval Speaker
100uF Capacitor
— 1 —
®
www.digitrax.com
Advertisement
Related Manuals for Digitrax SoundFX SDXN146K1E
Summary of Contents for Digitrax SoundFX SDXN146K1E
- Page 1 Factory 8 Ohm 10 mm x 18 mm Oval Speaker makes installation quick and easy. ▪ Smart Power Management-no more booster or programmer shutdowns! ▪ Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment. ▪ Series 6 Decoder Features. ▪...
-
Page 2: Parts List
® 1 Instruction Sheet Installation Information See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information. Digitrax manuals and instructions are updated periodically. Please visit www.digitrax.com for the latest versions, technical updates and additional locomotive-specific installation instructions. - Page 3 Customize sounds by programming Sound CVs to adjust the desired config- urations, as shown in the following tables of SoundFX CVs. Sound schemes other than the 8 factory preloaded can be loaded by using a Digitrax PR3 SoundFX Programmer Note: This is a example installation for this Locomotive, other installs may require modification of the locomotive to make space for the speaker and capacitor.
- Page 4 CV01 (AD2), the two digit address, set to 03. Following is a brief description of how to change the decoder address with a Digitrax DT4XX series throttle. See your Starter Set Manual for complete programming instructions.
- Page 5 Speed Tables-How the Loco Responds to the Throttle With Digitrax LocoMotion, there are two types of speed tables: 3 Step Ta- bles and High Resolution 28 Step Tables. Please see your Decoder Man- ual for a discussion of the 28 Step Tables. The 3 Step Tables are set up by programming 3 CVs: Start Voltage (CV02), Mid point Voltage (CV06) and Max Voltage (CV05).
- Page 6 Digitrax SoundFX System Digitrax SoundFX lets you make your locos sound in scale like the real thing! The SoundFX sound CVs in the range of CV140 to CV256 let you customize your decoder without having to reprogram or change the in- stalled sound scheme.
- Page 7 SoundLoader 2.0 software. Both the software and a number of alternate sound project files are available from the Digitrax Sound Depot web site. It takes only a few minutes to download the new sound to your decoder. The following tables show the CVs used in this decoder version and how it is set up at the factory to operate various sounds using your throttle.
- Page 8 Horn=2 +128 for playable volume.) Auto Coupler Sequence Threshold Value-Peak speed to allow auto coupler/brake when direction change occurs and 00-64 F3 is ON Project Author ID, Digitrax=221 Project ID Steam Blow down / Safety Volume 0-64 Notching/Slip Mode: 00=Automatic,...
- Page 9 Steam = Greaser Steam = Safety Blowoff SoundFX DC Operation Mode Digitrax SoundFX decoders will operate on smooth DC power. The sound will not start until approximately 7 volts is applied to the track and there will be no “start up sound.”...
- Page 10 If the sound in your decoder shuts down after you stop it and you are not using a Digitrax system for control. On some DCC systems decoders are not addressed by DCC packets after the locomotive is set to 0 speed.
-
Page 11: Warranty And Repair
Visit www.digitrax.com for complete warranty details and instructions for returning items for repair. Please return warranty items directly to Digitrax - DO NOT re- turn items to place of purchase. Digitrax, Inc. is not responsible for unintentional errors or omissions in this document. - Page 12 SDXN146K1E Drop in Mobile Decoder for Kato N Scale SD40-2 and similar Locomotives 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Need Support? helpdesk.digitrax.com...
