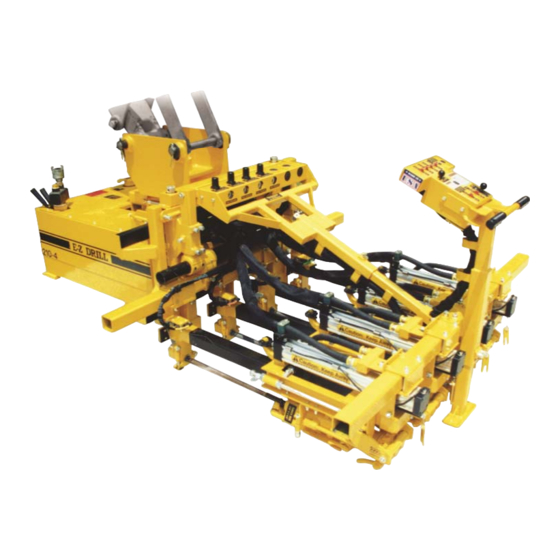

E-Z DRILL 210-3 EQ MT Maintenance Manual

Hide thumbs Also See for 210-3 EQ MT:

Advertisement

Quick Links

Download this manual
MAINTENANCE FOR THE
MODEL 210-3, -4 , and -5 EQ MT

Advertisement

loading
Need help?

Need help?

Do you have a question about the 210-3 EQ MT and is the answer not in the manual?

Questions and answers

Related Manuals for E-Z DRILL 210-3 EQ MT

Summary of Contents for E-Z DRILL 210-3 EQ MT

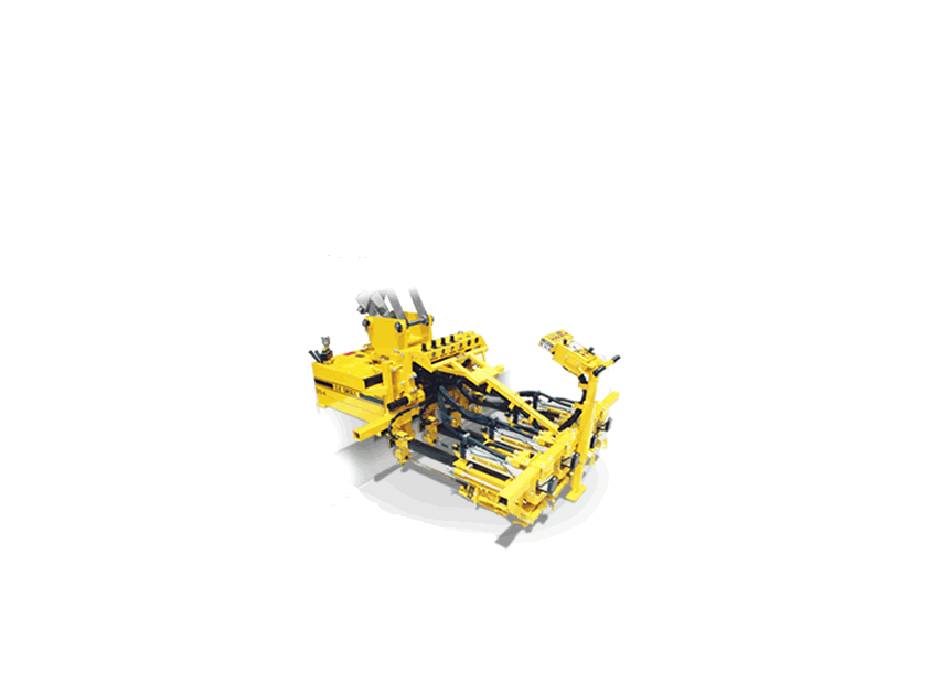

  • Page 1 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT...
  • Page 2 SAFETY PRECAUTIONS FOR THE MODEL 210-3, -4, -5 EQ MT System Under Pressure: Shut off air supply and disconnect air hose before disassembling or disconnecting parts. Flying Debris: During boring, chips may be ejected. Stay behind control panel and wear safety glasses to prevent eye injury. Pinch Points: Keep hand clear of carriage assembly.
  • Page 3 SAFETY PRECAUTIONS FOR THE MODEL 210-3, -4, -5 EQ MT (continued) Loud Noise: Wear ear protection to prevent eardrum damage from air compressor. Dust: Wear a dust protection mask to protect from concrete dust. High Pressure: High pressure from the air compressor can damage the drill, and can void the warranty.
  • Page 4 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Check bolts daily for tightness. Due to the extreme amount of vibration, bolts will loosen. It is important keep nuts and bolts tight. EXCEPTION: The two ½” x 4” bolts that connect the upper drill bracket and the lower drill bracket can be too tight.
  • Page 5 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Check all nuts and bolts around the carriage assembly daily. Tighten as needed. • Allowing bolts or connections to work loose may disqualify any warranty on these parts.
  • Page 6 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Check all nuts and bolts on the rock drill daily. IMPORTANT: If a nut on one of the thru bolts gets loose, or if a nut on one of the trunnion bolts gets loose, it will cause the other one that is tight to break.
  • Page 7 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Check all stop rods and stop rod nuts daily and keep them tight.
  • Page 8 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Check nuts and bolts on all frame clamps daily.
  • Page 9 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT DO NOT REMOVE CAP UNDER PRESSURE ! (to remove pressure from system, have air supply disconnected from drill unit, and turn the power switches to the “On” position) • Push relief button next to oil cap to relieve pressure in the oil tank.
  • Page 10 RECOMMENDED SPECIFICATIONS FOR ROCK DRILL LUBRICANT The use of synthetic oils is NOT RECOMMENDED due to possible damage to seals, “O” rings, hoses, blades, and polycarbonate oiler/filter bowls. Use only a non-detergent, Class 2, pneumatic lubricating oil (viscosity 100-200 S.S.U. @ 100° F and minimum aniline point of 200°F); which contains no synthetic additives;...
  • Page 11 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Grease all grease zerts daily: Hinges Pivots...
  • Page 12 MAINTENANCE FOR THE MODEL 210-3, -4 , and -5 EQ MT • Grease all grease zerts daily: Mast...
  • Page 13 MAINTENANCE FOR THE MODEL 210-3, -4, -5 EQ MT • It is highly recommended that the concrete dust on the drill unit be cleaned off daily to prevent it from hardening. • For longer storage periods, flush the drill motors with a substance that will prevent rust from forming due to moisture in the drills.
