Summary of Contents for E-Z DRILL 210B SRA

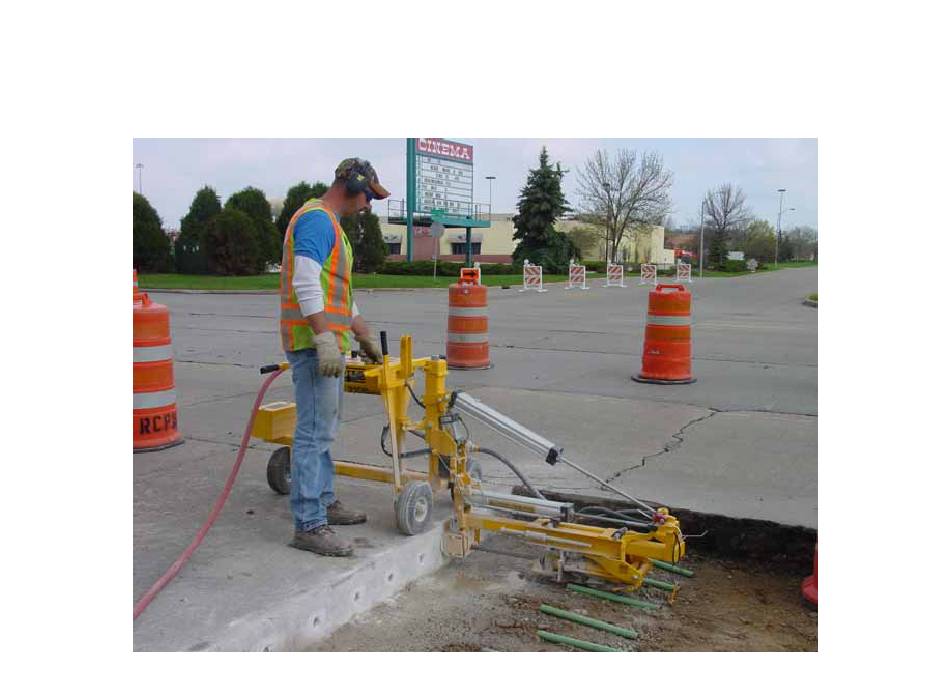

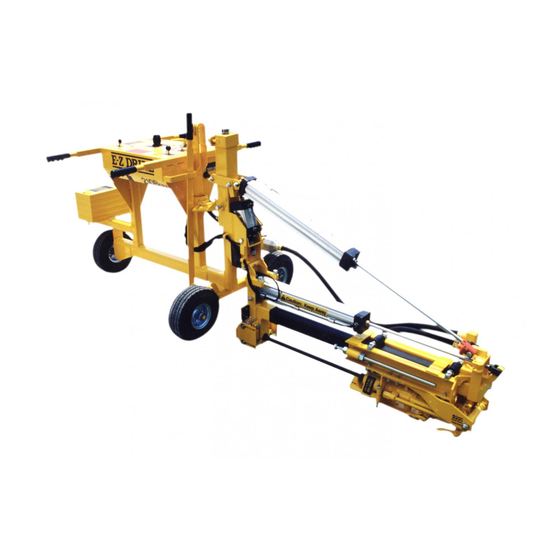

- Page 1 MAINTENANCE FOR THE MODEL 210B SRA...
- Page 2 SAFETY PRECAUTIONS FOR THE MODEL 210B SRA System Under Pressure: Shut off air supply and disconnect air hose before disassembling or disconnecting parts. Flying Debris: During boring, chips may be ejected. Stay behind control panel and wear safety glasses to prevent eye injury.
- Page 3 SAFETY PRECAUTIONS FOR THE MODEL 210B SRA (continued) Loud Noise: Wear ear protection to prevent eardrum damage from air compressor. Dust: Wear a dust protection mask to protect from concrete dust. High Pressure: High pressure from the air compressor can damage the drill, and can void the warranty.
- Page 4 MAINTENANCE FOR THE MODEL 210B SRA • Check bolts daily for tightness. Due to the extreme amount of vibration, bolts will loosen. It is important keep nuts and bolts tight. EXCEPTION: The two ½” x 4” bolts that connect the upper drill bracket and the lower drill bracket can be too tight.
- Page 5 MAINTENANCE FOR THE MODEL 210B SRA • Check all nuts and bolts around the carriage assembly daily. Tighten as needed. • Allowing bolts or connections to work loose may disqualify any warranty on these parts.
- Page 6 MAINTENANCE FOR THE MODEL 210B SRA • Check all nuts and bolts on the rock drill daily. IMPORTANT: If a nut on one of the thru bolts gets loose, or if a nut on one of the trunnion bolts gets loose, it will cause the other one that is tight to break.
- Page 7 MAINTENANCE FOR THE MODEL 210B SRA • Check all stop rods and stop rod nuts daily and keep them tight.
- Page 8 MAINTENANCE FOR THE MODEL 210B SRA DO NOT REMOVE CAP UNDER PRESSURE! (to remove pressure from system, have air supply disconnected from drill unit, and open the Power lever to the “On” position) • Fill the oil reservoir daily with...
- Page 9 RECOMMENDED SPECIFICATIONS FOR ROCK DRILL LUBRICANT The use of synthetic oils is NOT RECOMMENDED due to possible damage to seals, “O” rings, hoses, blades, and polycarbonate oiler/filter bowls. Use only a non-detergent, Class 2, pneumatic lubricating oil (viscosity 100-200 S.S.U. @ 100° F and minimum aniline point of 200°F); which contains no synthetic additives;...
- Page 10 MAINTENANCE FOR THE MODEL 210B SRA • Grease all grease zerts daily:...
- Page 11 MAINTENANCE FOR THE MODEL 210B SRA • Keep all tires properly inflated (approximately 32 psi) to keep the drill unit level, and to make it easier to move. • IMPORTANT: Newer models have solid rubber tires that do not require inflation.
- Page 12 MAINTENANCE FOR THE MODEL 210B SRA • It is highly recommended that the concrete dust on the drill unit be cleaned off daily to prevent it from hardening. • The drill unit should be stored with the drills in the vertical position.
