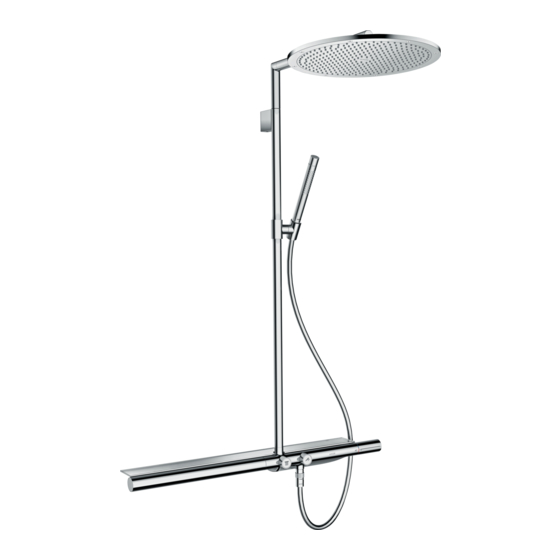

Summary of Contents for Axor Showerpipe 27984007

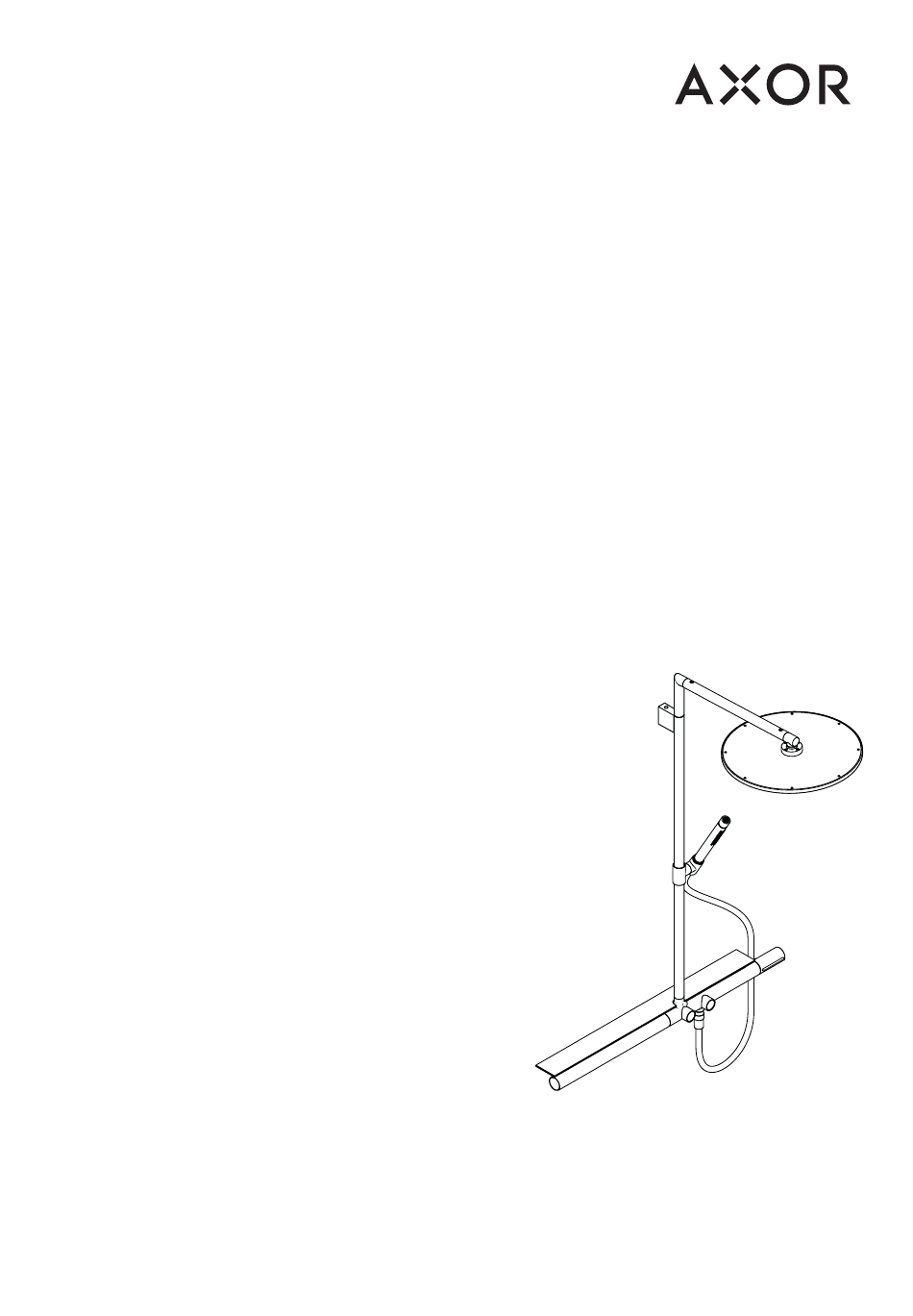

- Page 1 Z H ⁄ 用户手册 ⁄ 组装说明 A XOR Showerpipe 800 mm E N ⁄ Instructions for use ⁄ assembly instructions 27984007 ⁄ 27984937 I N S T A L L A T I O N...
- Page 2 安全技巧 技术参数 装配时为避免挤压和切割受伤，必须戴上手套。 1 MPa 工作压强： 最大 0,1 - 0,5 MPa 推荐工作压强： 淋浴系统只允许作为洗浴、卫生和洁身之用。 测试压强： 1,6 MPa 不得让儿童和肢体、精神和⁄或意识有障碍的成人在不受监管的情况下使用 (1 MPa = 10 bar = 147 PSI) 淋浴系统。受酒精或毒品影响的人员不得使用淋浴系统。 70°C 热水温度： 最大 必须避免让身体敏感部位（如眼睛）接触到莲蓬头喷水。必须保持莲蓬头 65°C 推荐热水温度： 与人头之间有足够的距离。 150 mm 中心距离： 连接管线G 1⁄2： 左热右冷 该产品不得作扶柄使用。必须安装单独的扶柄。 70°C ⁄ 4 分钟 热力消毒: 最大...
- Page 3 S A F E T Y N O T E S T E C H N I C A L D A T A Gloves should be worn during installation to prevent crushing and cutting injuries. Operating pressure: max. 1 MPa Recommended operating pressure: 0,1 - 0,5 MPa The shower system may only be used for bathing, hygienic and body cleaning Test pressure: 1,6 MPa purposes. (1 MPa = 10 bar = 147 PSI) Children as well as adults with physical, mental and ⁄or sensoric impairments must Hot water temperature: max. 70°C not use this product without proper supervision. Persons under the influence of Recommended hot water temp.: 65°C...
- Page 4 4 7 8 ±12 G 1 / 2 6 3 9 3 9 8 Ø 3 5 5 6 3 9 3 9 8 Ø 3 5 5 Ø Ø ±12 17 2 4 5 0 ±12 17 2 4 5 0 5 2 0 8 0 0 10 5...
- Page 5 X + 34 mm 3 4 ± SW 27 mm SW 2,5 mm...
- Page 6 6 0 Ø 6 m m 530 mm SW 3 mm (1,5 Nm) SW 3 mm (5 Nm) SW 5 mm...
- Page 7 6 0 Ø 6 m m SW 8 mm SW 3 mm SW 3 mm SW 3 mm...
- Page 9 > 40 °C 更坚固 ⁄ schwerer 更加简单 ⁄ leichter...
- Page 10 C L E A N I N G R E C O M M E N D A T I O N F O R H A N S G R O H E P R O D - 汉...
- Page 11 max. 10 min > 10 min max. 10 min 20 mm > 1 min...
- Page 12 98173000 95772000 (1600 mm) (22x1,5) 95773000 92936000 96179000 98382000 (32x1,5) (12x2,5) 93294000 98371000 98282000 (29x3) 98199000 (17x2) 96429000 98433000 95758000 (30x1,5) 96179000 98368000 98129000 (14x2) 98058000 93295000 93296000 A XOR ⁄ Hansgrohe SE Auestraße 5–9 77761 Schiltach Deutschland info@axor-design.com axor-design.com...
