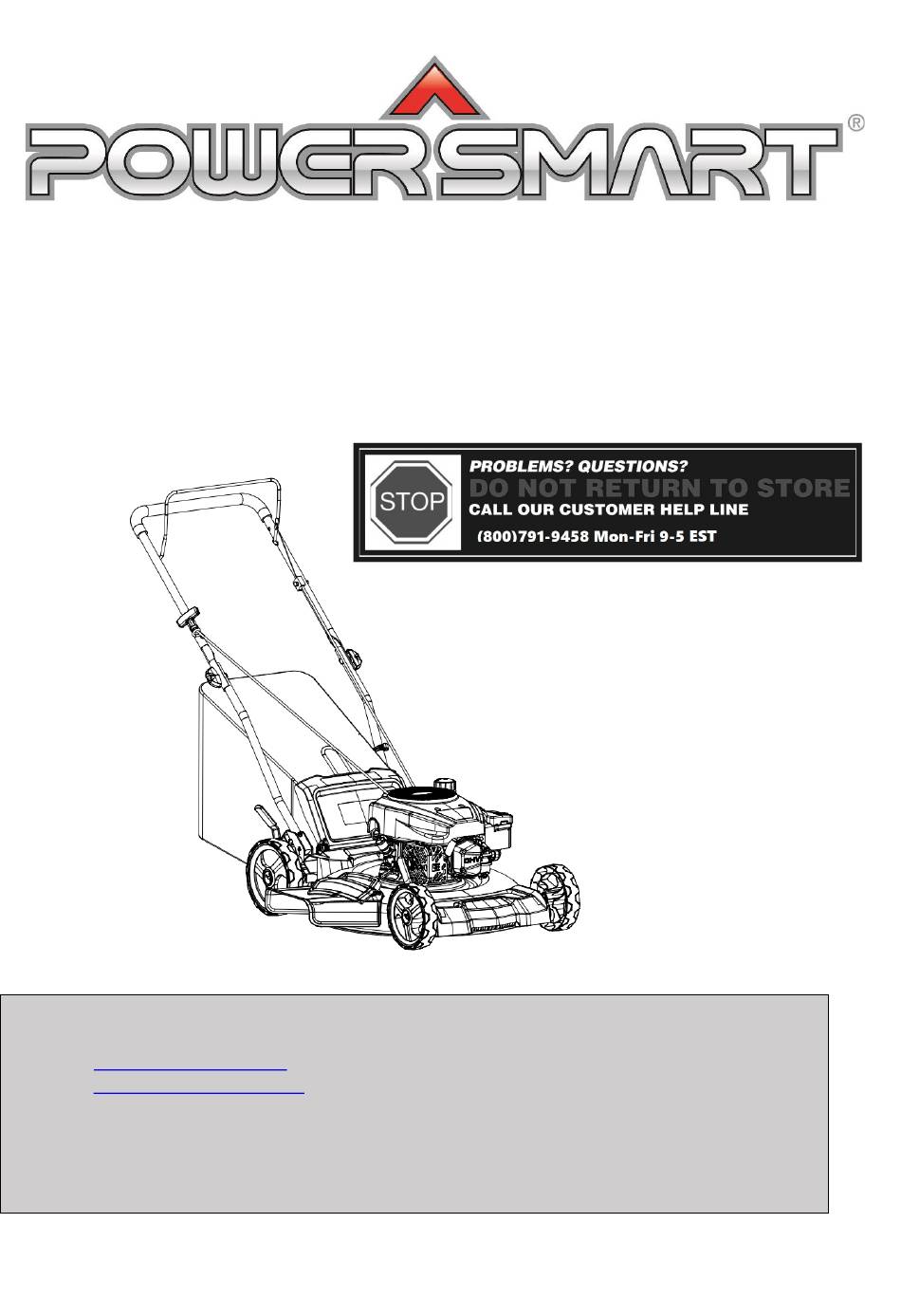

- Page 1 INSTRUCTION MANUAL EN 21" 3-in-1 Gas Push Lawn Mower Model # DB8621PR Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com www.powersmartusa.com Toll free: 1-800-791-9458 Mon-Fri 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
Maintenance……………………………………………………………... Storage……………………………………………………………………. 19 Troubleshooting…………………………………………………………. Exploded view & parts list……………………………………………… Warranty………………………………………………………………… TECHNICAL DATA 21" 3-in-1 Gas Push Lawn Mower Model # DB8621PR Engine type: 4 Stroke, OHV, single cylinder with forced air-cooling system Displacement: 170cc Fuel tank capacity: 0.40 Gallon Oil capacity: 16.9 fl. -
Page 4: Introduction
INTRODUCTION ® Thank You for Purchasing a PowerSmart Product. This manual provides information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of ® the information in this manual. PowerSmart reserves the right to change this product and specifications at any time without prior notice. -
Page 5: General Safety Procedures
GENERAL SAFETY PROCEDURES For any questions regarding the hazard and safety notices listed in this manual or on the product, please call (800) 791-9458 Mon-Fri 9-5 EST before using the engine. DANGER: CARBON MONOXIDE Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon monoxide (CO). -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. I. GENERAL OPERATION 1. Read, understand, and follow instructions and warnings in this manual and on the machine, engine and attachments. - Page 7 V. SLOPE SPECIFIC Slopes are a major factor related to accidents. Operation on slopes requires extra caution. 1. Travel in the manufacturer recommended direction on slopes. Use caution while operating near drop offs. 2. Avoid mowing wet grass. (Poor footing could cause a slip and fall accident.) 3.
-
Page 8: Warning Label Instructions
WARNING LABLE INSTRUCTIONS Read carefully the manual before use. Danger-flying objects; keep safe distance from the machine as long as the engine is running. Do not open or remove safety shields while engine is running. Pay more attention to the operator’s hands and feet to avoid injury Do not open or remove safety shields while engine is running. - Page 9 Look behind while backing Steep slope hazard When mowing,please wear the glasses ad ear plugs to defend the operator himself When repairing, please pull off the spark plug boot, then repair it according to the operational manual Hot surfaces Keep bystanders away. Safety label found on the lawn mower: KEEP HANDS AND FEET AWAY.
-
Page 10: Knowing Your Lawn Mower
KNOWING YOUR LAWN MOWER Please use the illustration below to familiarize yourself with the location and function of the components that control of your lawn mower. Recoil starter handle Cutting height adjustment lever Grass catcher Primer bulb Cutting height adjustment lever Fuel tank cap Rear wheel Rear discharge door... -
Page 11: Lawn Mower Preparation
LAWN MOWER PREPARATION The following section describes steps necessary to prepare the lawn mower for use. If after reading this section, you are unsure about how to perform any of the steps please call (800) 791-9458 Mon-Fri 9-5 EST for customer service. Failure to perform these steps properly can damage the lawn mower or shorten its lifespan. - Page 12 3. Lock the cable to the lower handle using cable clip. Cable Clip 4. Insert the recoil starter handle cable into the hook provided on the upper handle. You must engage the start/stop control to release the recoil starter handle. Start/Stop Control Recoil starter handle SIDE DISCHARGE CHUTE...
-
Page 13: Operation
GRASS CATCHER Attach grass catcher 1. Lift mower rear discharge door. 2. Place grass catcher into the slots in the handle brackets. 3. Release the rear discharge door so that it rests on the grass catcher. ADJUSTING THE CUTTING HEIGHT Warning! Cutting height adjustments should only be performed after the engine and blades have come to a complete stop! It is always best to begin cutting your lawn with a higher deck height to prevent scalping your lawn. - Page 14 Adding Gasoline 1. Remove the fuel tank cap and check fuel level. 2. If the level is too low, refuel the tank, remember adding fuel not over the fuel upper level. Warning: 1. Gasoline is extremely flammable and is explosive under certain conditions. 2.
- Page 15 START THE ENGINE To start the engine, perform the following steps: 1. Check the oil and fuel levels. 2. Press the primer bulb 3 times. 3. Engage the engine Start/Stop Control and simultaneously pull on the recoil starter. Pull on the recoil starter handle slowly until a slight resistance is felt, then pull quickly to start the engine.
-
Page 16: Maintenance
Caution: Do not remove side discharge cover at any time. USING AS A REAR BAGGER To use the grass catcher to collect clippings while you are operating the mower. 1. Attached grass catcher following instruction in the lawn mower preparation. Grass clippings will automatically collect in bag as you run the mower. - Page 17 MOWER BLADE To ensure safe operation, have all blade sharpening, balancing and mounting work carried out by an authorized service center. To achieve optimal results, we recommend having the blade checked once a year. If, in spite of all caution, the blade comes into contact with an obstacle, switch off the engine immediately and pull off the spark plug connector.
- Page 18 6. Reinstall the sponge-like element in the air cleaner casing and reinstall the cover. CAUTION: running the engine with dirty, damaged or missing air cleaner element will cause the engine to wear out prematurely. SPARK PLUG MAINTENANCE The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped.
-
Page 19: Storage
STORAGE CAUTION: Never place any type of storage cover or tarp on the MOWER while it is still hot. If the MOWER is being stored for extended periods of time (30 days or more), drain fuel tank and carburetor bowl. When storing the mower for extended periods of time: 1. -
Page 20: Exploded View & Parts List
EXPLODED VIEW AND PARTS LIST... - Page 21 Item Stock# Description Item Stock# Description 303190311 Engine 203050387 8 inch Left wheel 303020241 303030087 Bolt M8x25 Lock nut M6 203050381 Side discharge deflector 203050388B Rear base 303090066A Spring pin shaft 203050389 Rear block cover 303130335 Torsional spring 303010095 Tapping screw Rear cover torsional 303160456 Side discharge bracket...
- Page 22 ENGINE EXPLODE VIEW AND PART LIST...
- Page 23 Item Stock # Description Item Stock # Description CRANKCASE E01-1 11310-Z3C0110-00A0 E04-3 90408-Z030210-0000 WASHER， FLAT SUBASSEMBLY. E01-2 90682-Z240110-0000 SEAL, OIL E04-4 14200-Z2P0110-00A0 CAMSHAFT ASSY. E01-3 90682-Z030210-0000 SEAL, OIL E04-5 13122-Z240110-00A0 CLIP, PISTON PIN E01-4 90103-0410-51 SCREW E04-6 13121-Z240110-00A0 PIN, PISTON E01-5 11321-Z2P0110-0000 PIECE, BREATH...
- Page 24 To make a claim under this Limited Warranty, you must return the entire power tool product; transportation prepaid, to PowerSmart. The owner must include a legible copy of the original receipt, which shall list the date of purchase, along with the company’s name where the product was purchased.
