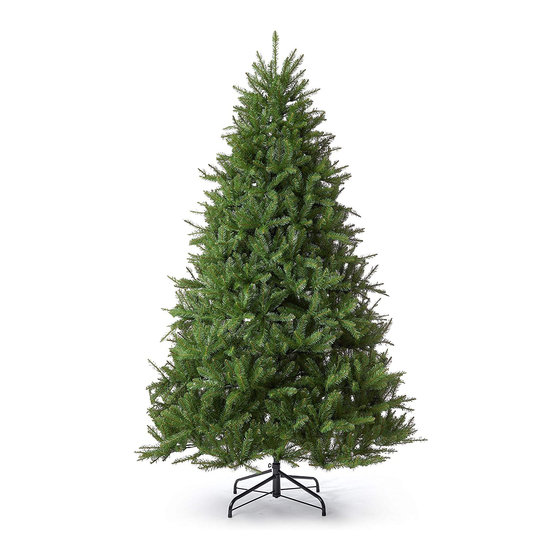

Polygroup TG76P3793L05 Assembly Instructions

TREE ASSEMBLY INSTRUCTIONS

Congratulations on purchasing your new tree from
Quick Fold TM technology to make set up and storage quick and easy. Carefully follow the instructions below
on how to quickly and easily set up your new tree.
1. Before you start to assemble your tree, choose an appropriate location near a wall outlet.
2. Assemble the tree stand and place on a level surface. (See Fig. A)
Fig. A - Tree Stand Assembly
Fig. B - Tree and Light Assembly
Section 1
3. Each tree section is numbered with a tag. Please identify all sections before assembling.
4. Assemble the tree from bottom to tree top. Start with the bottom section and remove the protective cap
before inserting into the assembled stand. Make sure the pole is firmly inserted and secured into the stand.

SET UP

1
Section 2
Section 3
Section 1
Remove tree stand and tree sections
from box.
MODEL #: TG76P3793L05
Polygroup®!
Click
Section 3
Section 2
2
Insert Section 1 into the tree stand.
This tree features Quick Set® and
Pull apart the legs of the stand so that they
are snapped into an x-shape, place the tree
stand on a level surface.
To close the stand, press the metal button
and fold the legs together.
*Electrical Rating For The Tree
(For Indoor Use Only)
Input:120VAC, 60Hz, 0.16A
Output: 29V DC 0.28A
Do Not Tamper
Internal Parts
Open the
protective
cover
Do Not Tamper
Internal Parts
Open the
protective
cover
3
Cinch Clip
B
C
Cinch
PULL HERE
Handle
A. Locate "Pull Here" tab and
corresponding Cinch Handle
B. Hold Cinch Clip firmly with one hand
and press down on clip
C. With Cinch Clip depressed, pull clip
away from tree until all branches are
released
Adaptor
To Be Plugged
Into Wall
Outlet
A
