- Page 1 PBP-04 pedal power supply User manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 08-03-2017 RV...
- Page 2 'Box contents' are included in the package. In the event that the PBP-04 does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your dealer for assistance.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Fazley cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 - Inspect the device's housing frequently, and always just before use. Avoid operating the device if there are large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good condition. Contact your dealer or a qualified technician if you are unsure about the state of the device.
-
Page 6: Device Overview

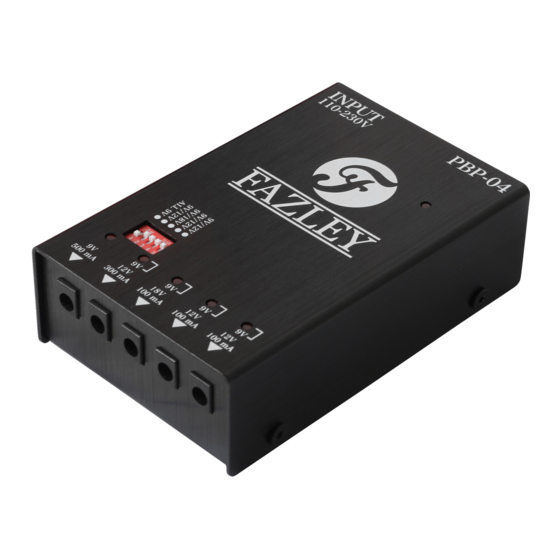

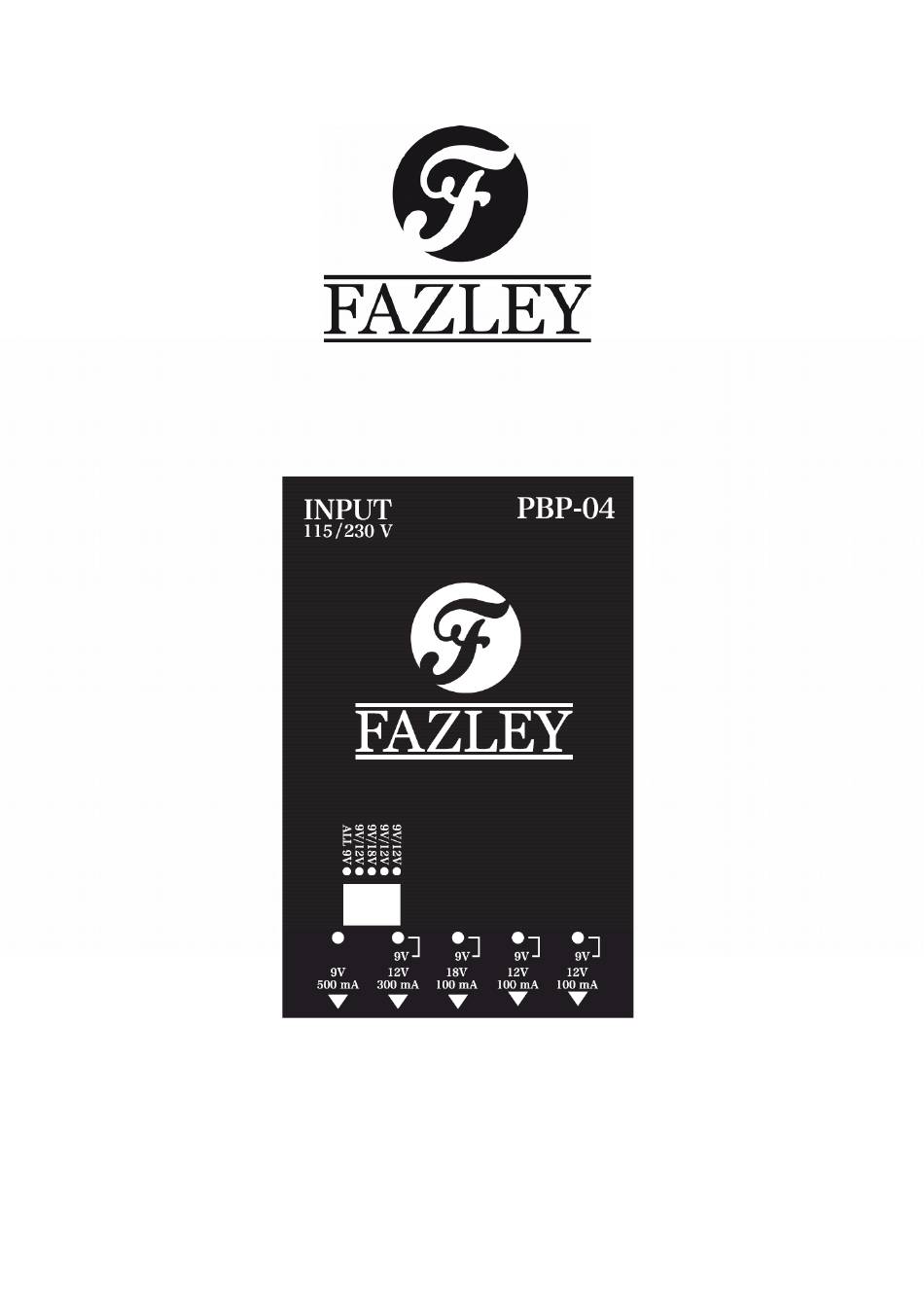

Device overview 1. 115 / 230V AC power input via IEC C14 2. dip switches 3. outputs for effects pedals The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 08-03-2017 RV... -
Page 7: Operating The Device
Operating the device The Fazley PBP-04 is a practical pedal power supply designed to power(guitar)effects pedals. By using a central power supply unit like this one, each individual guitar pedal does not require a separate power adapter and mains socket. - Page 8 100 mA output because this will overload the output. The outputs on the PBP-04 are all centre-negative. This means that the inner conductor of the connector for the output cables is negative. The outer part of the connector that you can see is positive.
- Page 9 Solving pedal power supply problems If you have a problem with your pedal power supply, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common pedal power supply problems, but it does not and cannot cover every eventuality.
-
Page 10: Specifications
- output voltage per port can be changed using the dip switches - total output capacity: 500 mA Technical data: - type: PBP-04 - input: 115 / 230V AC, 50/60 Hz - power consumption: 18 W - starting current: 500 mA...
