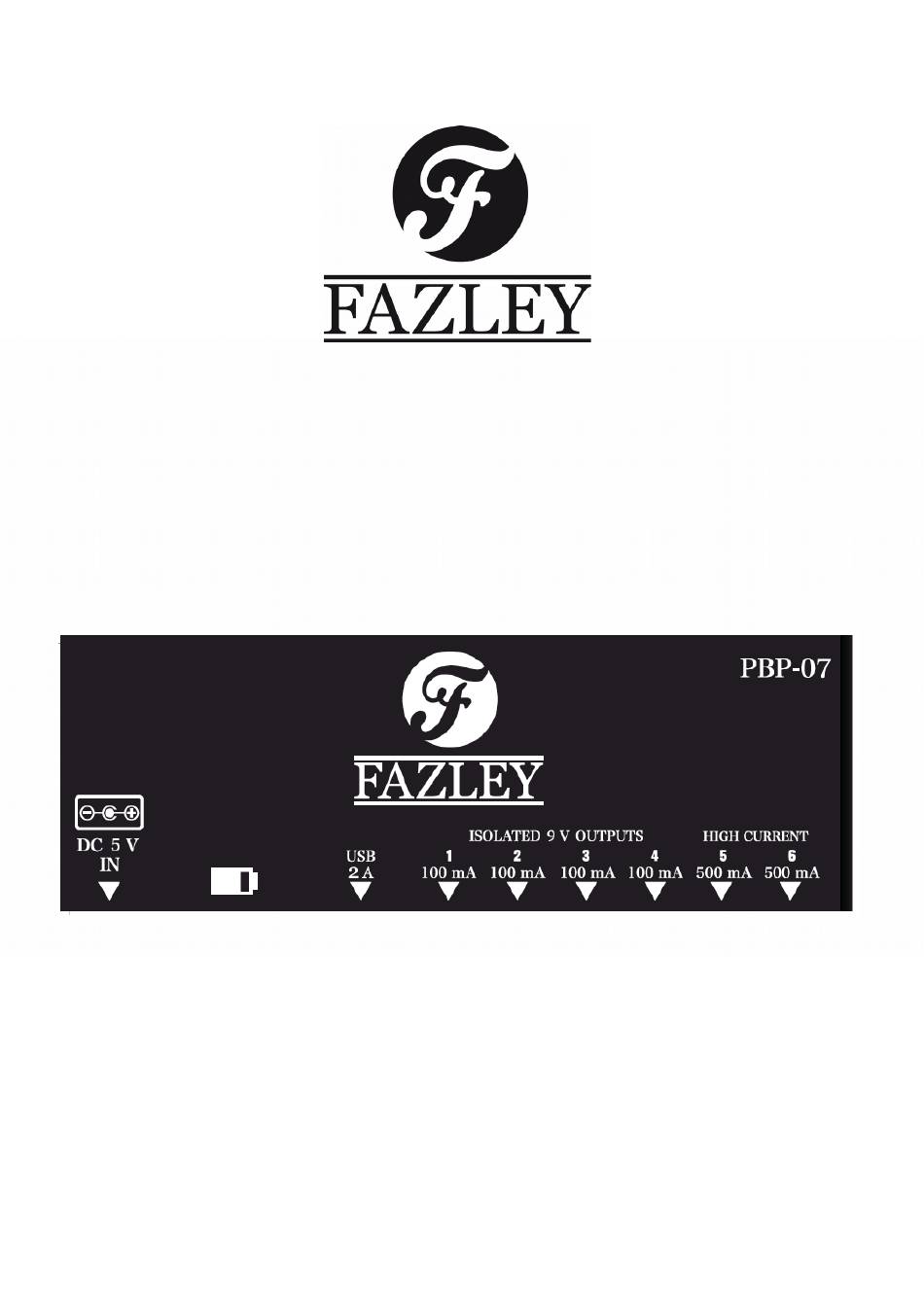

- Page 1 PBP-07 Pedal Power Supply with Built-in Battery User manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 08-03-2017 RV...
- Page 2 'box contents' are included in the package. In the event that the PBP-07(-UK) does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your dealer for assistance.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Fazley cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Battery instructions and warnings Battery use and lifespan The Fazley PBP-07 is delivered with a built-in lithium-battery. This battery provides the necessary voltage to power the device without the need to plug it into a mains socket. After unpacking the pedal power supply, it's recommended to test it with an effects pedal by first The information in this user manual is subject to change at any time without notice.
- Page 6 Please bear in mind that this type of battery is not designed to be (almost) completely discharged. Should the performance of the PBP-07 decrease, connect it to the mains so the battery can charge.
-
Page 7: Device Overview

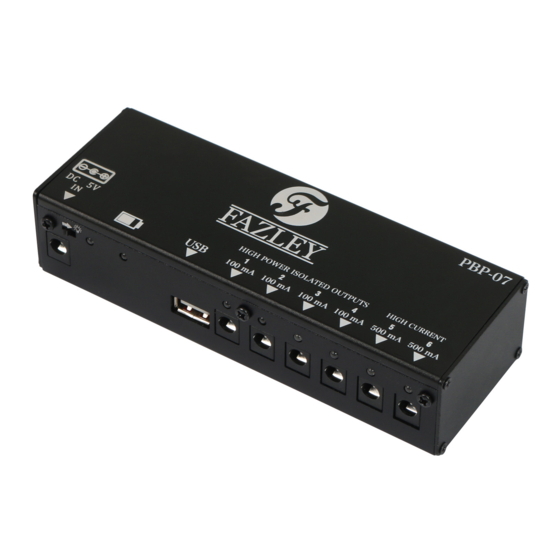

Device overview 1. input for power adapter 2. battery status LED 3. USB output, max. 2 A 4. effects pedal outputs 1-4, max. 100 mA 5. effects pedal outputs 5-6, max. 500 mA The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: -... -
Page 8: Operating The Device
The PBP-07 has a built-in battery which means your pedal board can function without being plugged into a mains socket. This is practical for short performances that require a fast setting up and breaking down time, for example, or when other power supplies are causing problems on the audio signal due to unbalanced, unprotected audio signals. - Page 9 The outputs on the PBP-07 are all centre-negative, which means that the central conductor of the cable's output plug is negative and the part you can see, the barrel, is positive. This is also indicated per output on the pedal power supply unit itself, and a similar indication is probably on the effects pedal as well.
- Page 10 to solve all possible interference issues with this user manual. Should you experience unwanted interference, the cause is usually a ground loop. To find out where the interference is coming from, it's recommended to alter the order of effects pedals in your chain, replace cables, or remove certain pedals until you find the cause of the problem.
- Page 11 Solving pedal power supply problems If you have a problem with your pedal power supply, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common pedal power supply problems, but it does not and cannot cover every eventuality.
- Page 12 properly is connected properly to the effects pedal. Exchange the pedal and the cables to find the cause of the problem. Major decrease in battery Battery is defective or has If the maximum lifespan of lifespan, the device can no reached its maximum the battery has been longer be battery-powered...
-
Page 13: Specifications
- output 5 - 6: 9V DC, 500 mA max. - USB port: 5V DC, 2000 mA max. Technical data: - type: PBP-07 - connected load power adapter to mains: 100 – 240V AC, 50/60 Hz - connected load power pedal power supply: 5V DC, 2000 mA...
