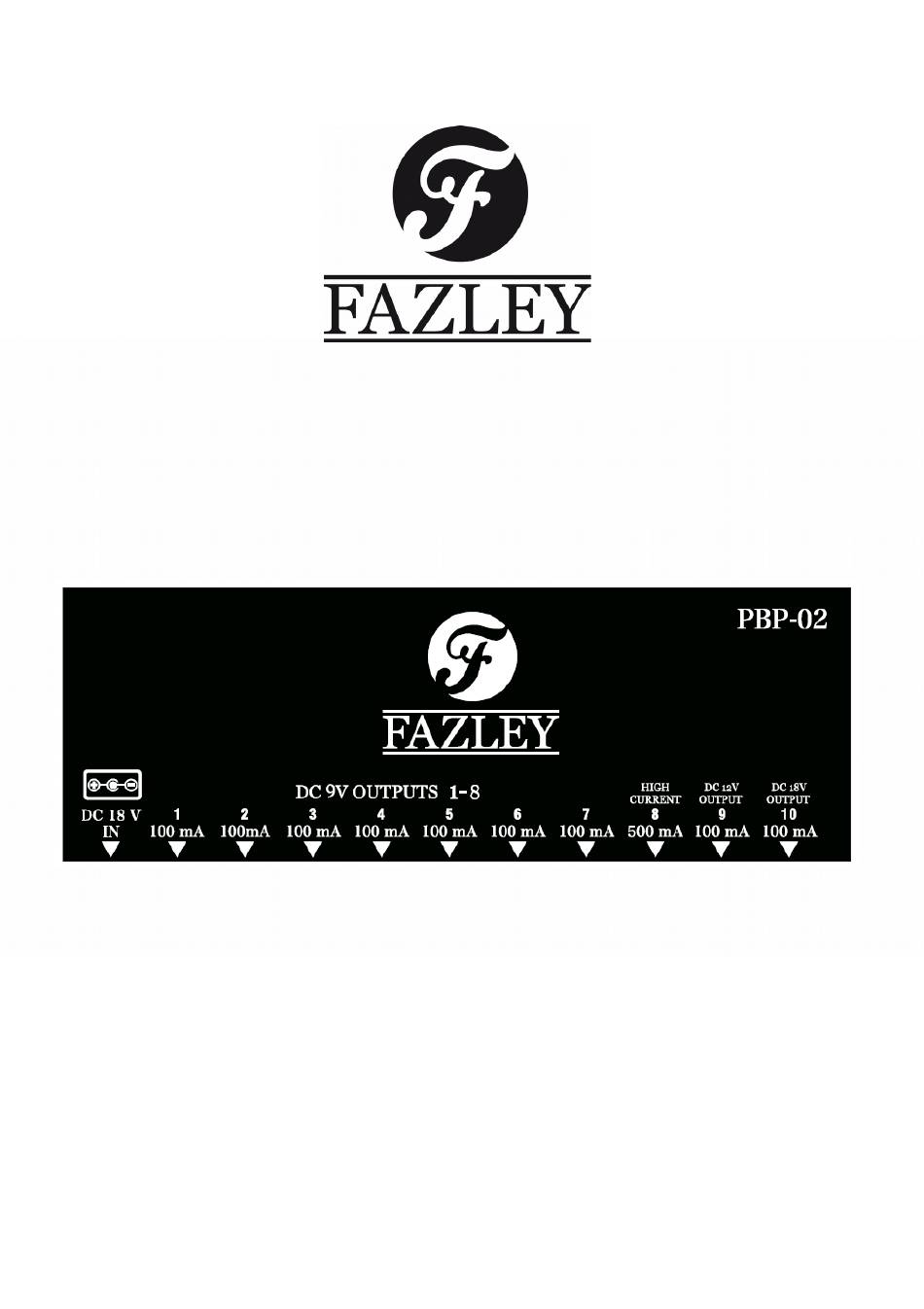

- Page 1 PBP-02(-UK) pedal power supply User manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 08-03-2017 RV...
- Page 2 Introduction Thank you for purchasing this Fazley pedal power supply. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer. Please be sure to check that all of the parts and accessories listed below under 'Box contents' are included in the package.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Fazley cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 device if there are large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good condition. Contact your dealer or a qualified technician if you are unsure about the state of the device. - Check the device and the screws for corrosion.
-
Page 6: Device Overview

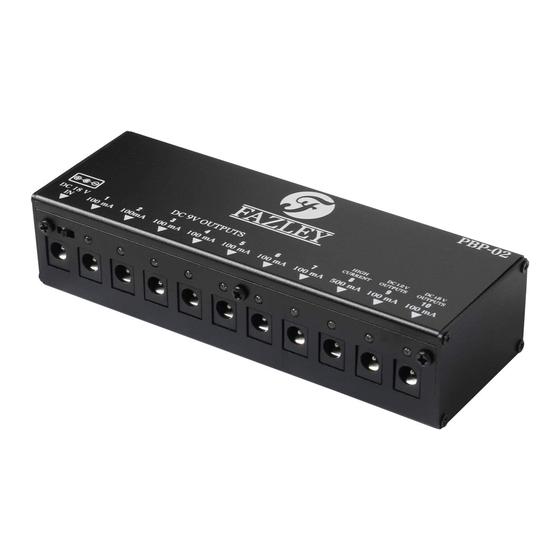

Device overview 1. 18V DC input for included power adapter (EU or UK) 2. Output 1 to 7: 100 mA output for standard effects pedal 3. Output 8: high-capacity 500 mA output for digital effects pedals 4. Output 9 + 10: 18V DC, 100 mA output The information in this user manual is subject to change at any time without notice. -
Page 7: Operating The Device
Operating the device The Fazley PBP-02 is a practical pedal power supply designed to power (guitar)effects pedals. By using a central power supply unit like this one, each individual guitar pedal does not require a separate power adapter and mains socket. - Page 8 The outputs on the PBP-02 are all centre-negative. This means that the inner conductor of the connector for the output cables is negative. The outer part of the connector that you can see is positive. This information is also shown on each of the power supply's outputs and your effects pedals should show similar information.
- Page 9 Solving pedal power supply problems If you have a problem with your pedal power supply, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common pedal power supply problems, but it does not and cannot cover every eventuality.
- Page 10 effects pedal. Exchange the pedal and the cables to find the cause of the problem. The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 08-03-2017 RV...
-
Page 11: Specifications
– 1x 9V DC, 500 mA output – 2x 18V DC, 100 mA output Technical data: Power adapter: – type: PBP-02 adapter – power supply: 100-240V AC, 50/60 Hz – power consumption: 24 W – starting current: 500 mA – nominal current: 240 – 100 mA –...
