- Page 1 PBP-06 Pedal Power Supply User manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 08-03-2017 RV...
- Page 2 'Box contents' are included in the package. In the event that the PBP-06 does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your dealer for assistance.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Fazley cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 - Inspect the device's housing frequently, and always just before use. Avoid operating the device if there are large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good condition. Contact your dealer or a qualified technician if you are unsure about the state of the device.
-
Page 6: Device Overview

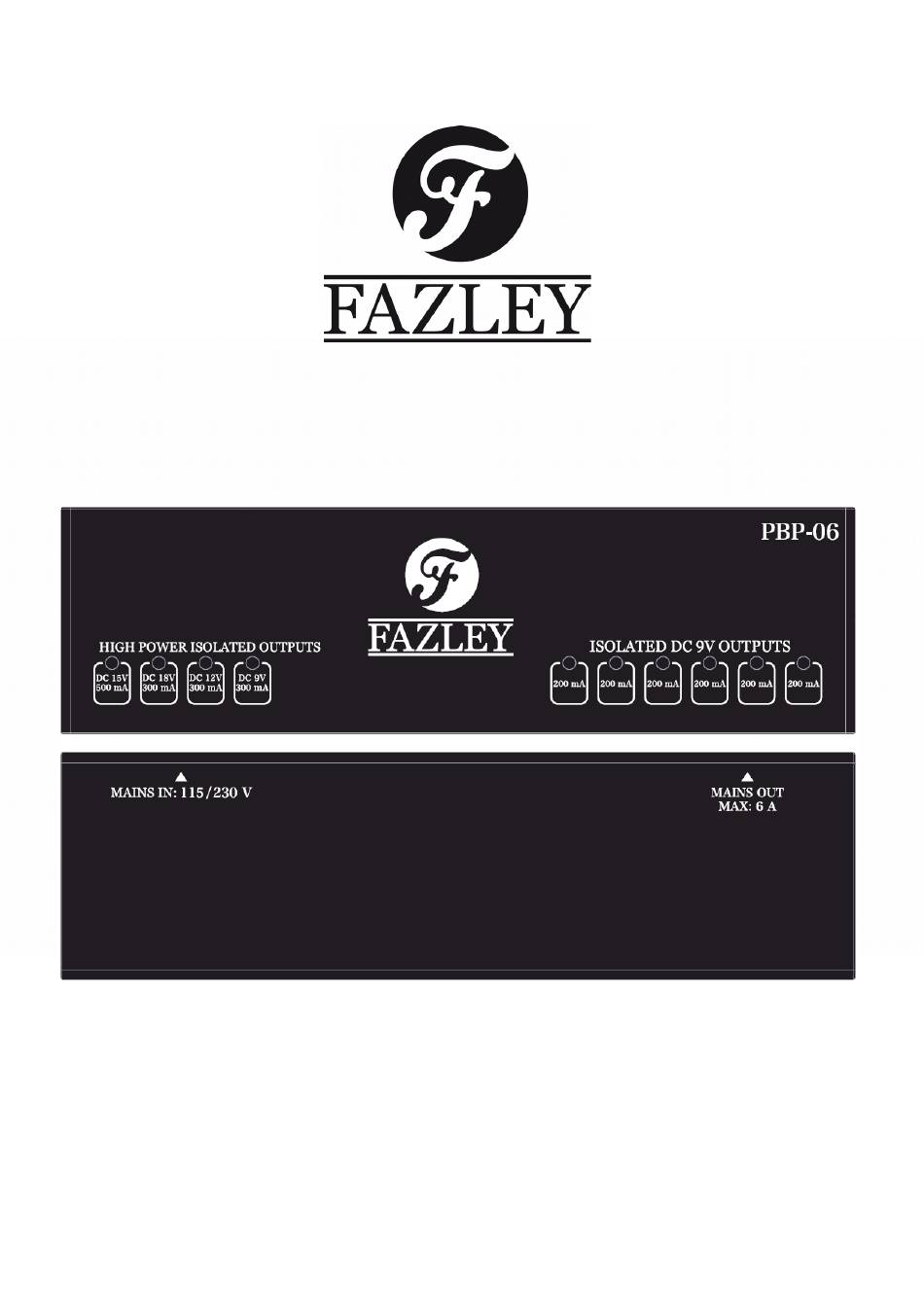

Device overview 1. high-power outputs (1x 500, 3x 300 mA) 2. low-power outputs (200 mA) 3. power input via IEC C14 and fuse holder 4. power output via IEC C13, 6A max. The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: -... -
Page 7: Operating The Device

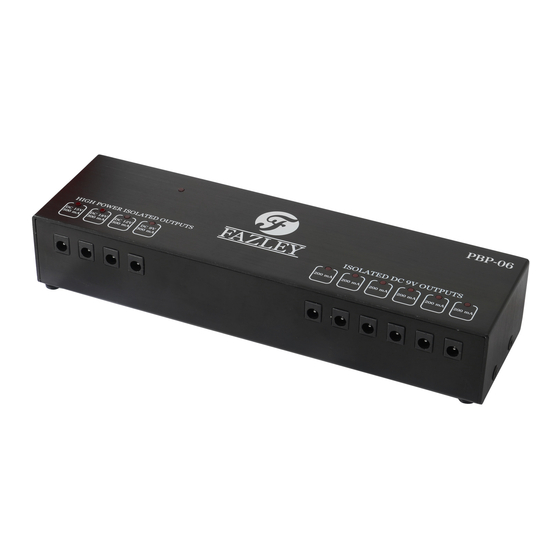

Operating the device The Fazley PBP-06 is a practical pedal power supply designed to power (guitar)effects pedals. One central power supply unit like this one means each individual guitar pedal is not required to have a separate power supply or mains socket. - Page 8 Power output The power output on the PBP-06 is fed directly from the input and protected by the same fuse. It can be used to connect a guitar amplifier or peripheral equipment that can not be powered by one of the low-voltage outputs.
- Page 9 Solving pedal power supply problems If you have a problem with your pedal power supply, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common pedal power supply problems, but it does not and cannot cover every eventuality.
-
Page 10: Specifications
- output 4: 9V DC, 300 mA - output 5-10: 9V DC, 300 mA - 230V DC link output, max. 6 A Technical data: - type: PBP-06 - input: 115 / 230V AC, 50/60 Hz - power consumption: 55 W - starting current: 1.2 A...
