Delfield 204 Specifications

Top is 18-gauge stainless steel, has 1.37" (3.49cm) overhang all around.
Glass filler is 9.5" (24.1cm) high, over die-stamped drain opening fitted with
chrome-plated wire strainer. Ice bin opening is die-stamped with .19" (.48cm)
raised edges, measures 15.12" x 10.5" (38.4 x 26.7cm), has one-piece
20-gauge stainless steel lift-off cover.
Liner of ice bin is high-impact ABS plastic, has rounded corners and is
pitched to 1" (2.54cm)-diameter drain. Bin is insulated all around with high-
density polyurethane. Ice bin holds 45 pounds of ice.
Exterior body is 24-gauge galvanized steel.
Cutout dimensions are 21" (53.3 cm) x 17.17" (45.1 cm).

Optional Accessories

•
Pitcher filler in place of glass filler.
This option increases the height of the faucet from
9.5" (24.1 cm) to 13.5" (34.3 cm)
Model 204
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

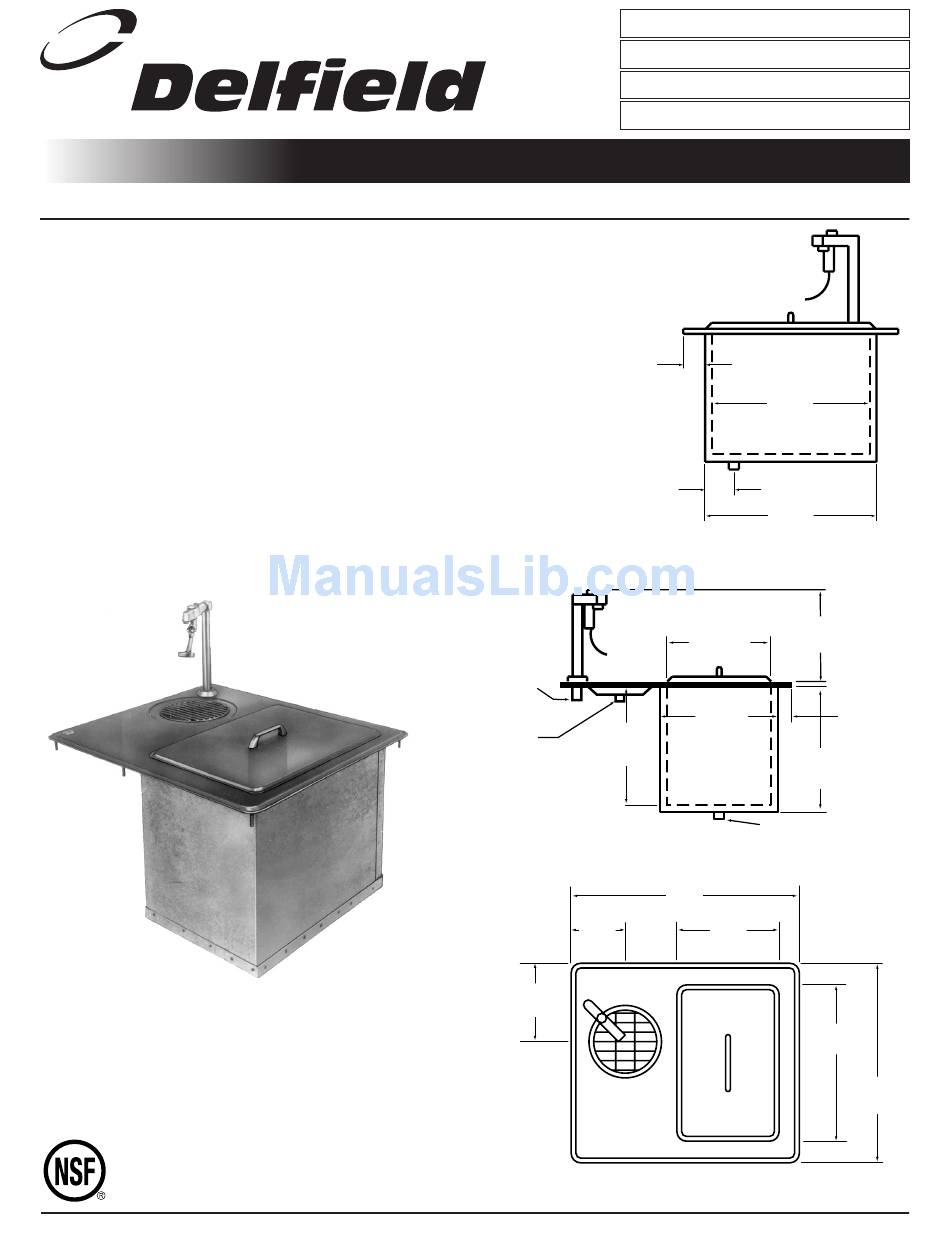

ELEVATION VIEW

.5" I.P.S.
COLD WATER
CONNECTION
.63" DIA.
12"
DRAIN TUBE
(30.5 cm)
CONNECTION

SIDE VIEW

5.69"
(14.5 cm)
8.25"
(21 cm)

PLAN VIEW

PROJECT
ITEM #
QUANTITY
APPROVAL

WATER AND ICE STATION

2.12"
(5.39 cm)
15.25"
(38.7 cm)
3"
(7.6 cm)
16.75"
(42.5 cm)
10.25"
(24.1 cm)
(26 cm)
12.25"
(31.1 cm)
(33 cm)
1" (2.54 cm) I.P.S.
DRAIN CONNECTION
24"
(61 cm)
11.88"
(30.2 cm)
DATE
204
9.5"
1.37"
(3.5 cm)
13"
16.44"
(41.8 cm)
21"
(53.3 cm)
