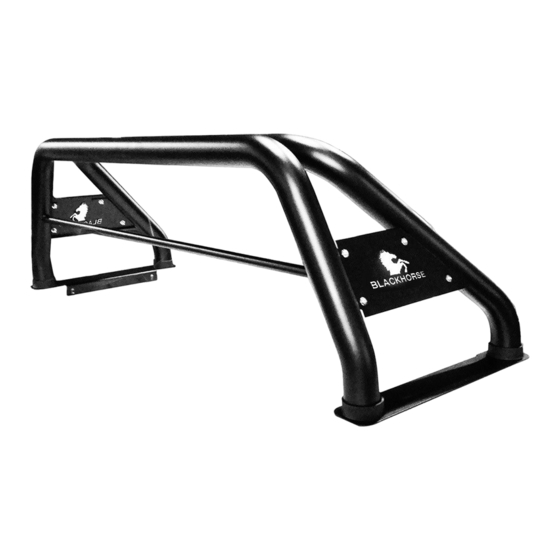

- Page 1 TONNEAU RAISED BASE FOR STAINLESS STEEL CLASSIC ROLL BAR FOR 2019-2020 FORD RANGER INSTALLATION INSTRUCTIONS TONNEAU RAISED BASE FOR STAINLESS STEEL CLASSIC ROLL BAR FOR FORD RANGER 2019-2020 PART # RB08SS Page 1 of 5...
- Page 2 TONNEAU RAISED BASE FOR STAINLESS STEEL CLASSIC ROLL BAR FOR 2019-2020 FORD RANGER Before Installation Please read the instruction completely for easy installation, which will also help you to avoid scratches or other potential damages to your appealing car. ...
- Page 3 TONNEAU RAISED BASE FOR STAINLESS STEEL CLASSIC ROLL BAR FOR 2019-2020 FORD RANGER ○ ○ Gum cover Allen wrench S=5 ○ ○ Left support bracket Right support bracket ○ ○ Button head allen bolts M12_40 T bolt 3(M10x35 button head allen bolts)(50x15-25-5) ○...
- Page 4 TONNEAU RAISED BASE FOR STAINLESS STEEL CLASSIC ROLL BAR FOR 2019-2020 FORD RANGER ○ ○ Spring washer D10 Hex nut M10 ○ PVC plastic block φ10(δ0.7*40*40) Installation Steps ○ ○ Step1: Assemble with standard parts. Lock all the standard parts after adjust the position. ○...
- Page 5 TONNEAU RAISED BASE FOR STAINLESS STEEL CLASSIC ROLL BAR FOR 2019-2020 FORD RANGER Step2: Assemble decoration plates and brackets with pipes. Lock all the standard parts after adjust the position. ○ ○ ○ ○ ○ ○ Use accessories ○ Use accessories ○...
