Definitive Technology UIW RCS II Owner's Manual page 10

WOODSCREW
(6 PLACES)
Troubleshooting Your UIW RCS II Speakers
If you experience any difficulties with your UIW RCS II Loudspeakers,
try the suggestions described below. If you are still having problems, please
consult your Definitive Technology authorized dealer for assistance.
• Make sure all your system interconnections and power cords
are solidly in their place.
• Check to be sure that the power cords and/or speaker wires have
not been damaged.
• Many amplifier/receivers have sophisticated internal protection
circuitry. If for some reason the protection circuitry is tripped,
please turn down the system's volume and wait five minutes
before trying the system again.
10

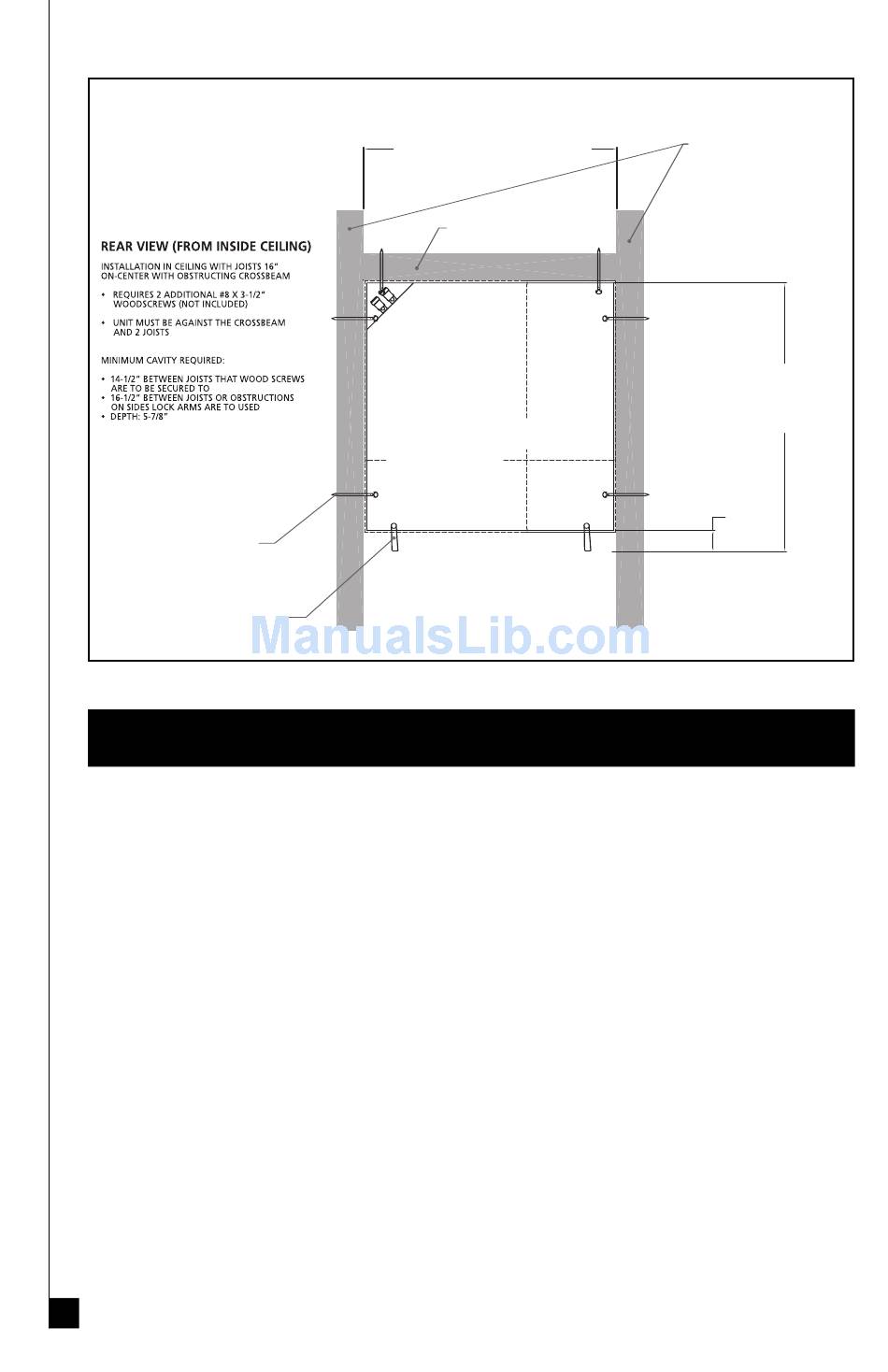

14-1/2" MINIMUM CAVITY SIZE BETWEEN STUDS
14-3/8" TEMPLATE CUT-OUT
LOCK ARM
(2 PLACES)
HOLDING WOODSCREWS
EXISTING CROSSBEAM
CAUSING OBSTRUCTION
14-3/8"
TEMPLATE
CUT-OUT
EXISTING CEILING JOISTS
16" ON-CENTER
15-3/8"
MINIMUM CAVITY
SIZE REQUIRED BETWEEN
CROSSBRACES TO
CLEAR LOCK ARMS.
UNIT MUST BE PLACED
AGAINST CROSSBEAM.
1-1/4"
MINIMUM
CLEARANCE
REQUIRED FOR
LOCKARMS
Diagram 3
