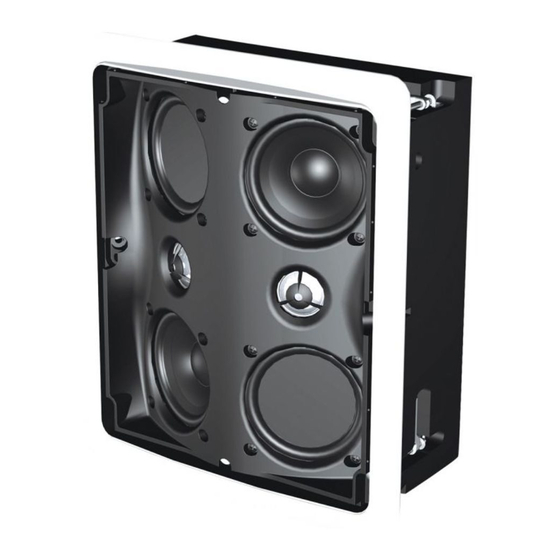

UIW RSS II
Reference Series In-Wall/In-Ceiling Surround Speaker
Owner's Manual
Congratulations
Congratulations on your purchase of the Definitive Technology
UIW RSS II Loudspeaker. This reference quality loudspeaker
provides the highest level of sonic performance and construction
quality and is designed for easy flush-mount installation in
ceilings or walls of homes and commercial spaces. Six years of
intensive research and development by Definitive engineers,
working in collaboration with one of the world's leading industrial
design firms, has produced the finest architectural loudspeakers on
the market. The beautiful upscale designer styling of this model
is perfect for the finest homes belonging to the most
discriminating homeowners.
Advertisement
Related Manuals for Definitive Technology UIW RSS II
Summary of Contents for Definitive Technology UIW RSS II
- Page 1 Owner’s Manual Congratulations Congratulations on your purchase of the Definitive Technology UIW RSS II Loudspeaker. This reference quality loudspeaker provides the highest level of sonic performance and construction quality and is designed for easy flush-mount installation in ceilings or walls of homes and commercial spaces. Six years of intensive research and development by Definitive engineers,...
- Page 2 Please unpack your system carefully. Save all cartons and packing materials in case you move or need to ship your system. Record the serial numbers found on the carton of the UIW RSS II Loudspeakers in the appropriate place on your warranty card.
- Page 3 UIW RSS II Applications The UIW RSS II is designed to be mounted in ceilings or in walls as a rear or side surround speaker in stealth home theater systems of the highest quality. In addition, they can be used as a front left, right or center main speaker in a home theater or as a left or right stereo speaker.
-
Page 4: Installation Procedure Overview
We strongly recommend using a qualified, professional installer who is knowledgeable of local building codes. • The UIW RSS II is designed for both In-Wall and In-Ceiling mounting. • For In-Ceiling mounting, you will need to shim (or frame in the enclosure) with appropriate framing material. - Page 5 We strongly recommend using a qualified, professional installer who is knowledgeable of local building codes. • The UIW RSS II is designed to be mounted vertically In-Wall, and either in-line with or at 90° to joists In-Ceiling. • For In-Ceiling mounting, you will need to shim (or frame in the enclosure) with appropriate framing material along one or both of the long sides of the speaker.
- Page 6 Step-by-Step Installation Hole location options and requirements • In-Wall installation for studs spaced 16" on-center (or more): – Place template at least 1 Template does not need to be centered between studs. – Trace around template with pencil. – Cut hole. See Diagram 1, page 10 for reference.
-
Page 7: Connecting The Speaker
• Fish wiring out of hole. • Connect the speaker wires to the UIW RSS II taking care to make red to red (+) and black to black (-) terminal connections. • Refer to your amplifier or receiver loudspeaker wiring instructions, turn... - Page 8 Please note that the pivoting lock arms are not designed to support the weight of the speaker in In-Ceiling installations. They only provide a secondary support and are there to pull the speaker tight to the ceiling and prevent it from rattling. Do not use them for supporting the speaker in In-Ceiling installations.
- Page 9 Diagram 1 Diagram 2...
- Page 10 Diagram 3 Diagram 4...
- Page 11 Troubleshooting Your UIW RSS II Speakers If you experience any difficulties with your UIW RSS II Loudspeakers, try the suggestions described below. If you are still having problems, please consult your Definitive Technology authorized dealer for assistance. • Make sure all your system interconnections and power cords are solidly in their place.
-
Page 12: Technical Assistance
Service and warranty work on your Definitive loudspeakers will normally be performed by your local Definitive Technology dealer. However, if you wish to return the speaker to us, please contact us first, describing the problem and requesting authorization as well as the location of the nearest factory service center. -
Page 13: Limited Warranty
5-Years for Drivers and Cabinets, 3-Years for Electronic Components Definitive Technology warrants to the original retail purchaser only that this Definitive Technology Loudspeaker Product (the “Product”) will be free from defects in materials and workmanship for a period of five (5) years covering the drivers and cabinets, and three (3) years for the electronic components from the date of the original purchase from a Definitive Technology Authorized Dealer.
