SECURECOM V-4052D Installation Manual

V‑4052D INDOOR/OUTDOOR HD
VIDEO CAMERA
Installation Guide

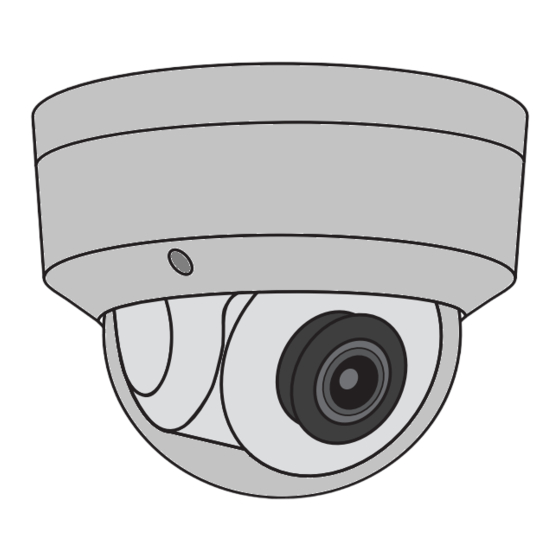

Figure 1: V‑4052D Camera
DESCRIPTION
The V‑4052D is a 2 Megapixel
indoor/outdoor video camera
that allows users to view live and
recorded HD video clips in Virtual
Keypad™.
To activate the camera, you need an
active Dealer Admin account at
dealer.securecomwireless.com.
Compatibility
• Any active Virtual Keypad
account with SecureCom
Cameras & NVRs enabled
What is Included?
• One V‑4052D Camera
• Mounting Template
• Hardware Pack with Security
Torx L‑Key
1

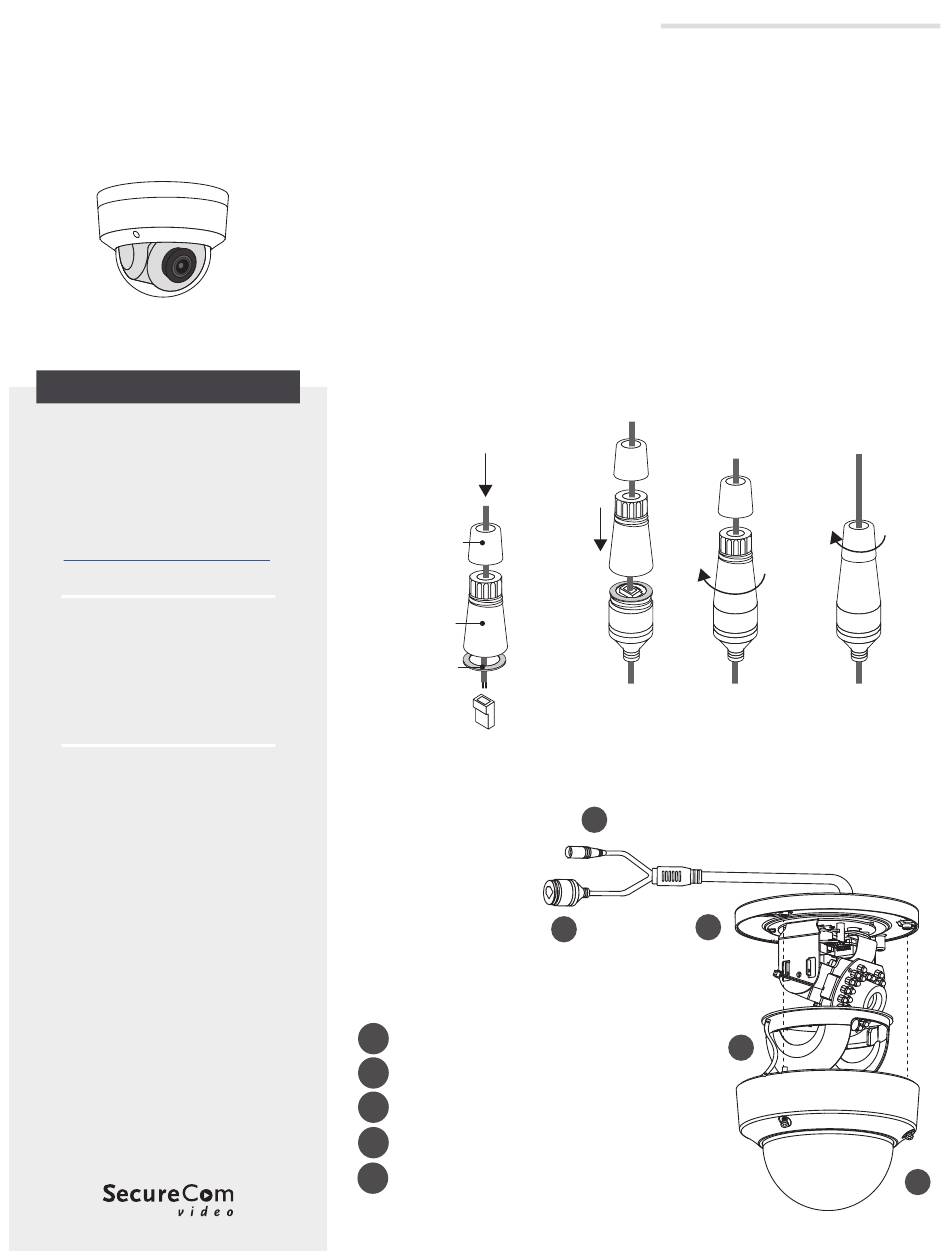

WIRE THE CAMERA
Before connecting the Ethernet cable, install the waterproof
Ethernet cap if desired. Refer to Figure 2.
Standard Power Connection
Connect a 12 VDC power source (not included) to the camera
power connector. Connect a network cable to the camera Ethernet
connector. For compatible power supplies, refer to "Accessories".
PoE Connection
Connect a network cable to the camera Ethernet connector.
Connect the cable to a PoE switch or injector.
From router/switch
End Cap
Cover
Wire
O-Ring
and
crimp,
then
plug in
to camera
Ethernet
connector
Figure 2: Installing the Waterproof Ethernet Cap
12 VDC Power Connector
A
Ethernet Connector
B
Cover
C
Safety Strap
D
Mounting Base
E
1/4
Seat
Turn
o-Ring
between
cover and
Ethernet
connector,
then slip
cover over
connector
A
E
B
D
Figure 3: Camera Details
Turn
until
tight
C
