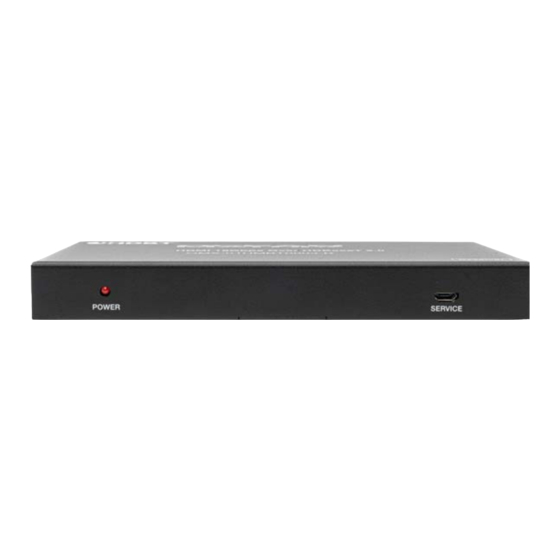

OMX-01HMBT0003-R HDBaseT 4K HDMI Receiver
1
1 Power LED Indicator
2 Factory Use Only
Application with Wall Plate Transmitter OMX-01HMBT0003-T
NOTE: This transmitter does not support KVM/USB Functions of the OMX-01HMBT0003-R Receiver
Transmitter
Front
Source
INSTALLATION & SPECIFICATIONS
2
Back
IR Control Equipment
Power
Supply
Computer w/RS232
3 Pin Connection
www.oceanmatrix.com
3
4
5
3 Plug in AC Adapter Power Supply
4 HDBaseT In—Connect to TX
5 IR-IN Port-Connect IR Cable
6 IR-Out Port-Connect IR Cable
7 HDMI Out—Connect to Display
8 USB Ports– Connect to USB device such as a mouse or keyboard
9 RS232 3-Pin Connection
Receiver
Display
Ocean Matrix
6
7
8
Equipped Device
9
RS232 3 Pin
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ocean Matrix OMX-01HMBT0003-R
Summary of Contents for Ocean Matrix OMX-01HMBT0003-R
- Page 1 7 HDMI Out—Connect to Display 8 USB Ports– Connect to USB device such as a mouse or keyboard 9 RS232 3-Pin Connection Application with Wall Plate Transmitter OMX-01HMBT0003-T NOTE: This transmitter does not support KVM/USB Functions of the OMX-01HMBT0003-R Receiver Transmitter Front Back...
- Page 2 CE, FCC Certified Dolby Digital+, Dolby TrueHD, DTS-HD Mas- ter Audio, Dolby Atmos, DTS:X Includes:(2) Mounting Ears, (1) RS232 Connector, (1) 24V/1A Power Supply Power Consumption 7.5W Dimensions (HxWxD) 0.8 x 6.8 x 3.8 in Weight 0.92 lb Ocean Matrix www.oceanmatrix.com...
- Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ocean Matrix 812 Kings Highway • Sauger es, NY 12477 www.oceanmatrix.com...
