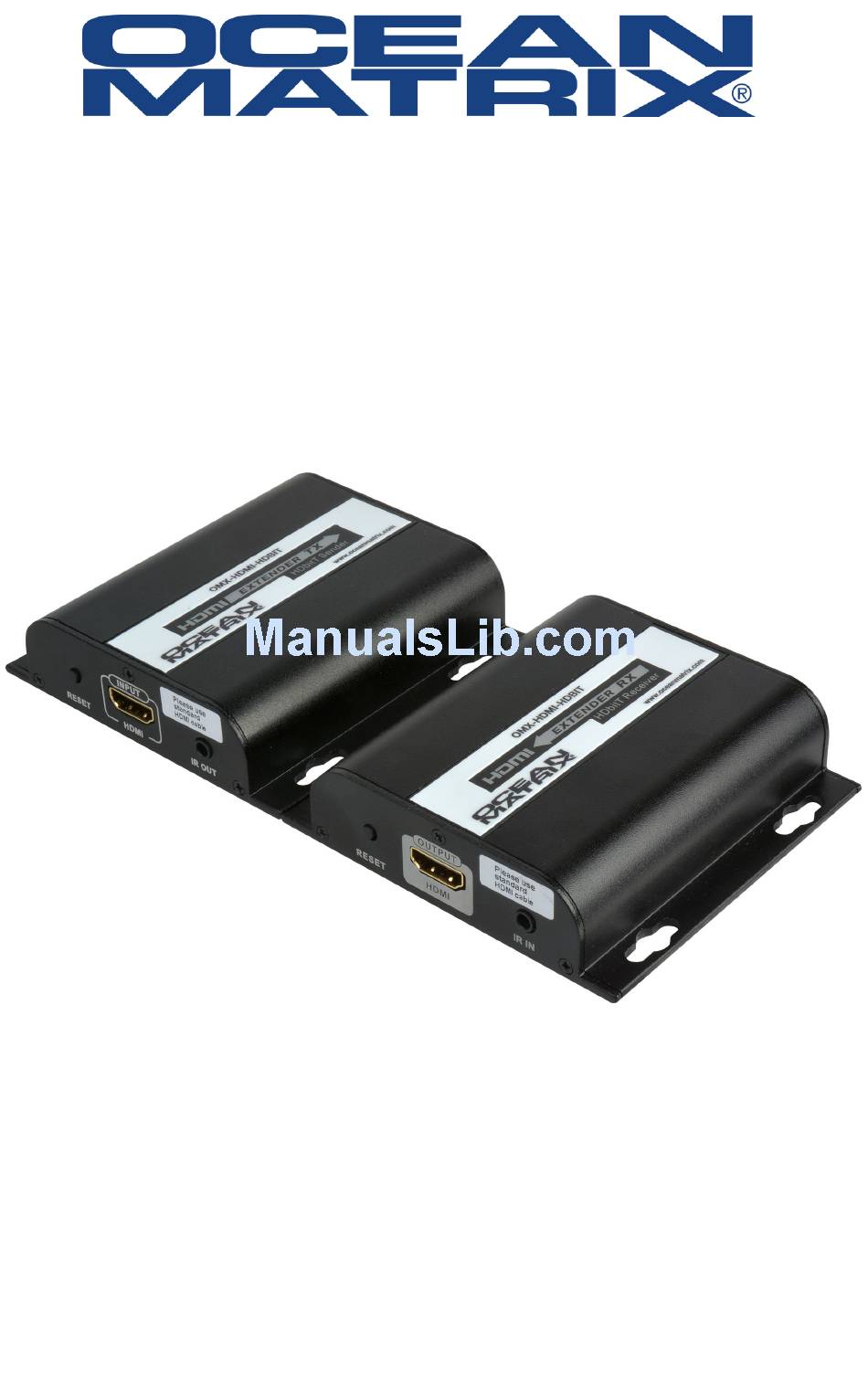

Page 1: User Manual
USER MANUAL OMX-HDMI-HDBIT HDMI over Single Cat5/5e/Cat6 Transmission System with HDbitT Technology Ocean Matrix · 812 Kings Highway Saugerties, NY 12477 www.oceanmatrix.com... -
Page 2: Hdmi Extender
OMX-HDMI-HDBIT HDMI Extender The Ocean Matrix OMX-HDMI-HDBIT extends high definition audio/ video transmission beyond the standard distances for HDMI cable limitations via HDbitT technology. This system delivers a full 1080P HDMI signal up to 394 feet over a single Cat5/5E/Cat6 network cable with or without network switches, and network routers. -
Page 3: Installation Requirements
Place the emitter of the IR blaster as close as possible to the IR receiver of the signal source device. Direct the IR remote controller of the signal source device towards the IR receiver (connected to the RX of HDMI extender), to remote control source media playback. Ocean Matrix OMX-HDMI-HDBIT Page 3... -
Page 4: Hdmi Transmitter
OMX-HDMI-HDBIT HDMI Transmitter Reset Button HDMI Signal Input IR Signal Output - connect IR blaster extension cable 5VDC Power Input Power Light HDbitT Signal Output Data Transmission Light Network Link Light Ocean Matrix OMX-HDMI-HDBIT Page 4... -
Page 5: Hdmi Receiver
OMX-HDMI-HDBIT HDMI Receiver Reset Button HDMI Signal Output IR Signal Input - connect IR receiver extension cable 5VDC Power Input Power Light HDbitT Signal Input Data Transmission Light Network Link Light Ocean Matrix OMX-HDMI-HDBIT Page 5... -
Page 6: Installation Procedures
Cat6 Network Cable—follow the IEEE-568B wiring standard: 1. Orange/White 2. Orange 3. Green/White 4. Blue 5. Blue/White 6. Green 7. Brown/White 8. Brown POINT TO POINT CONNECTION—Transmission distance up to 394 ft (120m) over single Cat6 ROUTER CONNECTION Ocean Matrix OMX-HDMI-HDBIT Page 6... -
Page 7: Troubleshooting
Check cable lengths between the TX to the switch, the switch to RX. Ensure the connection between each level is within required ranges. Press the RESET button on the TX/RX front panel, reset and reconnect. Ocean Matrix OMX-HDMI-HDBIT Page 7... -
Page 8: Safety Precautions
10. There are no user-serviceable parts inside the unit. If the unit requires service contact your authorized dealer, or an authorized repair service company. Ocean Matrix 812 Kings Highway Saugerties NY 12477 www.oceanmatrix.com...
