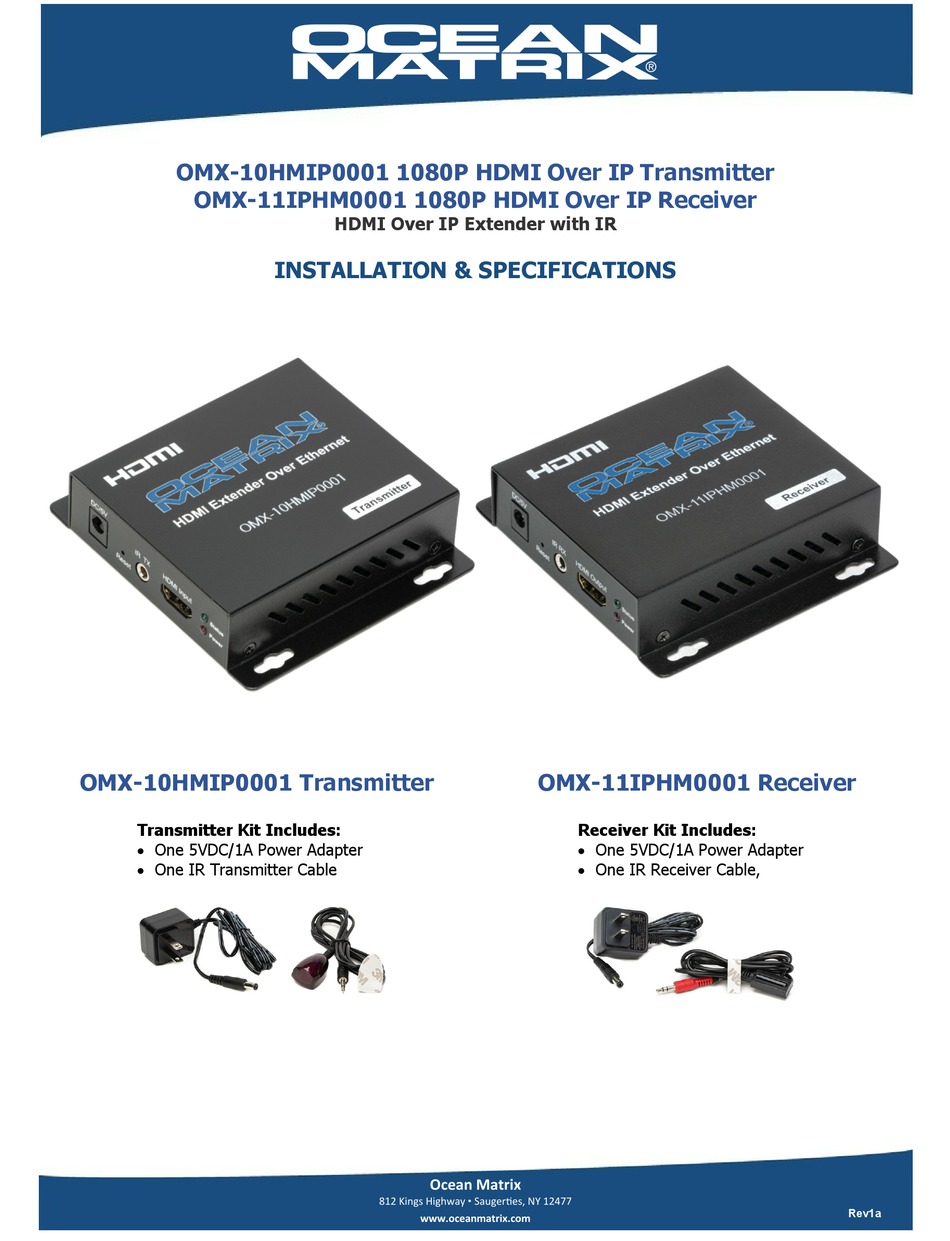

OMX-10HMIP0001 1080P HDMI Over IP Transmitter
OMX-11IPHM0001 1080P HDMI Over IP Receiver
OMX-10HMIP0001 Transmitter
Transmitter Kit Includes:
 One 5VDC/1A Power Adapter
 One IR Transmitter Cable
HDMI Over IP Extender with IR
INSTALLATION & SPECIFICATIONS
Ocean Matrix
812 Kings Highway • Sauger es, NY 12477
www.oceanmatrix.com
OMX-11IPHM0001 Receiver
Receiver Kit Includes:
 One 5VDC/1A Power Adapter
 One IR Receiver Cable,
Rev1a
