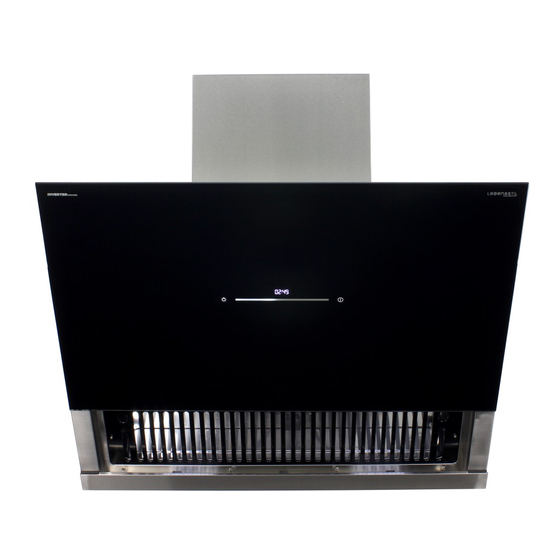

- Page 1 Cooker Hood Instruction Manual LKCHi-9303 www.lebensstilkollektion.com...
- Page 3 Thank you for choosing Lebensstil Kollektion appliance. This instruction manual is designed to help you through each step of owning your new appliance, from installation to use and maintain it. Please read it carefully before you start using your product.
-
Page 5: Table Of Contents
Content Electrical Safety Warnings & Electrical Connection Introduction Connection Technical Specification Ventilation modes Installation 5 - 6 Touch Control Panel Cleaning and Maintenance Troubleshooting... -
Page 6: Electrical Safety Warnings & Electrical Connection
Electrical Safety Warnings DO NOT handle the electricity connection points and plug with wet hands at all time. The appliance must be earthed. The power supply card shall not be in contact with any parts of the appliance that produce theat. -
Page 7: Introduction Connection
Introduction Connection Chimney Mounting Bracket Upper Chimney Cover Lower Chimney Cover Flexible Ducting Host Flow Exit Main Body Oil Filter... -
Page 8: Technical Specification
Technical Specification Input Power : 233 Watt Supply Voltage : 220v / 50Hz LEP Lamp : 3 Watts Product Size : 895 * 405 * 690 - 1275 (mm) -
Page 9: Ventilation Modes
Ventilation modes Ducted Mode (Vented Mode) In the ducted mode, air is drawn into the hood, fat are trapped by oil filters. Odors, fumes and condensation are then expelled to the outside. In this mode, only the oil filters are installed. When installing the ducted mode, connect the hood to the chimney using either a flexible or rigid hose with Ø... -
Page 10: Installation
Installation *Minimum height from hob surface: 300mm (Electric Hob) & 350mm (Gas Hob) * If installation without chimney cover, at least 3cm gap between ceiling and hood Wall Mounting 1. Determine height between cooker hob and base of hood. 2. - Page 11 Chimney assembly Upper chimney 1. Slightly widen the two sides of the upper chimney and hood them behind the mounting brackets, ensuring that they are well seated. 2. Secure the sides of the brackets using screws. Lower Chimney Slightly widen the two sides of the chimney and hook them between the upper chimney and the wall, ensuring that they are well seated.
-
Page 12: Touch Control Panel
Touch Control Panel Light Up/Down ON/OFF ON/OFF: To switch on the appliance. Touch the ON/OFF with your finger tip. Touch twice On/Off button to switch off the appliance. * All lights will go off after that. Up/Down: To adjust the fan speed by slide to the right to increase or left to reduce the level with your finger tip. -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance It is important to clean the product regularly as a build-up of grease can affect its performance or damage it and may invalidate your warranty. Do not use undiluted bleaches, products containing chlorides, wire wool or abrasive cleaners on aluminium, stainless steel, or plastic/painted parts as they can damage the appliance. -
Page 14: Troubleshooting
Troubleshooting Symptoms Possible Cause Solution Motor and light do Power plug is not inserted completely Check the plug and insert it not operate properly The light bulbs are blown Replace the bulbs The wire and / or cable is disconnected Contact us The light’s transformer is damaged Contact Us... - Page 16 Customer Careline 1800-881-770 Distributed by, Kollektion Distribution Sdn. Bhd. 11B, Jalan 223, Section 51A, 46100 Petaling Jaya Selangor, Malaysia.
