INSTALLATION INSTRUCTION
Please read this instruction carefully before installation .
Fits for most 17-42 inches Plasma, LCD and LED TVs .
Weight capacity: 30kg (66 lbs) .
Thanks for your purchase! We strive to provide products and services of exceptional quality.
We sincerely invite you to write an unbiased review. For parts missed or installation problems,
please contact us at telephone （ 626 ） 604-9048 （ USA ） Mon-Fri 10am-6pm （ Pacific time ） or email us
by customerservice@mountingdream.com , so that we may solve the issue for you.
Max VESA: 200 X 200 mm/7.87X7.87"

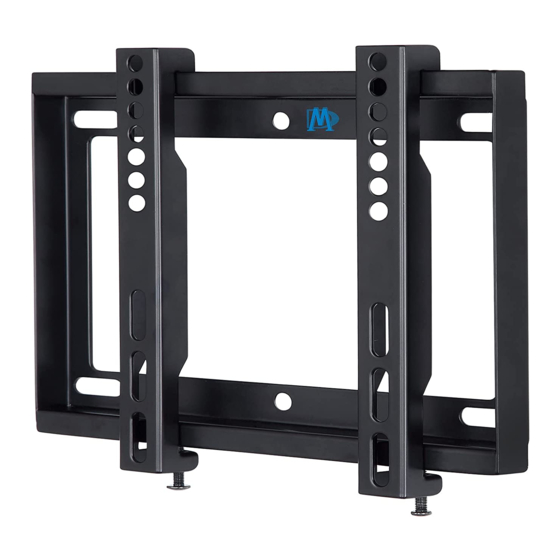

MODEL : MD2351
Installation Video
(A5)
Advertisement
Related Manuals for Mounting Dream MD2351
Summary of Contents for Mounting Dream MD2351
- Page 1 INSTALLATION INSTRUCTION Installation Video Max VESA: 200 X 200 mm/7.87X7.87" MODEL : MD2351 Please read this instruction carefully before installation . Fits for most 17-42 inches Plasma, LCD and LED TVs . Weight capacity: 30kg (66 lbs) . Thanks for your purchase! We strive to provide products and services of exceptional quality.
- Page 2 WARNING! Safety Warning: Thank you for choosing Mounting Dream TV mount. For safe application of model MD2351, and preventing yourself or others from danger or property loss, please read through this manual before use. If you do not understand these instructions or have any doubt over safety of installation, please contact qualified contractor or Mounting Dream customer service.
- Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA equal to/greater than 75x75mm and equal to/less than 200x200mm? MAX:200mm Yes --- Perfect! MAX:200mm No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 66 lbs (30kg)? NO --- Perfect! 66 lbs...
-
Page 4: Installation Tools
For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: Band tape Bubble level Stud finder Pencil Screwdriver Socket wrench 3/8" 5/32" Hammer Electrodrill 1/2"(13mm) Masonry Drill Bit Wood Drill Bit... -
Page 5: Wall Mounting Hardware
Wall mounting hardware: For concrete wall installations ONLY CAUTION: Do not use in drywall or wood Concrete Wall Anchor -Lag bolt 4pcs 4pcs TV mounting hardware: a--M4X12 bolt b--M5X12 bolt c--M6X12 bolt d--M8X25 bolt 4pcs 4pcs 4pcs 4pcs e--M4X30 bolt f--M5X30 bolt g--M6X35 bolt h--M8X50 bolt... - Page 6 Step 1 Wall plate installation: Option 1 Wall plate installation in wood stud To avoid potential body injury or property damage: 1. Wall mount must be installed into wood stud's center, not drywall alone. 2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.). 3.
- Page 7 Option 2 Wall plate installation on concrete wall To avoid potential personal injury or property damage: 1. Make sure the logo on the wall plate is upward as the picture shows. 2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be CAUTION capable of supporting five times the weight of the TV plus the mount.
- Page 8 Step 2 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.We recommend thread engagement by at least 5 turns.
- Page 9 Step 3 Attach brackets to the back of the TV: ① For the TV with flat back, mount the brackets with bolt/washer/spacer combination. Tips: Make sure the ends of TV brackets with round holes are facing upward. Round hole is for upper VESA hole, and long slot hole for lower VESA hole.
- Page 10 ② For TV with irregular back, mount the brackets with bolt/washer/spacer combination. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Tips: Make sure the ends of TV brackets with round holes are facing upward.
- Page 11 Hang the TV unit on the wall plate: Step 4 Hang the top hooks of the brackets over the top bar of the the assembled wall mount. Make sure the hooks securely hang in the bar ( figure 1) . Then attach the lower ends of the brackets to the lower bar of the wall mount.
-
Page 12: Product Dimensions
Step 5 To take down the TV from the mount. You need loosen the safety screws with a screwdriver. Then hold the TV upward to unlock the top hooks from the top bar. Product dimensions: 255mm 28mm MAX:200mm 194mm 200mm 220mm If you have any questions about the installation, please feel free to contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@mountingdream.com .
