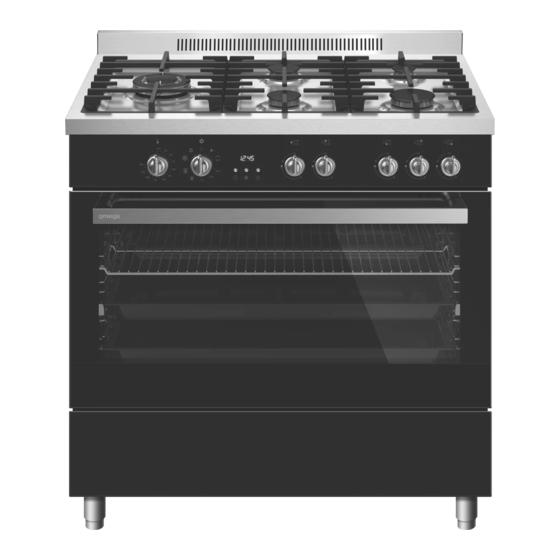

- Page 1 INSTRUCTION MANUAL FOR OMEGA FREE STANDING OVEN OF910FX...
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Please read these operating instructions carefully. Installation and repair should always be performed by an authorised service. The manufacturer and supplier shall not be held responsible for operations performed by unauthorized persons. The oven should be used according to the operating instructions. Keep children below the age of 8 and pets away whilst operating. - Page 5 IMPORTANT SAFETY WARNINGS Food can spill when foot of oven is dismantled or gets broken, be careful. It may cause personal injuries. During usage, the internal and external surfaces of the oven get hot. As you open the oven door, step back to avoid the hot vapour coming out from the interior.
- Page 6 IMPORTANT SAFETY WARNINGS Gas Safety This appliance is not connected to burning products evacuation apparatus. This appliance must be connected and installed according to the installation regulations in force. Conditions regarding ventilation must be considered. When a gas cooking appliance is used; humidity, heat and burning products are generated in the room. First of all, make sure the kitchen is well ventilated when operating the appliance and maintain natural ventilation openings or install mechanical ventilation equipment.
-
Page 7: Product Information
PRODUCT INFORMATION 1. Oven control knobs 9. Lamp 2. Hob control knobs 10. Grill 3. Wire grill 11. Deep tray 4. Deep tray 12. Large burner 5. Door 13. Middle burner 6. Handle 14. Auxiliary burner 7. Lower cabinet door 15. -
Page 8: Technical Data
TECHNICAL DATA Specifications 90x60 Outer width 900 mm Outer depth 610 mm Outer height 925 mm Lamp power 15-25 W Bottom heating element 2000 W Top heating element 1500 W Grill heating element 2500 W / 3250 W Turbo heating element 1250 W x 2 Supply voltage 220-240V AC/380-415V AC 50/60 Hz... -
Page 9: Accessories
ACCESSORIES Deep tray Used for pastries, deep fried foods and stew recipes. In case of frying directly on the grill for cakes, frozen foods and meat dishes, it can be used as an oil catchment tray. Wire grill Used for placing the foods to be baked on the desired rack. -
Page 10: Installation
INSTALLATION Electrical Connection Your oven requires 16 Amp fuse and must be installation by a qualified electrician. Your oven is adjusted in compliance with 220-240V AC/380-415V AC 50/60Hz. electric supply. If the mains are different from this specified value, contact your authorized service. Electrical connection of the oven should only be made by the sockets with earth system installed in compliance with the regulations. - Page 11 INSTALLATION For LPG Connection For LPG (cylinder) connection, affix a metal clamp on the hose coming from LPG cylinder. Affix an edge of the hose on hose inlet connector behind the appliance by pushing to end through heating the hose in boiled water. Afterward, bring the clamp towards end section of the hose and tighten it with screwdriver.
- Page 12 INSTALLATION Changing the Nozzle Use a screwdriver to remove and install the nozzle as in Figure 3. Remove the nozzle (figure 4) from the burner with nozzle driver and install a new nozzle (Figure 5). Figure 3 Figure 4 Figure 5 Ventilation of Room This product requires adequate ventilation.
- Page 13 INSTALLATION Check that the appliance has been properly connected to the power supply. If the electrical installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. The manufacturer and supplier shall not be held responsible for damages caused by operations performed by unauthorized persons. WARNING: It is customer's responsibility to prepare the location the product shall be placed on and also to have the electrical installation prepared.
- Page 14 INSTALLATION Attaching the Feet Screw the feet into the bottom four corners of the oven. You can balance your oven by turning the screwed feet according to the surface type you are using. Figure 7 Figure 8 Figure 9 Chain Lashing Illustration Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall using the chain and hooked screw supplied.
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS Controls 1. Mechanical timer 5. Rear left heater 2. Thermostat 6. Center heater (Wok burner or 3. Function selection button hotplate) 4. Front left heater 7. Rear right heater 8. Front right heater WARNING: The control panel above is only for illustration purposes. Consider the control panel on your device. Mechanical timer: Used for determining the period for cooking in the oven. - Page 16 OPERATING INSTRUCTIONS Using the Grill When grilling on the top rack, ensure that the food does not touch the grill. Place food in the center of the grill for best grilling results. To Start the Grill • Set the function dial to ‘Grill’. •...
- Page 17 OPERATING INSTRUCTIONS Using Gas Burners The flame cut-off safety device (FFD); operates instantly when the safety mechanism activates due to overflown liquid over the upper hobs. The valves controlling the gas cookers have a special security mechanism. To light the cooker, hold down the switch and turn it counterclockwise.
- Page 18 OPERATING INSTRUCTIONS Function Dial This is used for determining the cooking function to be used. The cooking functions are described below. All cooking functions may not be available in all models. Small grill and fan Lower and upper heating elements Turbo heating and fan Lower-upper heating element and Lamp...
-
Page 19: Maintenance And Cleaning
MAINTENANCE AND CLEANING WARNING: Disconnect the appliance from the electrical supply before performing any maintenance or cleaning. While the oven is operating or shortly after it starts operating, it is extremely hot. Avoid touching the heating elements. Do not use harsh cleaners such as hard wire brushes, abrasive cleaners or detergents. Use a soft, damp, soapy cloth to clean the interior of the oven. - Page 20 MAINTENANCE AND CLEANING Installation of Oven Door Figure 18 Figure 19 Figure 18.1 Figure 18.2 Figure 19.1 Figure 19.2 Completely open Bring the hinge lock Afterwards, close To remove the the oven door by to the widest angle the oven door as to oven door, pull it pulling it towards as shown in figure...
- Page 21 MAINTENANCE AND CLEANING Cleaning And Maintenance of the Oven’s Front Door Glass Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 20 and pulling the profile towards yourself as shown in figure 21. Then remove the inner-glass as shown in figure 22. If required, the middle glass can be removed in the same way.
-
Page 22: Changing The Lamp
CHANGING THE LAMP WARNING: Disconnect the appliance from the power supply and ensure that it is cold before changing the lamp. • Unscrew the glass protective cover. • Remove the lamp by turning it; install a new lamp with the same specifications. •... -
Page 23: Troubleshooting
TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Problem Possible Cause What to Do Power supply not available. Check for power supply. Check if main gas valve is open. Check if gas pipe is bent or kinked. -
Page 24: Warranty
WHAT IS COVERED: By Our Warranty During the warranty period, Omega or its authorised Service Centre will, at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.
