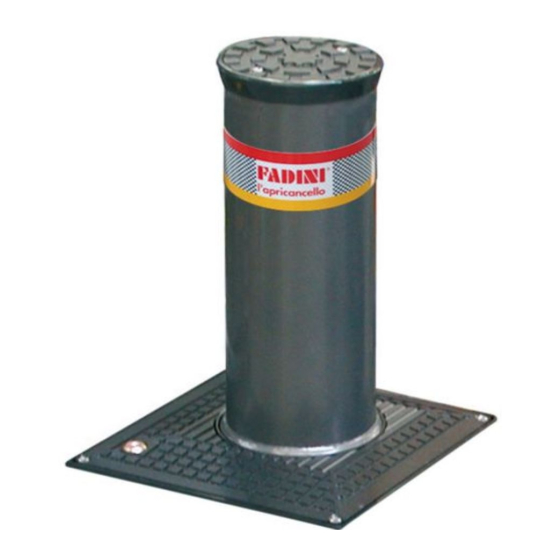

fadini VIGILO 2250 Instruction Manual

Retractable oil-hydraulic traffic control post
Hide thumbs Also See for VIGILO 2250:

Advertisement

Quick Links

Download this manual
VIGILO 2250
VIGILO 2280
Retractable oil-hydraulic
traffic control post
Diameter ø200mm
Stroke 500 mm
Stroke 800 mm
GB
Instruction manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIGILO 2250 and is the answer not in the manual?

Questions and answers

Related Manuals for fadini VIGILO 2250

Summary of Contents for fadini VIGILO 2250

  • Page 1 VIGILO 2250 VIGILO 2280 Retractable oil-hydraulic traffic control post Diameter ø200mm Stroke 500 mm Stroke 800 mm Instruction manual...
  • Page 2 Both the VIGILO 2250 and VIGILO 2280 oil-hydraulic operators have anti-corrosion treated steel posts with a diameter of Ø200mm and ranges of 500mm (Vigilo 2250) and 800mm (Vigilo 2280).
  • Page 3 PRELIMINARY OPENING OF ALL FUNCTIONAL COMPONENTS Vigilo series Post cover Rubber buffer Detail of retractable post with hoisting connection Cover plate Eyebolt hoisting hook Hydraulic main unit Limit switch microswitch Cylindrical container for oil-hydraulic piston Housing to be cemented into the ground Black Brown Cable for opening limit switch...
  • Page 4 PIC. 6 - Dig a trench in the ground in the point at which the Vigilo 2250 or Vigilo 2280 operator is to be installed, according to the measurements shown in Pic.5 and Pic.6, and connect a Ø50 mm pipe leading to the Elpro S40 electronic programmer (10 metres of cable are provided).
  • Page 5 30 cm cast of concrete Cover rest of housing FRONT SIDE with earth PIC. 7 VIGILO 2250 PLACING THE TRAFFIC CONTROL POST INSIDE THE HOUSING VIGILO 2280 Electric motor and limit switch Hoisting cables, 10 metres hook...
  • Page 6 PIC. 9 Two electric cables are provided with Vigilo 2250 and Vigilo 2280 traffic control posts: one to connect the 230V 50Hz electric motor to terminals 16, 17 and 18 and another one to connect to the terminal of the opening limit switch 11 and the common 13 (Pic.9).
  • Page 7 16 17 19 20 4555 Ref. Drwg. No. PIC. 10 VIGILO 2250 FIRST OPERATION MANOEUVRES VIGILO 2280 ATTENTION: it is important to establish the exact position of the traffic control post, open or closed, according to whether it allows or prohibits vehicular access (Pic. 11)

  • Page 8: Installation & Wiring

    2 - Wall-mounted Astro 43 radio receiver 9 - Two-light 230V traffic light 3 - Elpro S40 Electronic programmer 10 - Vigilo 2250 or Vigilo 2280 retractable traffic control post 4 - Differential circuit breaker switch 11 - Astro 43/2 Piccolo transmitter...
  • Page 9 13 14 15 switch with STOP 19 20 21 Polo 44 photoelectric cells Projector VIGILO 2250 Polo 44 VIGILO 2280 photoelectric cells Projector 1 - 2 - 3 - 4 - Retractable post F1 - F2 - Retractable post limit switch 1 and 2...

  • Page 10: Packaging Details

    VIGILO 2280 Individually packed Individually packed on wooden pallet on wooden pallet Total weight of Vigilo 2250: 107 Kg Total weight of Vigilo 2280: 136 Kg PIC. 18 PIC. 19 ® Important: discarded material should be disposed of using the dedicated containers by specialised firms.

  • Page 11: Manufacturer's Declaration Of Conformity

    VIGILO 2250 MANUFACTURER'S DECLARATION OF CONFORMITY VIGILO 2280 ®...

  • Page 12: Technical Data And Dimensions

    - Oil-hydraulic operator: maintenance check every 6 months. - Electronic equipment and safety systems: a monthly maintenance check. The growth of MECCANICA FADINI has always been based on the development of guaranteed products thanks to our “TOTAL QUALITY CONTROL” system which ensures constant quality standards, updated knowledge of the European Standards and compliance with their requirements, in view of an ever increasing process of improvement.

This manual is also suitable for:

Vigilo 2280
