CAUTION
This product was designed to be installed on wood stud walls and solid concrete walls.
Before installing make sure the supporting surface will support the combined load of the
equipment and hardware. Never exceed the Maximum Load Capacity. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or
personal injury.

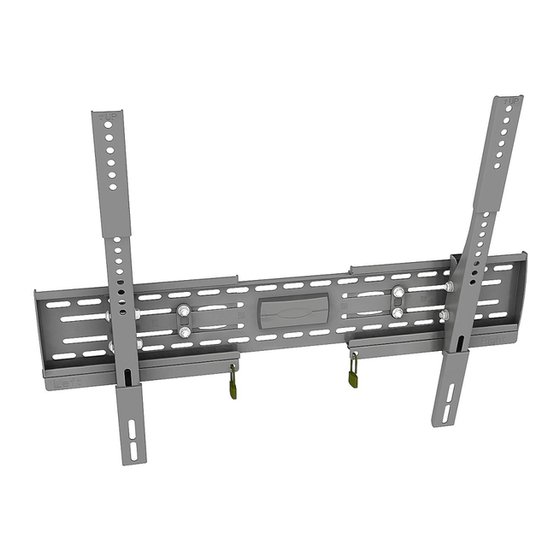

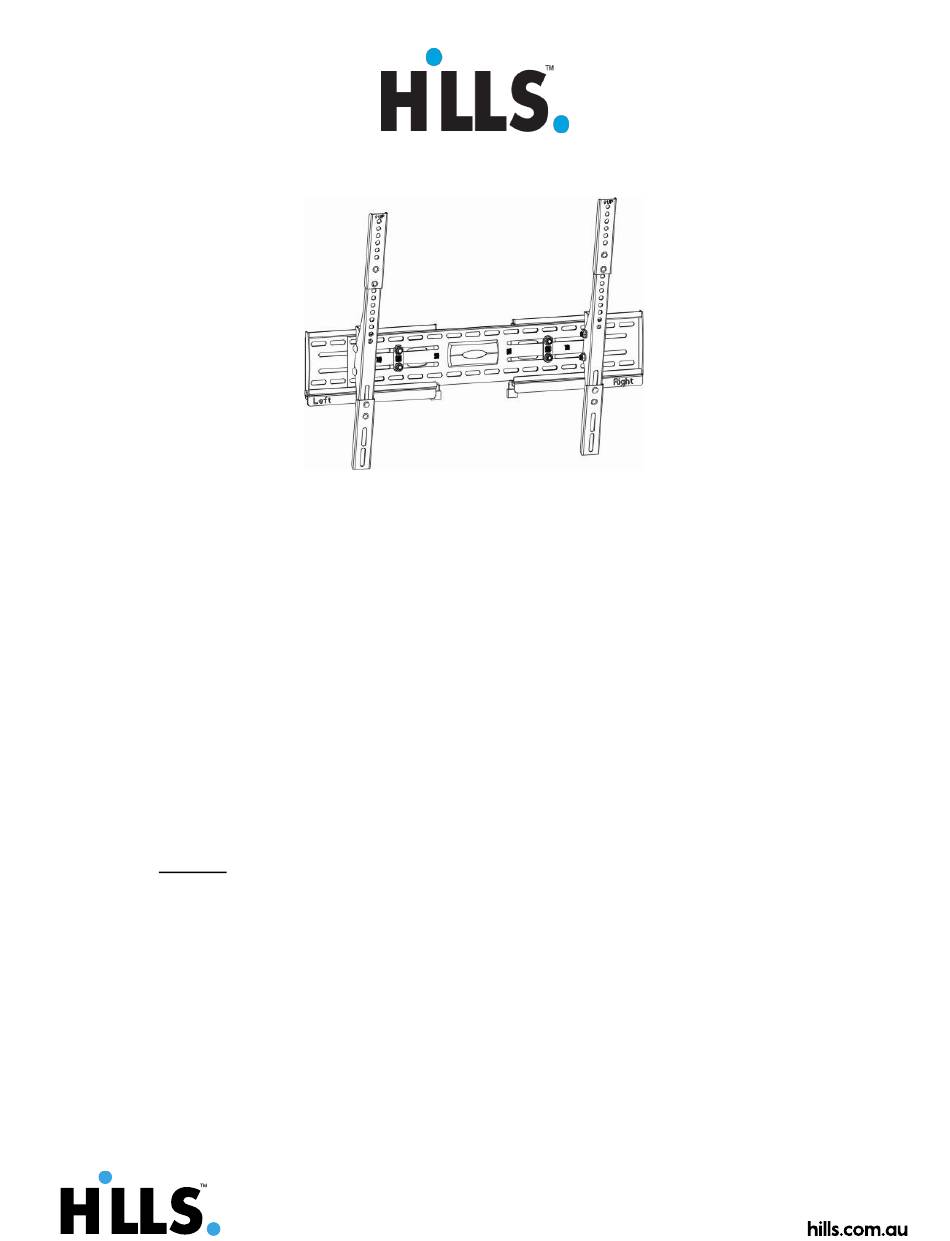

INSTALLATION GUIDE: BC78202
•
HAV Advanced Installer Mount
•
Expandable [horizontal back plate ]
•
Two Extendable arms [vertical]
•
Thickness: 62mm
•
TV size range 26"～65" [65-162.5cm]
•
Maximum weight capacity 50kg/110lbs
•
Tilt Adjustable angle:0°～15°
•
NON VESA & up to VESA800X500
•
Bubble level
•
Lockable safety bar
•
Two pad locks supplied
•
Colour silver
Thank you for choosing our product
1
Advertisement
Table of Contents
Related Manuals for Hills BC78202
Summary of Contents for Hills BC78202
- Page 1 INSTALLATION GUIDE: BC78202 • HAV Advanced Installer Mount • Expandable [horizontal back plate ] • Two Extendable arms [vertical] • Thickness: 62mm • TV size range 26"～65" [65-162.5cm] • Maximum weight capacity 50kg/110lbs • Tilt Adjustable angle:0°～15° • NON VESA & up to VESA800X500 •...
- Page 2 Hardware List:...
- Page 3 Part 1a- Wood Stud Mounting Use wall plate as a template, make sure it is level, and mark mounting holes along the center lines of the wood studs. Drill 3/16”(5mm)dia.holes 2” (50mm) deep. Level wall plate and attach to wall with long bolts(J) and washers(L) by box wrench(11).
- Page 4 Part 1b- Concrete Wall Mounting Level wall plate and use it as a template to mark holes. Drill 3/8”(10mm) dia. holes 2”(50mm) deep. Insert anchors(K) into holes and secure wall plate with long bolts(J) and four washers(L) by box wrench(11). Tighten screws firmly.
- Page 5 Part 2b-Attaching brackets to screen with recessed back Center brackets vertically on back of screen. Select the medium(F or G) or large(H) screws. Attach brackets to screen using four selected screws, four square washers(I) and four spacers(M) at the top and bottom of each bracket. Tighten screws firmly.
- Page 6 If your TV hole’s vertical distance< 300mm, you can only use brackets(2,3). If your TV hole’s vertical distance> 300mm, you need to use the extended bars(4,5) on both brackets(2,3). Part 3-Mounting the flat panel screen and installing locking bar Hook the top of brackets onto the top flange of wall plate(1). Then swing the screen down.
- Page 7 edge of wall plate(1). Secure with padlocks(12). NOTE: Always use an assistant or mechanical lifting equipment to safely lift and position heavy equipment. Warning This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children! NOTE: Always use an assistant or mechanical lifting equipment to safely lift and position heavy equipment.
