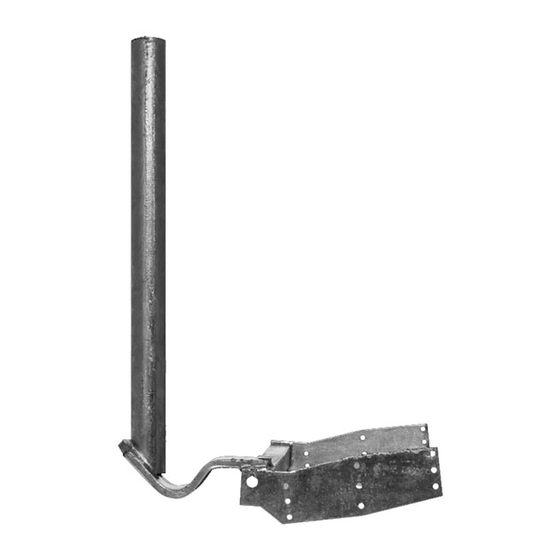

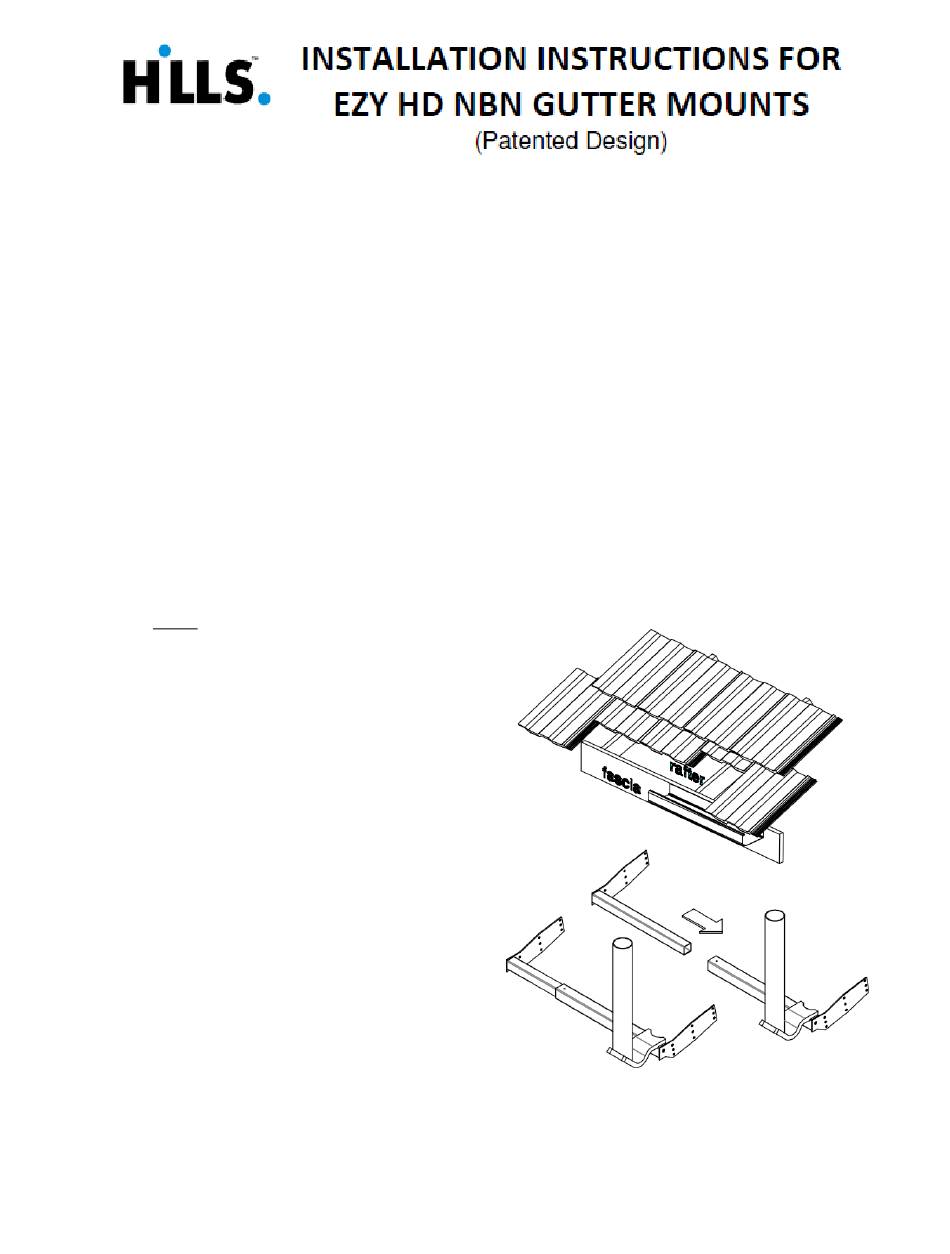

Hills EZY HD 600mm GUTTER MOUNT Installation Instructions

The Ezy HD Gutter Mount has been designed for 80cm satellite dishes for installations to
AS 4055-2012 Wind Classification N5/C3 (W60).

Installation Requirements

Select installation site in consultation with the customer taking the following points into
consideration:
• Clear signal path to satellite.
• Structural soundness of the rafters and fascia at the installation point. Rigidity of the
mount installation is imperative.
• Clear of power lines or other potential hazards.
• Clear cable run to set top box.
• The mount should not be installed where the joint of a fascia is between 2 rafters.
In this situation, an adjacent pair of rafters should be used.
• The mount is not to be installed where debris from surrounding trees can accumulate in
the gutter.
• The minimum gap between the bottom of the mast base plate and the bottom of the
gutter must exceed 30 mm.

Installation Procedure

1. Slip three (3) tiles to expose two (2)
rafters as per figure1.
2. Assemble the two sections of the mount
as shown in figure 2.
3. Place the assembly into the roof so that both plates are firm against the rafters. Check
how the tile sits on the tongue of the mount. If the tongue causes the tile to sit
incorrectly, then it may be necessary to notch the fascia to allow the mount to sit lower
so that the tongue clears the tile.
FB607229A EZY HD 600mm GUTTER MOUNT
FB607231A EZY HD 900mm GUTTER MOUNT
Figure 1
Figure 2
1
