ICO Kontour K6053E Installation Manual

1
ROUGH-IN REQUIREMENTS (see figure 2)
1. Check all items have been received.
1. Towel Warmer
2. Bracket Pack
2. Your towel warmer requires 110V GFCI protected power. This 110V receptacle should be located
no further than 18" from the electric plug-in exit location on the towel warmer (see figure 2), and not
above the electric plug-in exit location.
3. Wall studs or plywood backing is recommended in the wall at all bracket
locations. See figure 2 for bracket locations.
INSTALLATION INSTRUCTIONS (see figure 1)
2
1. Fix wall supports "A" to the wall using the screws provided and in
locations as shown on figure 2.
2. Hang and adjust the towel warmer using set screws "B" to lock stud "C" in
the wall bracket "A". Ensure the towel warmer is firmly and safely fixed.
3
PLUG-IN CONNECTION
TURN OFF POWER SUPPLY BEFORE PROCEEDING
Do not connect the towel warmer to the power supply until all instructions have been read and
installation carried out in accord with them. Your towel warmer is 180W (110V) and conforms
to CSA standards (File ref: 2422531). Please ensure the CSA label is visible.
1. Turn off power supply.
2. Plug connector in.
3. Turn on power supply.
Warning: In case of damage or failure of the towel warmer the unit should be returned to the manufacturer or their distributor. The
warranty of 2 years on the towel warmer is NOT VALID in case of improper use or installation. Product is designed for use within Canada
and the United States only.

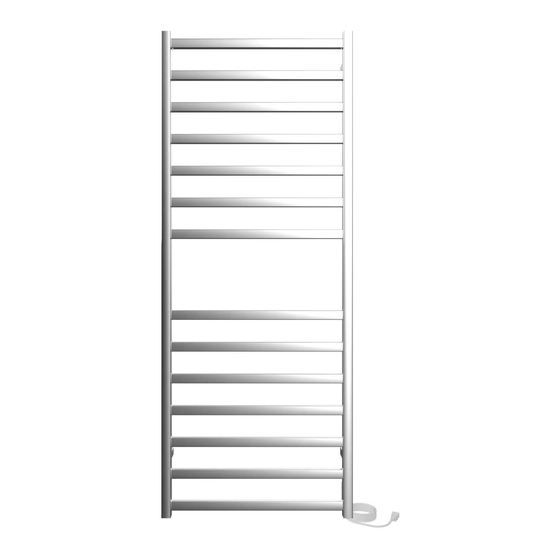

Kontour Square Towel Warmer Installation Guide
Code: K6053E / K6054E / K6055E
24" x 60" Plug-In
FIGURE 1
877 757 8930
cs@icobath.com | www.icobath.com
