Page 2
Towel Warmer Installation Procedure Rough-in Requirements (see figure 3) 1. The incoming power feed goes to a deep single gang electrical box (for timer). This electrical box can be located anywhere in the room, although we recommend it be alongside your light switches. 2.
Page 3

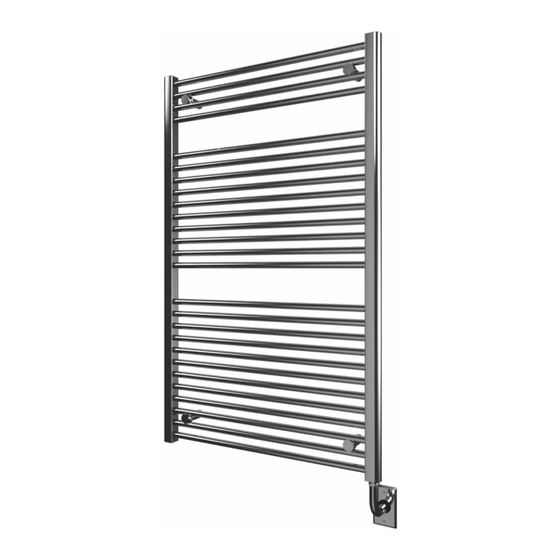

Specifications & Drawings Model # Description Finish Weight (lb) Element Size Output WxH (mm) WxH (Inches) Metal Type W1061 Savoy Electric Hardwire White 52.2 450W 3816Btu 750 x 1210 29.5” x 47.75” Mild Steel W1063 Savoy Electric Hardwire Chrome 52.2 300W 3816Btu 750 x 1210...
Page 4
Timer Installation Procedure Installation Programming Install the timer as shown in figure 3. You can set up to 7 programs. To set a program, you need to Apply power at the circuit breaker. enter its start time (ON) and its end time (OFF). Pry the timer door open using a small screwdriver.
