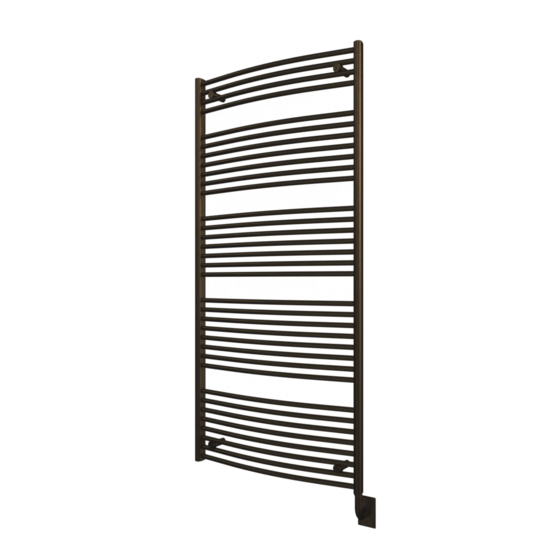

- Page 1 Tuzio Blenheim ® Towel Warmer Installation Guide Code: W2093 / W2097 29.5” x 64.5” Hardwired Technical Helpline: Toll-Free 1-877-757-8990 www.icocanada.com...
- Page 2 Towel Warmer Installation Procedure Rough-in Requirements (see figure 3) 1. The incoming power feed goes to a deep single gang electrical box (for timer). This electrical box can be located anywhere in the room, although we recommend it be alongside your light switches. 2.
- Page 3 Specifications & Drawings Model # Description Finish Weight (lb) Element Size Output WxH (mm) WxH (Inches) Metal Type 5252Btu W2093 Blenheim Electric Hardwire Chrome 67.0 450W 750 x 1640 29.5” x 64.5” Mild Steel W2097 Blenheim Electric Hardwire 67.0 450W...
- Page 4 Timer Installation Procedure Installation Programming Install the timer as shown in figure 3. You can set up to 7 programs. To set a program, you need to Apply power at the circuit breaker. enter its start time (ON) and its end time (OFF). Pry the timer door open using a small screwdriver.
