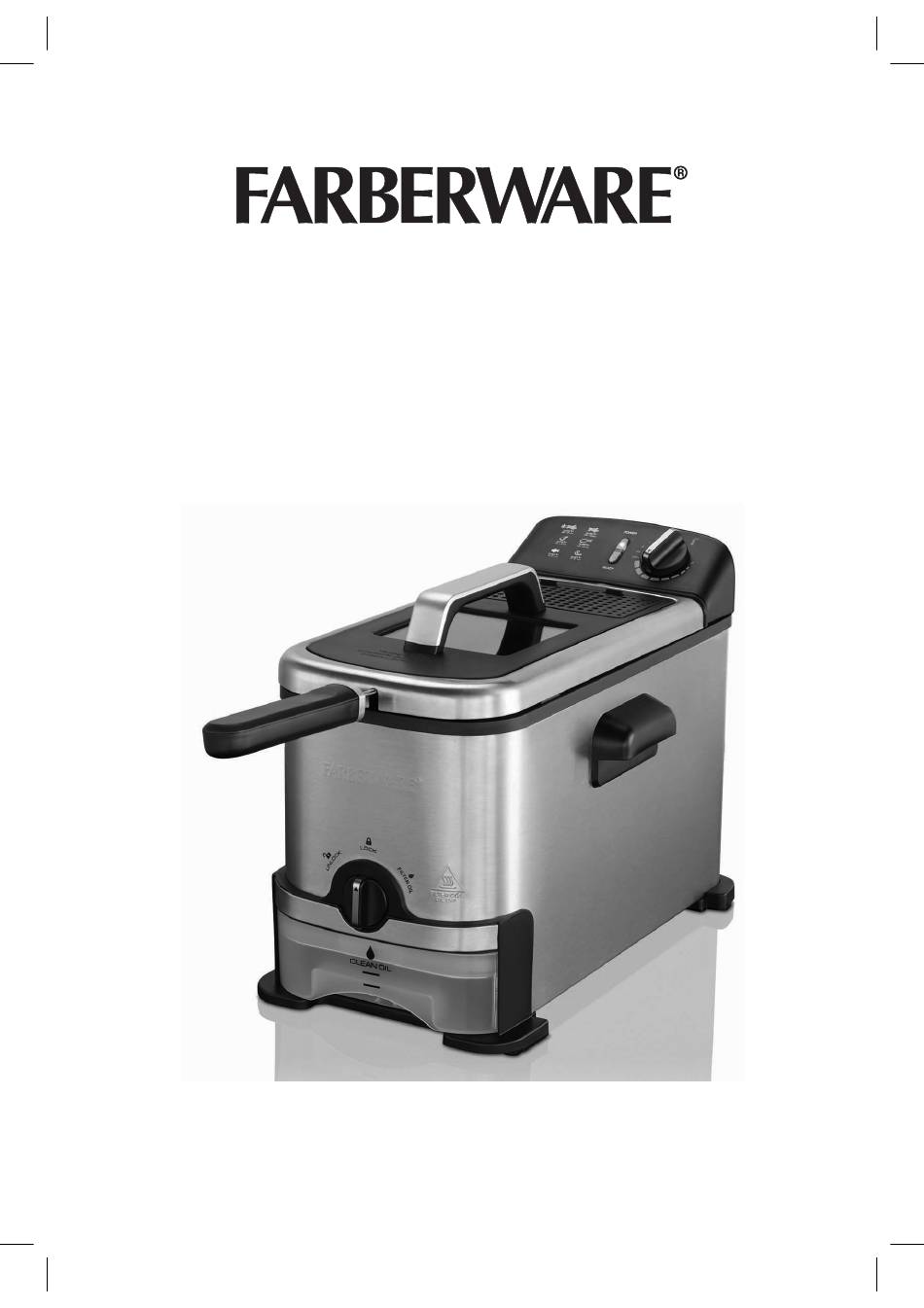

Deep Fryer with Oil Filtration Model Number: FBW FT 43721 B UPC: 848052006539 Customer Assistance 1-855-451-2897 (US) Please consider the option to recycle the packaging material.
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: • Read all instructions before use. • Do not touch hot surfaces. Use handles or knobs. • WARNING - to protect against electric shock, fire and personal injury: - do not immerse cord, plug or motor unit in water or other liquids;...
IMPORTANT SAFEGUARDS • In the event of fire, never try to extinguish the flames with water. Unplug the appliance from the wall outlet. Place the lid on the appliance, if it can be done safely. Smother the flames with a damp cloth, or use a fire extinguisher.
Page 4
ADDITIONAL SAFEGUARDS • A short detachable power-supply cord is provided to reduce the risk resulting from it being grabbed by children, becoming entangled in, or tripping over a longer cord. Polarized plug - This appliance has a polarized plug (one blade is wider than the other).
Page 5
PARTS Filter Cover Charcoal Odor Filter White Grease Filter Lid Handle View Window Reset Button Silicon Rubber Safety Switch Sealing Plate Frying Basket Basket Handle Control Panel Assembly Basket Hook Oil Reservoir Immersion Oil Level Marking Heater MIN MAX Oil Filter Cover Oil Valve Side Handles...
BEFORE FIRST USE • Remove all packaging materials and/or other transportation means. • Check package content to verify it is complete and undamaged. Do not operate the appliance if the content is incomplete or appears damaged. Return it immediately to Walmart. Danger of suffocation! - Packaging materials are not toys.
Page 7
ASSEMBLY Oil Filter Cover - the Oil Reservoir is secured in the correct position with the Oil Filter Cover and Oil Valve on the same side than the Oil Filtration Control Knob (ill. ). Ensure the oil Filter Cover is in place inside the Oil Reservoir.
USING THE APPLIANCE NOTE: - YOUR APPLIANCE IS EQUIPPED WITH A SAFETY SWITCH LOCATED ON THE Silicon Rubber Sealing Plate CONTROL PANEL ASSEMBLY. IF THE Safety Switch CONTROL PANEL ASSEMBLY IS NOT PLACED PROPERLY IN ITS POSITION, THE APPLIANCE WILL NOT OPERATE.
Page 9
USING THE APPLIANCE Danger of burns! - Never refill the Oil Reservoir during use or while hot. Always allow the appliance to cool down completely. Do not mix new oil with old oil. WARNING: - DO NOT OVER OR UNDER FILL (ill. ).
Page 10
USING THE APPLIANCE Danger of burns! - Do not touch the Lid or appliance Housing during or after use (ill. Only use the Handles provided. - Always pay special attention when adding or removing accessories and food from the appliance. Never touch the Lid or appliance Housing when the appliance is plugged in and switched on or immediately...
Page 11
USING THE APPLIANCE WARNING: - Do not fry food without the Frying Basket (ill. - Do not fill the Frying Basket over half way. Too much food can cause excess foaming and could cause the oil to overflow during operation. - Food added to the appliance must be dry.
Page 12
USING THE APPLIANCE • Carefully lower the Frying Basket into the Oil Reservoir (ill. • Cover the Oil Reservoir with the Lid (ill. ). Ensure the recessed parts of the Lid fit properly over the Basket Handle and Silicon Sealing Plate. NOTE: - When frying fresh cut potatoes and high moisture content food, lower the basket slowly into the oil.
Page 13
USING THE APPLIANCE WARNING: - Never place the hot Frying Basket directly on a tabletop or countertop to avoid damage to surfaces. It is recommended to use a heat resistant trivet or cutting board. • Place the Frying Basket on a clean, flat and heat resistant surface.
Page 14
RECOMMENDED FRYING TIMES AND TEMPERATURES NOTE: - The frying times in the chart below are approximate and should be adjusted to suit your own tastes, different food quantities and food manufacturer’s instructions. Food Temperature setting (°F/°C) Time (minutes) Frozen French fries 375 / 190 8 - 12 French fries...
Page 15
COOKING WITH OIL - Some meats, such as chicken wings, will release large amounts of liquids when frying, thus watering down the oil. Do not reuse this oil. Do not use the cooking oil anymore if you notice the following: Before use: oil smells rancid or its color has visibly darkened.
Page 16
OIL FILTRATION - When removing the Oil Container from the appliance, handle with care. Keep the Oil Container flat and hold it with both hands. Emptying the Oil Container Filtered oil can be stored in a suitable container ( Storing oil) or re-used for frying a new batch of food ( Cooking with oil).
HINTS AND TIPS • Smaller quantities of food normally require a slightly shorter cooking time than larger quantities of food. • To reduce cooking time, defrost food prior to cooking. It is recommended that some foods should not be thawed/defrosted prior to cooking, such as frozen fish, and frozen French fries.
Page 18
CLEANING AND MAINTENANCE Danger of burns! - Ensure the Frying Basket cooled down completely before touching its surface and attempting to remove the Basket Handle. - Ensure the oil cooled down completely before emptying the Oil Reservoir into the Oil Container. •...
TROUBLESHOOTING Problem Cause Solution The appliance is not Magnetic Plug not properly Connect the Magnetic working fitted Plug to the electrical outlet before connecting the plug to the wall outlet Control Panel Assembly not Install the Control Panel installed correctly Assembly correctly Appliance not plugged in Insert the plug into the wall...
Page 20
TROUBLESHOOTING Problem Cause Solution The POWER indicator Preheat time too short Allow the appliance to lights up but the preheat for a longer time appliance does not Malfunctioning appliance Unplug the appliance from heat up the wall outlet and contact qualified personnel to check and repair the appliance The appliance heats up...
TROUBLESHOOTING Problem Cause Solution Oil is leaking from the Oil filtration control Unplug the appliance from knob in the FILTER appliance the wall outlet and clean OIL position without the appliance. Insert the Oil Oil Container in place Container and turn the Oil Filtration Control Knob on the LOCK position before using the appliance again...
