Summary of Contents for BobsCNC KL733

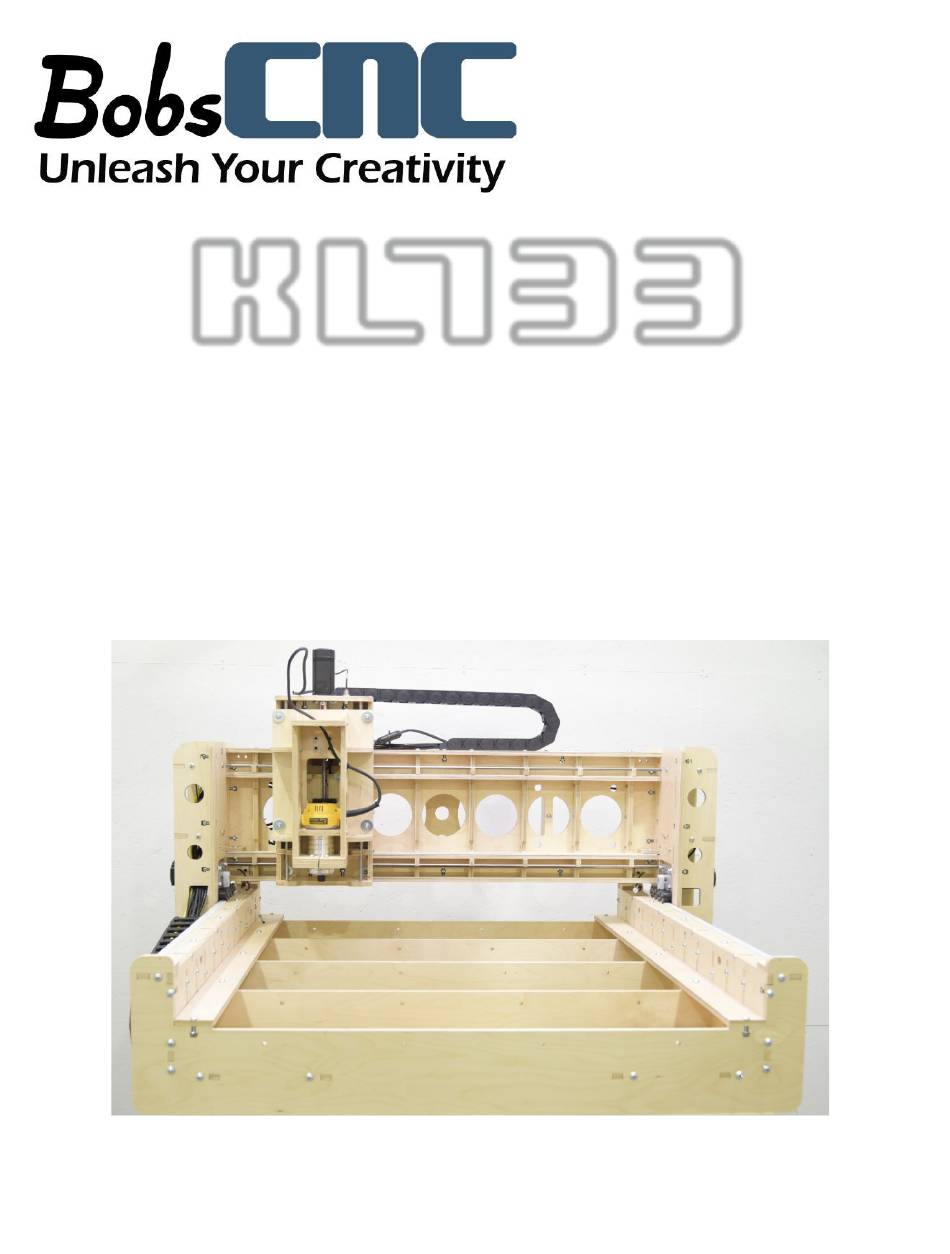

- Page 1 K L 7 3 3 Getting Started MANUAL 1 of 8 Version 2.4...
- Page 2 We cannot guarantee a customer’s ability to assemble, setup or use our product(s). Since the quality of any products or projects created using the KL733 is dependent upon its proper setup and a basic understanding its operating parameters, BobsCNC does not guarantee the quality of the...
-
Page 3: Specifications
K L 7 3 3 Specifications KL733 Material 12 mm 9 ply Baltic Birch Machine Size 56.5” x 36.25” X 37" Cutting Area 36” x 36” DeWalt 611 Router Spindle (Makita RT0701C) 16k to 27k Spindle RPMs (10k to 30k) Processor Firmware GRBL v. - Page 4 Look Safety Information and Hints. Indicates a serious risk of bodily harm, possible injury and death. This warning box is to be taken seriously. Any work must be carried out with extreme caution. Indicates a possible risk of injury that CAUTION can result from failure to follow this Instruction.
- Page 5 Avoid the temptation to skip or modify any of the outlined steps or ignore any included Warnings or Hints. Failure to follow the directions included will void the BobsCNC Warranty and may result in the machine malfunction.
-
Page 6: Safety First
KL 7 series Shop Safety Precautions & Warnings Safety First Read and follow all operating and safety instructions in the Assembly Instruction Manual before operating the machine. Never leave the machine running unattended. • Use only extension cords rated for 20 amps plugged into a dedicated •... -
Page 7: Tools Required For Assembly
Tools Required for Assembly: • #3, #2, and #1 Phillip Screw Drivers • Small Standard Screw Driver • Complete set of Metric and SAE sockets and wrenches with extensions. • Extended Reach Metric and SAE Allen Wrenches. • Side Cutter, Wire Stripper •... - Page 8 Solvent (oil) based polyurethane should only be used in work areas with adequate ventilation. BobsCNC has tested water-based acrylic poly with acceptable results (water based poly has significantly lower VOCs and a faster drying/curing time).
- Page 9 KL 733. Learning to create the projects you’ve dreamed of will require patience and practice. Start with easy projects. As you gain experience you will be amazed at the things you will able to make with you KL 733. Welcome to the BobsCNC family.
