- Page 1 Operating and Service Manual 600A400 Model 10046536 Part Number Serial Number 160 School House Road, Souderton, PA 18964 • 215-723-8181 • Fax 866-859-0582 • www.arworld.us...
- Page 3 REGULATION (EC) 1907/2006 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 18 December 2006 concerning the Registration, Evaluation, Authorization and Restriction of Substances of Very High Concern Chemicals (SVHC) Supporting documentation is held by AR RF/Microwave Instrumentation’s Quality department in Pennsylvania, United States. Place of issue:...
- Page 5 Instructions for European EMC Conformity WARNING It is the responsibility of the user of this equipment to provide electromagnetic shielding, filtering and isolation which is necessary for EMC compliance to Directive 2014/30/EU. The equipment must therefore be operated in a shielded area which provides a sufficient level of attenuation to meet the radiated emissions and immunity specifications.
- Page 7 The caution symbol denotes a potential hazard. Attention must be given to the statement to prevent Your AR equipment may have more than one power supply cable. Use damage, destruction, or harm. only approved power cable(s). If you have not been provided with a Dangerous voltages are present.
- Page 8 EQUIPMENT CONTAINING LASERS risk of serious injury due to unsafe AR Field Probes (FL/PL Series) and Field Analyzers (FA product handling should be a fundamental Series) are Class 1 laser products containing embedded consideration every user.
- Page 9 Zur Vermeidung von Personen- oder Sachschäden gilt BEVOR SIE DAS GERÄT ANSCHLIESSEN es, die Hinweise zu beachten. Ihre AR-Ausrüstung hat möglicherweise mehr als ein Stromversorgungskabel. Gefährliche elektrische Spannungen sind vorhanden. Verwenden Sie nur zugelassene Stromkabel. Falls Sie kein Stromkabel oder Höchste Vorsicht ist geboten.
- Page 10 Die meisten Geräte müssen während des Versands, der Montage und des Gebrauchs LASER-INFORMATION transportiert werden. Jeder Nutzer sollte sich AR - Feldsonden (FL/PL-Serie) und Feldanalysatoren (FA-Serie) über das Risiko von schweren Verletzungen sind Laserprodukte der Klasse 1 mit eingebetteten Klasse-4- durch unsachgemäße...
- Page 11 électrode de mise à la Votre équipement AR peut disposer de plus d’un câble d’alimentation terre de protection. électrique. Utilisez uniquement un ou des câbles d’alimentation approuves.
- Page 12 éliminer le risque injustifié de blessures causées par le levage est fournie par les méthodes de travail de NIOSH (publication Les sondes de champ AR (série FL/PL) et les analyseurs de n° 94-110) disponibles sur : champ (série FA) sont des produits laser de classe 1 contenant des lasers intégrés de classe 4.
- Page 13 Er zijn gevaarlijke elektrische spanningen aanwezig. Wees uiterst voorzichtig. VOOR HET OPZETTEN VAN DE STROOM Uw AR-apparatuur kan meer dan een netvoedingskabel bezitten. Gebruik alleen goedgekeurde netvoedingskabel(s). Koopt een Wijst op een terminal aan die bedoeld is voor aansluiting netvoedingskabel die is goedgekeurd voor gebruik in uw land als u...
- Page 14 APPARAAT DAT LASERS BEVAT distributie, de assemblage en het gebruik moeten worden behandeld, moet het risico AR-terreinsondes (FL/PL-serie) en terreinanalysatoren (FA- op ernstig letsel als gevolg van een serie) zijn laserproducten van klasse 1 met ingesloten onveilige behandeling van het product een klasse 4-lasers.
-
Page 15: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ....................GENERAL INFORMATION ................1 General Description ....................1 Specifications ......................1 Power Supplies ....................... 1 Installation ......................2 1.4.1 Location ........................2 1.4.2 Power ........................2 RF Connections ...................... 2 1.5.1 Amplifier Input Connector ..................2 1.5.2 Amplifier Output Connector .................. - Page 16 4.3.7 Low or No Power Output (RF Test) (Schematic Diagram Nos. 10045748 and 10039874) ..........................33 FIGURES Model 600A400 Front Panel .................. 7 Model 600A400 Rear Panel ................... 8 Menu Map ......................9 Typical Response at -20dBm Input ..............33 Typical Response at 0dBm Input .................
- Page 17 Model 600A400 Fiber-Optic Serial Port Settings ................12 Relationship between 600A400 Controls and Remote Communication ....14 States ........................17 Faults ........................19...
-
Page 19: General Information
(dB) or more. Solid state technology is used exclusively to offer significant advantages in reliability and cost. A Model 600A400, used with a frequency-swept signal source, will provide 600 watts of swept power output from .01–400 megahertz (MHz). Typical applications include antenna and component testing, wattmeter calibration, and electromagnetic interference (EMI) susceptibility testing, as well as usage as a driver for frequency multipliers and high-power amplifiers. -
Page 20: Installation
Select an operating location that will permit air to circulate freely around the amplifier’s cabinet. The Model 600A400 utilizes air cooling and should be located where the normal flow of air into or exiting from the unit will not be restricted, diverted, or re-circulated through the unit itself; in particular, the flow of warm air exiting the rear of the amplifier should not be impeded. - Page 21 Model 600A400 1.5.3 RF Sample Ports (Optional) The Forward and Reverse power sample port connectors are Type N female and can be located on the front or rear of the amplifier depending on ordered configuration. Cables and equipment connected to these ports should exhibit resistive 50Ω...
- Page 22 Model 600A400 Rev A...
-
Page 23: Specifications
Portable moved for rack mounting. cations are available remotely through the Full VSWR– The Model 600A400, when used with a sweep included Remotes Package. The Remotes Pack- tolerant generator, will provide a minimum of 600 age includes GPIB/IEEE-488 format, RS-232 ... -
Page 24: Power
HARMONIC DISTORTION: Minus 20 dBc maximum at RoHS DIRECTIVE 2011/65/EU 500 watts EXPORT CLASSIFICATION: EAR99 SPURIOUS: Minus 73 dBc typical PRIMARY POWER: 200-240 VAC, 50/60Hz, 2950 watts Ordering Options Contact your AR RF/Microwave Instrumentation Sales Associate for specific model configuration pricing. -
Page 25: Rf Sample Ports (Optional)
Graphs Page 3 600A400 600 Watts CW 10kHz–400MHz... - Page 26 Graphs Page 4 600A400 600 Watts CW 10kHz–400MHz...
- Page 27 Envelope Drawing Page 5 600A400 600 Watts CW 10kHz–400MHz To order AR Products, call 215.723.8181. For an applications engineer call:800.933.8181. Direct to Service call: 215.723.0275 or email: service@arworld.us For Faxing Orders:866.859.0582 (Orders Only Please) info@arworld.us Approved for public release by AR RF/Microwave Instrumentation...
-
Page 29: Operating Instructions

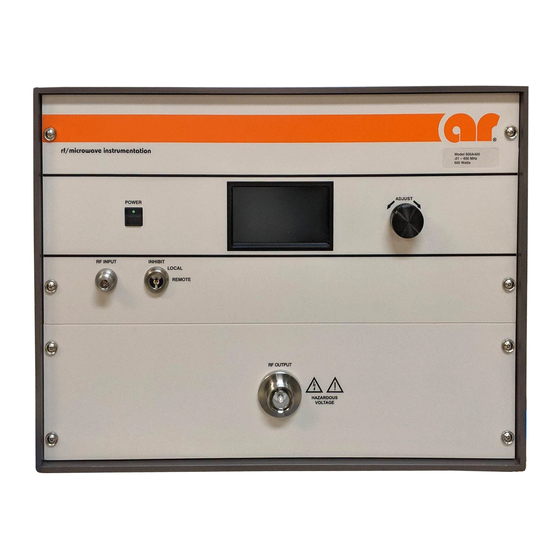

Normal operation can be resumed after the chassis temperature drops below 70° C. AMPLIFIER FRONT AND REAR PANELS Figure 2-1 shows the front panel of the Model 600A400 Broadband Microwave Amplifier. Figure 2-2 shows the rear panel of the Model 600A400 Broadband Microwave Amplifier. -
Page 30: Local Control Interface
2.2.1.2 Power Button The momentary POWER button turns the main power to the 600A400 on and off. The status of the green light-emitting diode (LED) in the switch indicates whether the 600A400 power is on or off. The main power supply fans are active when power is on. -
Page 31: Menu Map
Model 600A400 2.2.1.5 Menu Map Figure 2-3 shows the menu map for the 600A400. The screens depicted are only example screens. The actual values and settings will be different on the actual amplifier depending on user settings and operating conditions. -
Page 32: Remote Control Interface
For GPIB operation, the device address is set using the front panel touch screen. Ensure that each device connected to the GPIB is set to a unique address. To send commands be sure that the 600A400’s address is set properly and that the controller has correctly identified it as a “listening” device. -
Page 33: Fiber-Optic Serial Communication
The Fiber-Optic port provides the user with the ability to optically isolate the controlling PC from the 600A400. This can be useful in an environment where RF/Microwave energy could be coupled onto a connection to one of the “wired” communications ports and fed back to the controlling PC. -
Page 34: Usb Communication
This port can be used in conjunction with either an AR model IF7000 RS-232 to Fiber-Optic Interface (1200 to 9600 baud only) or an AR model IF7001 USB to Fiber-Optic Interface (19200 baud only). Note that these devices use SMA connectors so a fiber-optic cable is needed with ST connectors on one end and SMA connectors on the other. -
Page 35: Remote Commands
An application program on the computer/controller should issue only one character string (command or query) at a time. After each functional command is issued, the 600A400’s status should be checked to ensure that the command has been properly executed. The application program should allow sufficient time for the function to be completed before checking the status. -
Page 36: Power On/Off
√ √ √ X = No, √ = Yes 2.4.6.1 Power On/Off This command controls the power on/off state of the 600A400. Syntax: POWER:x Parameters: State(x): OFF = power off ON = power on Response Format: None (No query for this command) -
Page 37: Reset Faults
Model 600A400 2.4.6.3 Reset Faults This will clear all faults, if possible. Syntax: RESET Parameters: None Response Format: None (No query for this command) Example: To clear any faults, send the following command: RESET<LF> 2.4.6.4 Mode Select This command sets the ALC mode of the amplifier. -
Page 38: Identity
Response Format: f,m,n,<LF> Where: f = manufacturer m = model designation n = firmware revision Example: To get the identity of the 600A400, send the following command: *IDN?<LF> AR-RF/MICROWAVE-INST,XXXXXXXX,1.0<LF> Response: 2.4.6.7 IO Board Firmware Revision Query to get the firmware revision of the I/O Board. -
Page 39: State
Model 600A400 2.4.6.8 State Query to find the state of the amplifier. Syntax: STATE? Parameters: None Response Format: STATE=<space>xyza<LF> Where: x, y, z, and a are each an ASCII character representing a hexadecimal character. They can be 0 to 9 or A to F. -
Page 40: Forward Power
Model 600A400 2.4.6.9 Forward Power Query to get the forward power. Syntax: FPOW? Parameters: None Response Format: FPOW=x<LF> Where: x = 0 to 99999 Values are corrected and linearized. They can be up to five digits in length. Leading zeros are read as spaces. Units are Watts. -
Page 41: Rf Gain
RFG? Parameters: None Response Format: RFG=<space>x<LF> Where: x = 0000 to 0100 Example: To find out the RF gain of the 600A400, send the following query: RFG?<LF> RFG=<space>0075<LF> Response: (75% Gain) 2.4.6.12 Faults Query to find the faults that have occurred with the 600A400. -
Page 42: Operating Hours (Rf On)
Model 600A400 2.4.6.13 Operating Hours (RF On) Query to get the RF On operating hours. Syntax: Parameters: None Response Format: OH=x<LF> Where: x = 0 to 100000 Units are Hours. Values can be up to six digits in length. Leading zeros are read as spaces. -
Page 43: Alc Board Firmware Revision
Model 600A400 2.4.6.15 ALC Board Firmware Revision Query to get the firmware revision of the ALC board assembly. Syntax: *ALC? Parameters: None Query only (always requires a ? character) Response Format: ALC_SW_REVx<LF> Where: x = firmware revision Example: To get the firmware rev. of the ALC board assembly, send the following command: *ALC?<LF>... -
Page 44: System Serial Number
Model 600A400 2.4.6.17 System Serial Number Query to get the serial number of the system. Syntax: Parameters: None Query only (always requires a ? character) Response Format: x<LF> Where: x = serial number (6 to 8 characters) Example: To get the serial number, send the following command: SN?<LF>... -
Page 45: Interlocks
To set the default mode to manual, send the following command: DEFAULT:MODE:MANUAL<LF> 2.4.7 Interlocks The 600A400 has one interlock circuit that is wired to the rear panel Safety Interlock connector. This interlock requires a normally closed external circuit to allow the unit to function. 2.4.7.1 Inhibit Interlock This interlock circuit inhibits RF amplification by disabling the low level (A1) and Power (A2 and A6 through A13) amplifier stages. - Page 46 Model 600A400 Rev A...
-
Page 47: Theory Of Operation
3. THEORY OF OPERATION INTRODUCTION The Model 600A400 RF amplifier consists of a .01-400 MHz RF amplifier assembly. The RF amplifier assembly consists of a Pre-Amplifier (Pre-Amp), one driver amplifier module, and eight final amplifier modules. The power supply section consists of an AC input line filter circuit breaker, +5V, -15V, +24V, two +40V power supplies, an Operate/Control circuit, and an interface board. -
Page 48: A2 100W 400Mhz Driver Module Assembly (Schematic 10039874)
Model 600A400 3.2.2 A2 100W 400MHz Driver Module Assembly (Schematic 10039874) The 100W 400MHz Module Assembly consists of RF matching circuits, an RF transistor (Q1), a bias control circuit, and a fault detection circuit. The RF input is fed to a 4:1 balun transformer composed of T1 and T2. The output signal of the 4:1 transformer is connected to the gates of Q1. -
Page 49: A24, A25, A26 A27 Two-Way Combiners
Model 600A400 U5 is a comparator that monitors the output of U1 and generates a fault signal if the drain current varies outside normal operating conditions. It also monitors the module temperature via a thermistor (R31) and generates a fault signal if the module heatsink exceeds approximately 80 3.2.6... -
Page 50: Control System
Model 600A400 CONTROL SYSTEM 3.4.1 A18 Control/Fault Board (Schematic #10042218) The A12 Control/Fault board consists of one 16-bit microcontrollers and several other ICs that monitor and indicate the status of the amplifier. Power is supplied using only a single 5-volt power supply. The board... -
Page 51: Maintenance
4. MAINTENANCE GENERAL MAINTENANCE INFORMATION The Model 600A400 requires very little maintenance since it is a relatively simple instrument. It is built with etched circuit wiring and solid state devices that will ensure long, trouble free life. However, should trouble occur special care must be taken in servicing to avoid damage to the devices or the etched circuit board. -
Page 52: Troubleshooting
LDMOS and other ESD-sensitive devices. Troubleshooting the Model 600A400 in a logical manner can speed the solution to a problem. The settings of potentiometers (pots), capacitors (caps), or other variables should not be disturbed until other problems have been eliminated. -
Page 53: The Unit Cannot Be Operated Remotely
RF energy when these doors are opened. NOTE: The Model 600A400 is shipped with a mating connector, which has a jumper between Pins 1 and 8, installed in the rear panel interlock connector. The unit will not operate unless the interlock circuit is closed. -
Page 54: Amplifier Faults (Schematic Diagram Nos. 10045748, 10039874)
Model 600A400 4.3.5 Amplifier Faults (Schematic Diagram Nos. 10045748, 10039874) 1. The fault output of the A2, A6 through A12 modules is sensed on A18, J5, pins 9 through 17. A fault will measure ≤0.1V. Under normal operation, these lines will measure 4.9V ±.2V. -
Page 55: Low Or No Power Output (Rf Test) (Schematic Diagram Nos. 10045748 And 10039874)
1. The Model 600A400’s typical gain response at -20 dBm input and 0 dBm input is shown in Figure 4-1 and Figure 4-2. The actual gain may vary considerably from that shown in Figure 4-1 but should be ≥... -
Page 56: Typical A Module Response
Model 600A400 Figure 4-3. Typical A Module Response 2. The typical response for the A1 Pre-Amplifier (at maximum gain setting) is shown in Figure 4-4. Figure 4-4. Typical A1 Pre-Amplifier Response Rev A... - Page 57 These modules are not field-repairable and should never be opened outside of AR’s Microelectronics Lab. The modules in these product lines have a security label on two sides of the modules between the housing and lid/cover. If the security label is removed and or cut, the warranty of the module will be voided.
