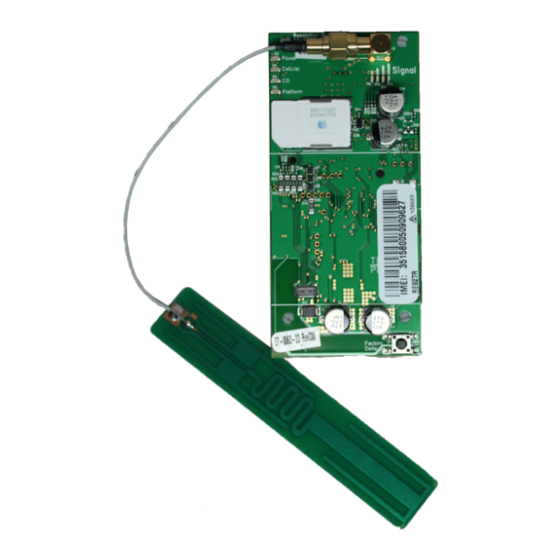

RE927RPA GSM Expansion card
network connectivity to the panel. It can be used as either the
primary or backup connection method.
Features
• Connects panel to the GSM cellular network
• Provides primary or backup network connection
• 5-year warranty
Installation
1. Set up an account with your interactive
services provider.
2. Install the communicator into the panel
using the steps below:
• Disarm and then power down the
panel
• Plug the Expansion Card into Slot
1 on the panel
• Place Antenna as shown at the
top of the panel
• Power up the panel
• Installation is complete
Interactive control and viewing
services platform.
Verify proper installation and operation using the panel's installation manual.
RE927RPA GSM Expansion Card
Connect+
Encrypted
™
is a cellular device that provides
Antenna
of the system can be done through the interactive
Expansion Card
I
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alula RE927RPA
Summary of Contents for Alula RE927RPA
- Page 1 RE927RPA GSM Expansion Card Connect+ Encrypted ™ RE927RPA GSM Expansion card is a cellular device that provides network connectivity to the panel. It can be used as either the primary or backup connection method. Features • Connects panel to the GSM cellular network •...
- Page 2 Reset the Expansion Card by pressing the factory default switch until the expansion card’s LEDs flash once (roughly 5 seconds). This is normally never required. Factory default the Expansion Card pressing the factory default switch until the expansion card’s LEDs flash twice (roughly 10 seconds).
- Page 3 Antenna Options Internal antenna • Good performance • Compact solution Wall drop antenna - RE034-0 (1-foot cable) and RE-034 (10-foot cable) • Better performance • Antenna can be hidden in the wall or mounted in a better location • In this configuration, connect the wall drop antenna to the Antenna 1 port, as shown below.
- Page 4 (2) L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible Alula and Connect+ are trademarks owned by Alula Holdings, LLC. d’en compromettre le fonctionnement. AT&T is a trademark of AT&T Intellectual Property II, L.P.
