Buckingham full body harnesses are manufactured and rated to comply with the requirements of the applicable ANSI Z359
and ASTM F887 (i.e. electric arc performance) standards. ANSI Z359.11 recognizes the use of full body harnesses only within
a user weight range of 130 - 310 pounds. Buckingham, outside of the ANSI Z359.11 requirements, rates its full body harness
for use by individuals weighing up to 420 pounds (fully equipped) only when used with an equivalently rated energy absorbing
lanyard or personal fall limiter / accessories.
PN 66772 Series meets or exceeds requirements of ANSI Z359.11
66772K6 Series meets or exceeds requirements of ANSI Z359.11 & ASTM F887 (i.e. electric arc performance).

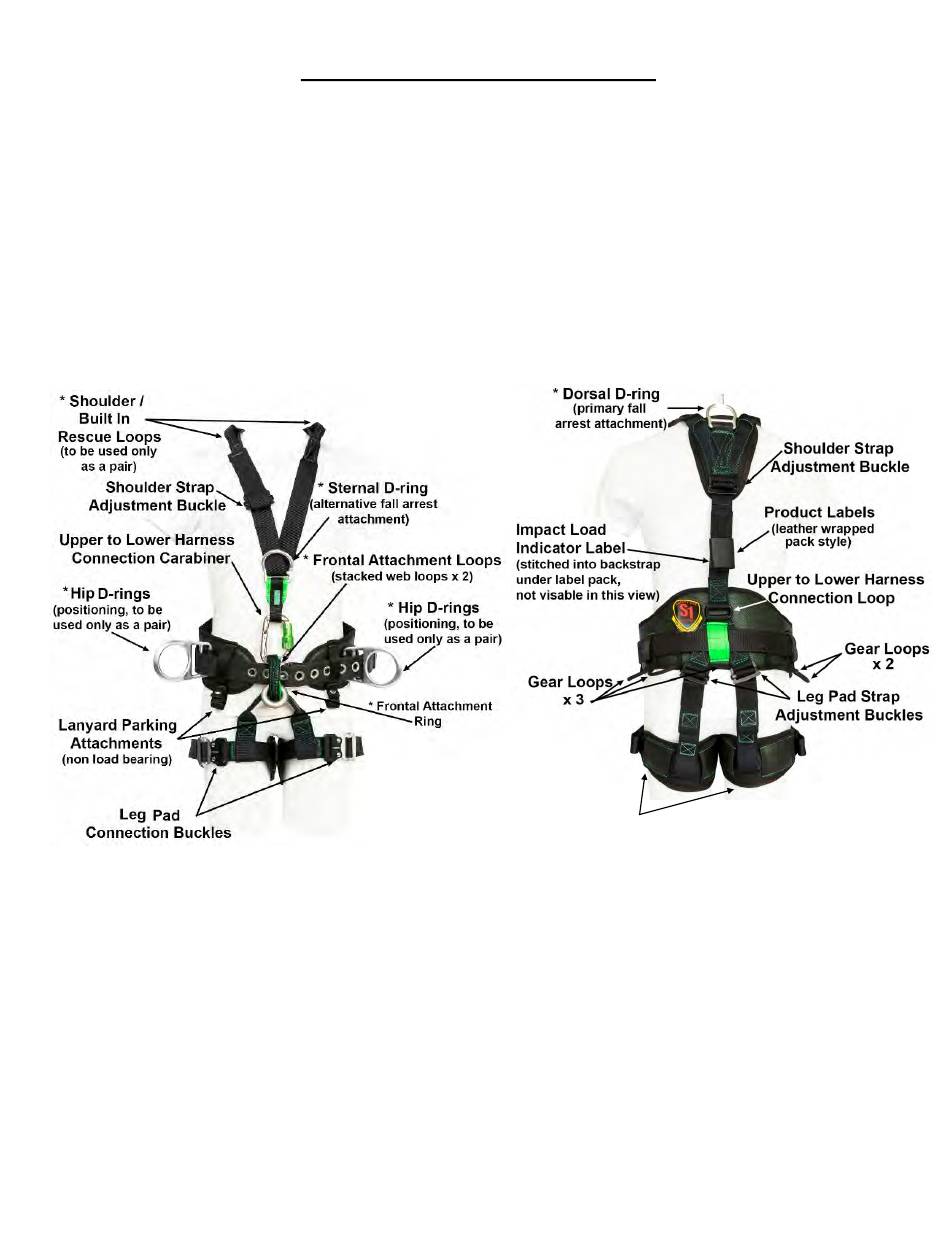

The S1 Safety harness was designed specifically in-house by Rope Access Professionals to meet their
requirements. The photos below show key features of this harness. Note: Some harnesses may not have all the
features illustrated below or some features (hardware / material color) may vary.
FRONT VIEW
* See Annex A sections 10 -16 of this instruction for additional information concerning the location and use of
various attachments that may be provided on this Harness.
Read and understand all labels and instructions attached to and packed with your harness.
Straightening Your Harness:
Pick up your harness by the Dorsal D-ring and shake it to allow the straps to fall free of each other.
Disconnect the Harness Connection Carabiner from the upper to lower section of the harness and then disconnect the leg
strap buckles. Hold the harness with one shoulder strap in each hand to check for twisted straps. Straighten any twisted
straps so that they hang freely.
S1HarnessInst.Doc_113017
PN 230412
BUCKINGHAM MFG.
S1 SAFETY HARNESS INSTRUCTIONS
REAR VIEW
Leg Strap Pads
Page 1 of 12
Advertisement
Related Manuals for BUCKINGHAM MFG S1
Summary of Contents for BUCKINGHAM MFG S1
- Page 1 66772K6 Series meets or exceeds requirements of ANSI Z359.11 & ASTM F887 (i.e. electric arc performance). The S1 Safety harness was designed specifically in-house by Rope Access Professionals to meet their requirements. The photos below show key features of this harness. Note: Some harnesses may not have all the features illustrated below or some features (hardware / material color) may vary.
- Page 2 FIGURE “A” Donning the Harness: Waist Belt Connection: Disconnect the waist strap buckle and lay the harness on the ground. Spread the harness out so that an opening is formed between the Leg Pads and the Bridge Section as shown and ensure no straps are twisted (FIGURE “A”). ...
- Page 3 Upper to Lower Harness Connection: The upper harness section with Connector Carabiner will be hanging down behind you. Grasp the Connector Carabiner and slide the shoulder straps over your head. When properly positioned, your head will be between the shoulder straps within an area bounded by the Dorsal D-ring on the back and the Sternal D-ring on the front.
- Page 4 If the pawl still does not freely rotate, you should contact Buckingham Mfg. at the telephone number outlined below and request a Returned Goods Authorization Number for immediate return of your harness or Arborists tree saddle for our inspection and/or buckle replacement.
- Page 5 Full Body Harnesses (FBH) Manufacturer’s instructions shall be provided to the user of this product. If additional copy is needed, contact Buckingham Mfg. Co. Read carefully, understand and heed these and all instructions, warnings and cautions as well as the ANSI Z359 “General Requirements and Information”...
- Page 6 Only Buckingham Mfg. Co. or those people authorized in writing by Buckingham Mfg. Co. may make repairs to this equipment. Equipment subjected to impact loading must be immediately removed from service, destroyed and discarded.
- Page 7 Supervisor, Safety Director or contact Buckingham Mfg. for clarification. Failure to carefully and completely inspect your equipment could result in serious injury or death.
- Page 8 Storage Storage areas should be clean, dry and free of exposure to corrosive elements, fumes, etc. To aid in protecting the hardware from rusting, it is recommended that the hardware be treated with WD-40 Multi-Use Product or Hilco Lube lubricant cleaner at regular intervals. Note: Also reference the used Inspection, Maintenance and Storage of Equipment Criteria of Annex A.
- Page 9 FULL BODY HARNESS LABELS (not to scale) A- ANSI LABEL B- INSPECTION LABEL C- STANDARD HARNESS LABEL D- STANDARD HARNESS LABEL E- STANDARD HARNESS LABEL F- STANDARD HARNESS LABEL / ELECTRIC ARC TEST G- CSA PRODUCT LABEL H- ELECTRIC ARC TEST / CSA PRODUCT LABEL CSA HARNESS LABEL Impact Load Indicator Label anyard Parking Attachment Element Label...
- Page 10 FRONT REAR Annex A Note: This information from the Z359.11 document is required to be included in the instruction manual for the end user: ANSI/ASSE Z359 Requirements for Proper Use and Maintenance of Full Body Harnesses. These are general requirements and information provided by ANSI/ASSE Z359, the Manufacturer of this equipment may impose more stringent restrictions on the use of the products they manufacture, see the Manufacturer’s instructions.) 1.
- Page 11 10. Dorsal – The dorsal attachment element shall be used as the primary fall arrest attachment, unless the application allows the use of an alternate attachment. The dorsal attachment may also be used for travel restraint or rescue. When supported by the dorsal attachment during a fall, the design of the Full Body Harness shall direct load through the shoulder straps supporting the user, and around the thighs.
- Page 12 BUCKINGHAM MFG. CO., INC. BINGHAMTON, NY 1-800-937-2825 www.buckinghammfg.com Information contained in these written instructions supersedes all other information (written, audio, video etc.) produced by Buckingham Mfg. prior to the revision date of this document. S1HarnessInst.Doc_113017 PN 230412 Page 12 of 12...
