BUCKINGHAM MFG BuckSqueeze 483 Series Instructions & Warnings

DESCRIPTION:
 Model 483 Series – Wood Pole Fall Restriction Device (WPFRD) for Distribution Poles
(Model 483D for distribution poles up to a 50" circumference).
 Model 484 Series – Wood Pole Fall Restriction Device (WPFRD) for Transmission Poles
(Model 484T for transmission poles up to a 90" circumference).
The BuckSqueeze is Buckingham's Wood Pole Fall Restriction Device featuring enhanced work positioning capabilities.
With cutouts being a leading cause of injuries to line technicians, Buckingham Mfg. Co., with the input of actual line
technicians, has developed the Model 483 and 484 series wood pole fall restriction devices that squeeze the pole in the
event of a cutout or fall while in the elevated position. The BuckSqueeze, cinches tightly around the pole, using the users
weight, to minimize fall distance in the event of a cutout or slip while ascending or descending a pole. Fall distance may vary
based upon adjustment, pole condition and the environment in which this product is being used. When adjusted and used in
accordance to the Instructions outlined below, fall distance will not exceed that permitted for the Type 'AB' unit and defined
by the ASTM F887 and CSA Z259.14 standards (round poles only). (NOTE: Units manufactured prior to 2/10 and without
the Cleat and Serrated Rotosnap require the use of the BuckTooth or BuckWheel to comply with ice pole referenced fall
distances.) Examples of reasons why falls from poles, which result in serious injury or fatality, occur are: user error, climbing
around obstructions, fatigue, electrocution, wood rot, previous gaff holes, a crack in the pole or a gaff hitting a foreign object
like a nail or screw. The BuckSqueeze if used properly will greatly reduce fall distance that can occur from these hazards.

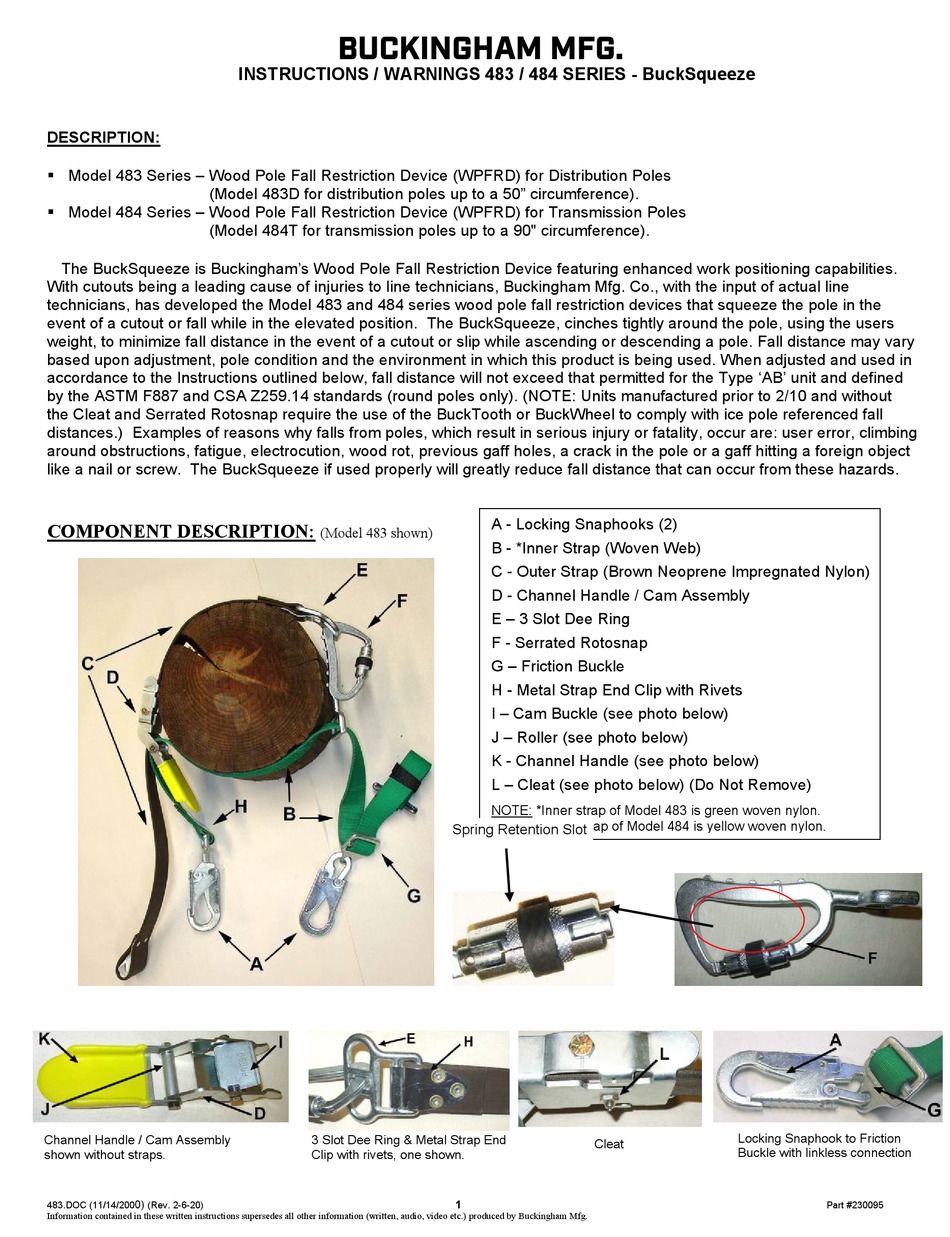

COMPONENT DESCRIPTION:
Channel Handle / Cam Assembly
shown without straps.
0)
483.DOC (11/14/200 (Rev. 2-6-20)
Information contained in these written instructions supersedes all other information (written, audio, video etc.) produced by Buckingham Mfg.
BUCKINGHAM MFG.
INSTRUCTIONS / WARNINGS 483 / 484 SERIES - BuckSqueeze
(Model 483 shown)
3 Slot Dee Ring & Metal Strap End
Clip with rivets, one shown.
A - Locking Snaphooks (2)
B - *Inner Strap (Woven Web)
C - Outer Strap (Brown Neoprene Impregnated Nylon)
D - Channel Handle / Cam Assembly
E – 3 Slot Dee Ring
F - Serrated Rotosnap
G – Friction Buckle
H - Metal Strap End Clip with Rivets
I – Cam Buckle (see photo below)
J – Roller (see photo below)
K - Channel Handle (see photo below)
L – Cleat (see photo below) (Do Not Remove)
NOTE: *Inner strap of Model 483 is green woven nylon.
Inner strap of Model 484 is yellow woven nylon.
Spring Retention Slot
Cleat
1
Locking Snaphook to Friction
Buckle with linkless connection
Part #230095
